Alignment; Application Overview - Cedes GridScan/Pro Installations- Und Bedienungsanleitung

GridScan/Pro
Rx Tx
Tx
Rx
5.3

Alignment

≤ 5˚
Tx
< 3 m
Reflective surface
Tx
6.

Application overview

Connection cable
Receiver edge
Door
controller

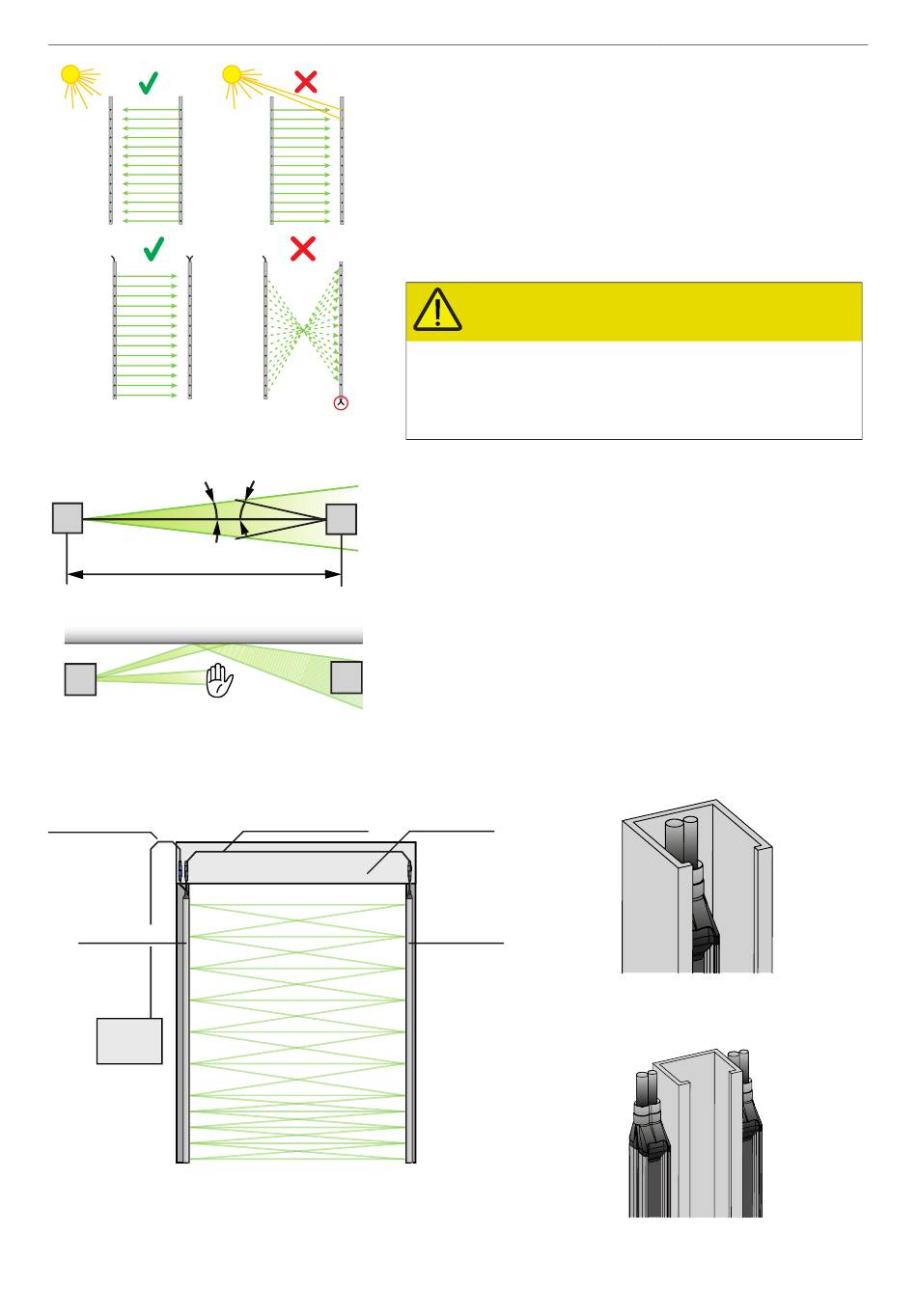

Figure 6: GridScan/Pro application (overview)
6
All manuals and user guides at all-guides.com
 Although the GridScan/Pro is insensitive to direct sunlight,
Tx Rx
 Avoid interference from blinking lights or infrared light sources
 Do not install the GridScan/Pro in places where the emitter and
Tx  Make sure to place the connection plugs for both the emitter and
Rx
The optical axis of the emitter (Tx) and the receiver edge (Rx) need to
≤ 5˚
be aligned towards each other to ensure the light curtain functions
reliably.
Rx
Reflective surfaces near to or parallel to the safeguarded area can
cause reflections and interfere with the GridScan/Pro's functions.
Keep a reasonable distance between the sensor edges and any
reflective surface.
Rx
A self calibration on each optical beam is implemented. At the
power- up the ideal emitting strength will be detected and used. To
reduce interruption caused of dust the system checks the emitting
power and adapt a new higher or lower strength if necessary.
Synchronization cable
avoid all unnecessary exposure if possible, most especially to
the receiver.
such as photo cells or other light curtains.
receiver edges are directly exposed to light sources such as FL
tubes or energy saving lamps.
receiver at the same end.
CAUTION
Damage to the eye
Although the GridScan/Pro does not emit dangerous
amounts of infrared light, long exposure to intense infrared
light sources can result in damage to the eyes.
 Never look directly into the active infrared emitter from
a close distance.
Door operator
Emitter edge
Figure 7:
Figure 8:
English
GridScan/Pro with door
blanking (standard type)
GridScan/Pro with static
mounting (ST type)
© CEDES | V 1.0
