PACKING LIST

• Heater
• Remote control
• Instruction manual
• Accessories pack 1 set:
− 2x support
− 8x metal screw for supports

ASSEMBLY INSTRUCTION

Unpack your package and find the heater together with the wall mounting accessories pack.

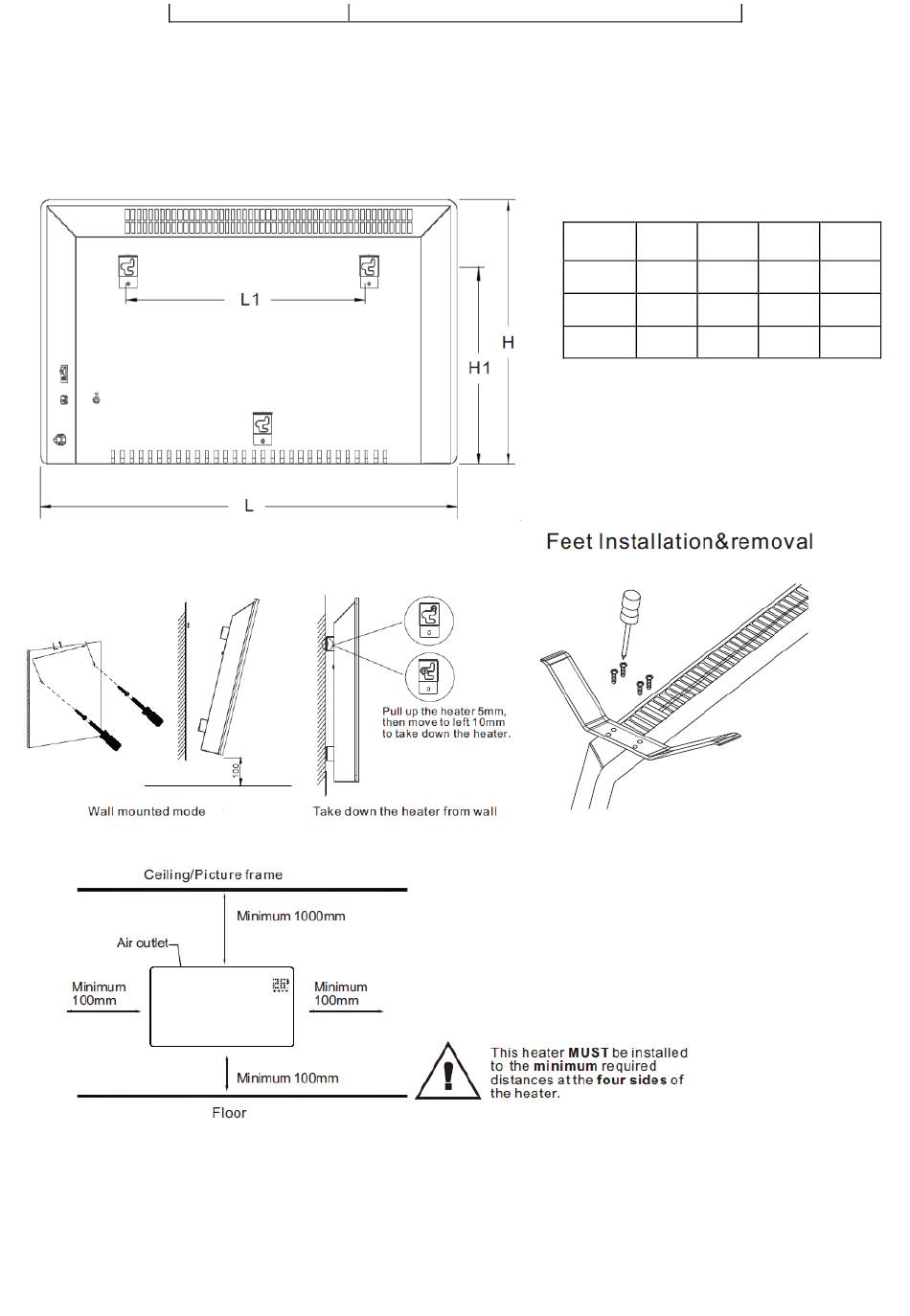

1. Mark the positions of the four holes to be drilled on the wall, and Drill the holes with the drill bit. Make sure the distance between each holes
is same as the round holes on the brackets at back of the heater.
2. Insert the plastic rails fitting into the holes.
3. Insert the metal screws into the plastic rails.
4. Lift the heater and aim the round holes on the brackets at back of the heater to the screws on the wall and slide the heater 10mm to the
right
5. Make sure the distance between the bottom of the heater and the floor is no less than 10cm when the heater is installed
220-240V~50Hz
Model L mm H mm
90-093 515 450
90-094 675 450
90-095 835 450
L1 H1
mm mm
218 344
378 344
538 344
