8.5 Installing the depressor (fig. 6, 7)
NOTE:
Before assembling the depressor (24), the saw blade
pre-installed at the factory (22) must be removed (see
8.1.3).
1. Remove the saw blade (22) as described in 8.1.3.
2. Remove the depressor (24) from the saw blade
guard (5) by loosening the screw (25) completely
(see fig. 6).
3. Insert the holder (4) into the opening (see fig. 7).
4. Fasten the holder (4) with the knurled screw (3).
5. Install the depressor (24). Insert the screw (25) into
the holder (4) and fasten it.
6. Insert the saw blade (22) again as described in
8.1.3.
7. Ensure that the depressor (24) does not contact
the saw blade (22).
The depressor (24) must always be adjusted accord-
ing to the workpiece height. However, the workpiece
should not be clamped, but should rather be able to
move freely.
The depressor (24) is used to lock the workpiece so
that it cannot swing upwards, which would destroy the
saw blade (22).
8.6 Chip extraction (fig. 13)
ATTENTION: Only operate the device with an extrac-
tion system.
Connect a suitable chip extraction system (not included
in the scope of delivery) to the suction connection (15)
(see fig. 13, sample figure).
ATTENTION: Check and clean the suction channels at
regular intervals.
9.

Operation

9.1 General information
• The saw does not cut wood automatically. Rather,
the operator must push and guide the wood toward
the moving saw blade.
• The teeth only cut the wood on the downstroke.
• The wood must be slowly pushed and guided toward
the saw blade, since the teeth of the blade are very
small.
• Those who want to use the saw must go through the
process of learning how to do so. During this time, a
few blades will invariably break.
32 | GB
• When cutting thicker wood, special attention must
be paid not to bend or twist the saw blade.
• Handling the saw blade properly increases its ser-
vice life.
9.2 On/off switch (16)
• Switching on: Press the "I" button.
• Switching off: Press the "0" button.
ATTENTION
The machine is equipped with a safety switch against
reactivation if the voltage drops.
If the scroll saw is switched on and the power supply
in the mains is interrupted, the scroll saw remains
switched off, even if the power supply is re-established.
Press the "I" button to switch it on.
9.3 Work lamp operation (fig. 4)
1. Switch the machine on as described in 9.2.
2. The work lamp (20) may not be switched on/and off
with the work lamp on/off switch (21).
9.4 Stroke rate controller (fig. 2)
The stroke rate controller (18) allows you to set the
stroke rate according to the material to be cut. In case
of soft material, we recommend high stroke rates, while
strokes rates should be kept low for hard material. Turn
the stroke rate controller (18) clockwise to increase the
stroke rate. Turning anti-clockwise lowers the stroke
rate.

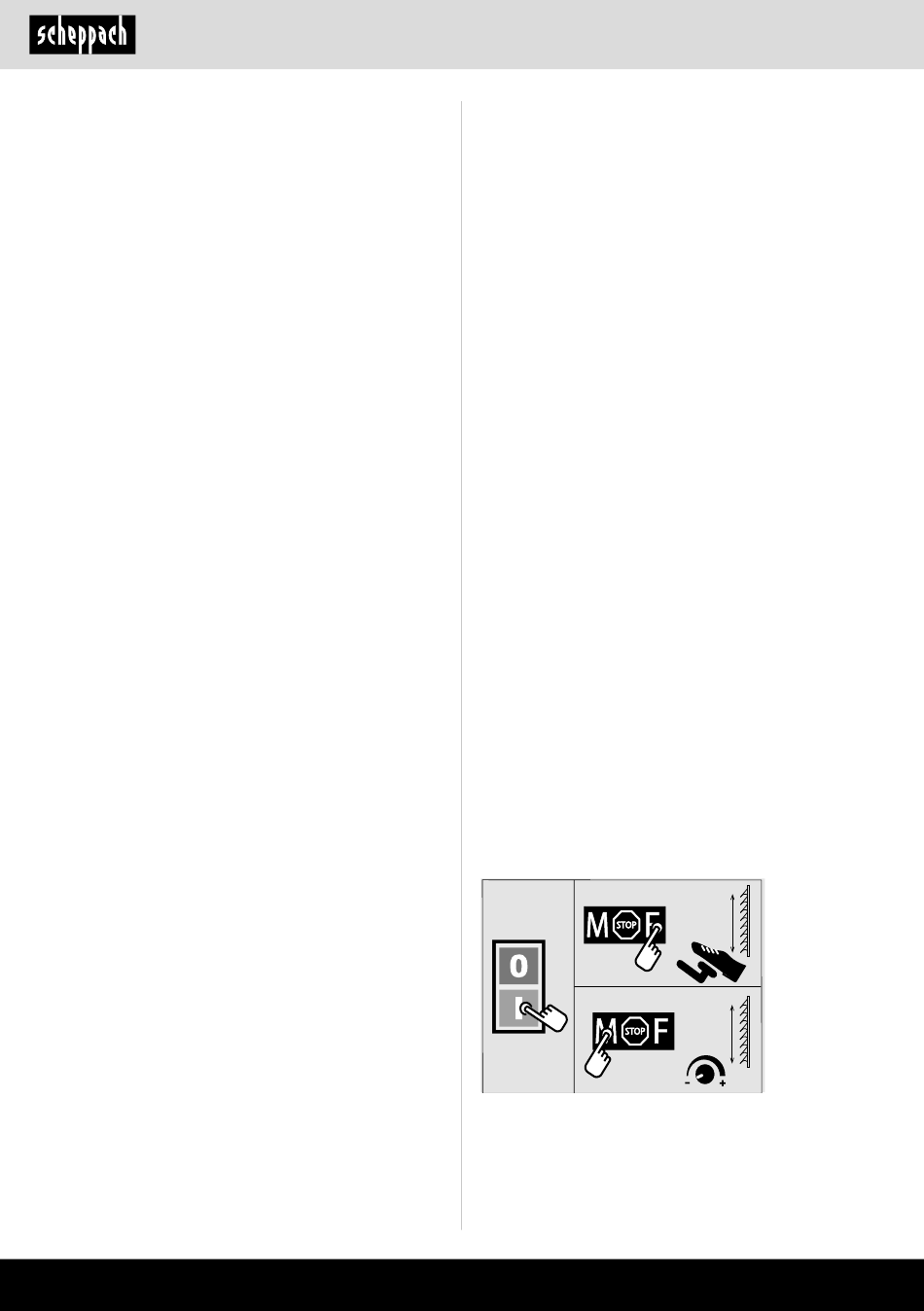

9.5 Operating modes (fig. 1, 2)
The scroll saw is able to be operated manually or via
the foot pedal.
9.5.1 Manual controls
1. Ensure that the machine is switched on.
2. Set the operating mode selection switch (17) to the
"M" position to operate the saw manually.
