Delivery
Delivery

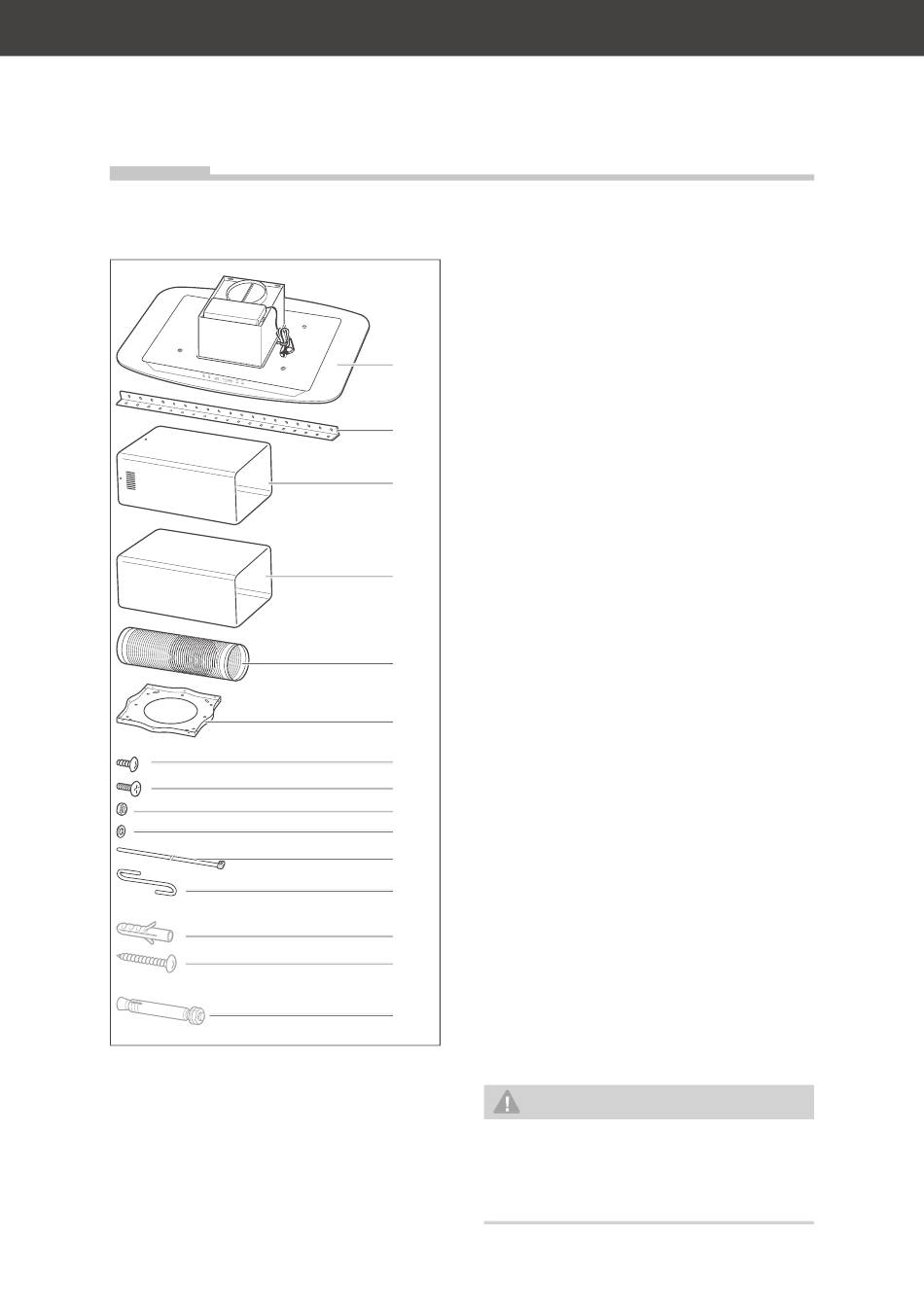

Package contents
(1) Exhaust hood with glass hood
(2) 8 mounting rails
(3) Flue screen, upper section
(4) Flue screen, lower section
(5) Exhaust air hose
(6) Base plate for ceiling mounting
(7) 4 screws 8 mm, ø 4 mm
(8) 42 screws 10 mm, ø 4 mm
(9) 26 nuts M4
(10) 26 washers M4
(11) 1 cable tie
(12) Mounting hook (for securing the raised
flue screen 4 into a mounting rail 2, e.g.
(1)
during cleaning / maintenance work)
(13) 2 plastic check valves
(without illustration)
(2)
Items not included in the package contents
(3)
are:
– the 12 wall plugs (14) and 12 screws (15) or
12 heavy-duty anchors (16), as their type
and dimensions will vary depending on the
characteristics of the ceiling. Please have a
(4)
specialist advise you as to which ones you
need (see "Materials required for assembly"
on page EN-15).
– an activated charcoal filter. This is only re-
(5)
quired for recirculation operation.
To order accessories, see "Service" on
page EN-21.
(6)
(7)
Check the delivery
(8)
(9)
1. Unpack the appliance.
(10)
2. Leave the blue protective films on the met-
(11)
al surfaces.
3. Remove all parts of the packaging, plastic
(12)
profiles, tape and foam padding.
4. Check that the delivery is complete.
(14)
5. Check whether the appliance was dam-
(15)
aged during transit.
6. If the delivery is incomplete or the appli-
ance has been damaged during transport,
(16)
please contact our Service Centre (see
page EN-21).
WARNING!
Risk of electric shock!
Touching live parts may result in severe
injury or death.
■ Never use a damaged appliance.
