6

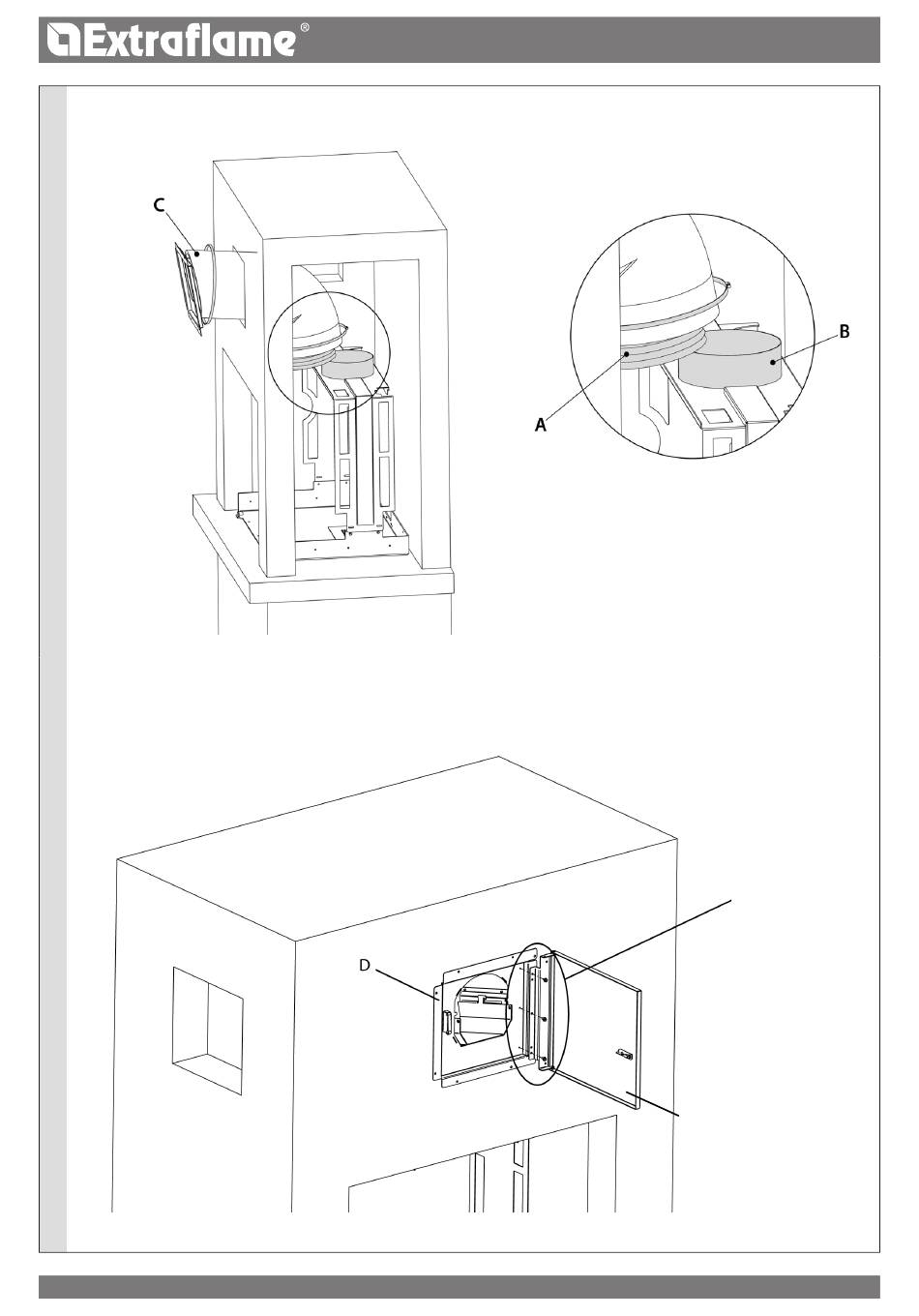

Thread the elements assembled in the previous step (figure 5) through the opening intended for the loading kit.
Place the kit (C) against the lower wall of the housing hole. Secure the front door (E) using the 3 screws supplied in the kit.
Then secure the front panel (D) of the kit using the 8 screws (not supplied). Use the existing holes for fastening.
Insert the flexible tube (A) on the flange attached to the structure (B).
ONLY FOR RECOMMENDED INSTALLATION
20 20
All manuals and user guides at all-guides.com
ENGLISH
3 screws supplied
E
