ABW 2//AWB 1 – Automatic white balance
This balance is required if the object to be monitored is to be depicted in the neutral ground colour.
Automatic control
Monitoring mostly at daylight
Monitoring mostly at artificial light
8.
Audio output: Connect the audio cinch connector with your monitor/TV.
Operation
After the connection of the video and audio output, the voltage supply and the mounting of the lens, the camera is now ready for use.
Plug the power supply into the mains socket.
Switch your TV set or the monitor on and select the input to which the camera is connected (such as AV input on the TV set).
The picture of the camera will appear on the screen. In the unlikely event that no picture appears on the screen or another malfunction occurs, immediately switch
off the operating voltage and the TV set / monitor, and check once again by using the "Troubleshooting" check list in these instructions.

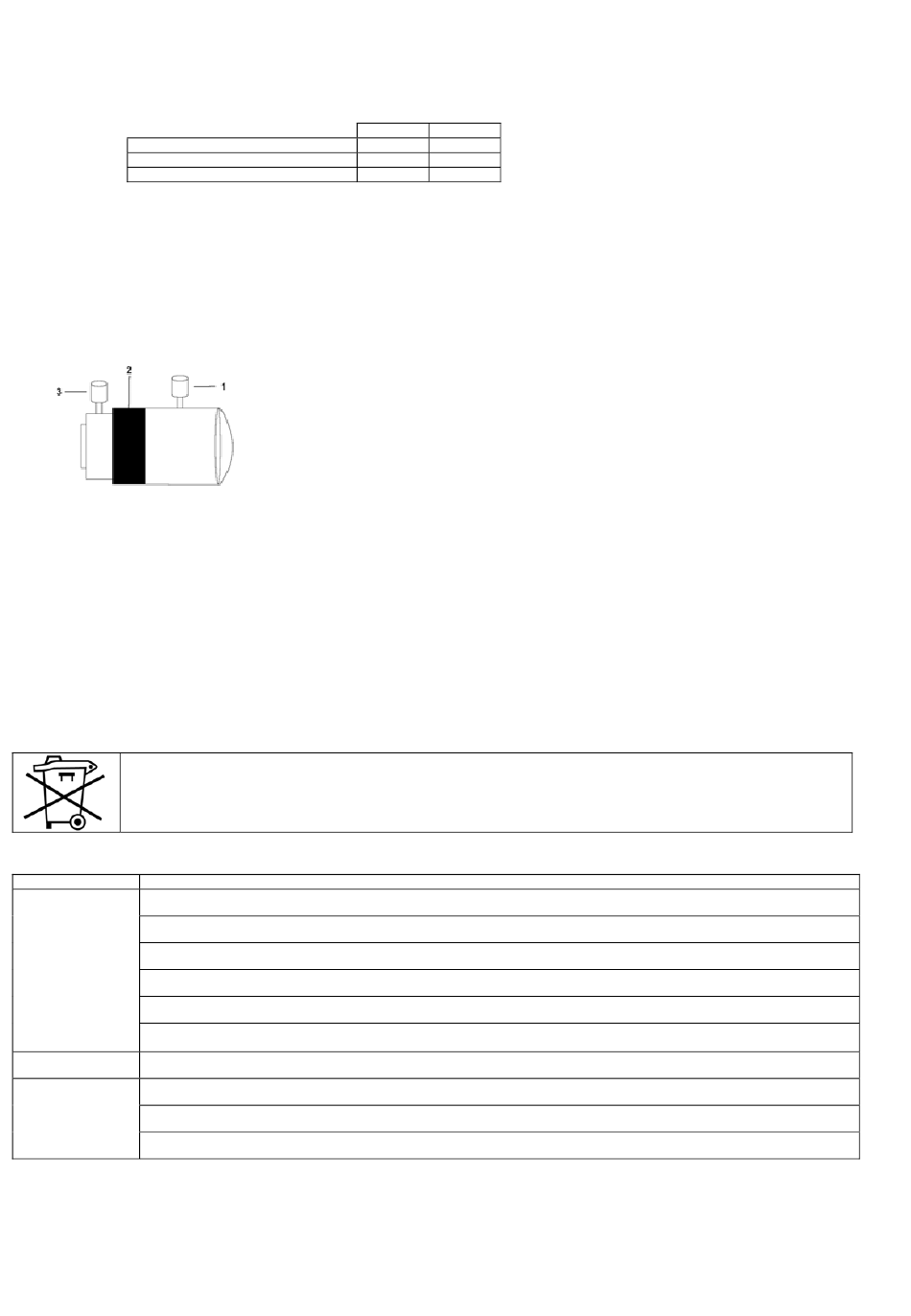

Setting the lens
In order to set the lens, loosen the locking screws 1 and 3 and proceed as follows:
Maintenance
Check the technical safety of the camera and its power supply source for damage to the connection cables or the housing, etc., at regular intervals.
If safe operation can no longer be assumed, the camera and/or the power supply unit have to be put out of service and precautions have to be taken to avoid
unintentional use. Disconnect the power plug from the mains socket!
Reasons to assume that safe operation is no longer possible include:
-
the camera or the connection cables of power supply units are visibly damaged
-
the camera or the connected power supply units no longer operate
-
after storage for long periods under unfavourable conditions
-
after considerable stress during transport
It is imperative that these safety instructions be followed before the camera or a connected device is cleaned or maintained.
Live components may be exposed when covers are opened or components are removed.
Before cleaning or servicing, the device has to be disconnected from all voltage sources.
Capacitors in the device may still be charged, even if it has been disconnected from all voltage sources.
Repair work always has to be carried out by qualified experts.
GB
Environmental protection information
When no longer in use, this product may not be deposited in the normal household waste but should be brought to a collection point for
the recycling of electrical and electronic appliances. A symbol on the product, the operating instructions or the packaging draws
attention to this. The materials are recyclable as marked. By re-use, recycling or another form of using old appliances you are making
an important contribution towards the protection of the environment. Please ask your local authorities for the appropriate disposal point.
Troubleshooting - Do not fail to observe the safety instructions!
Problem
Solution
Is the low-voltage connector of the power supply correctly plugged into the camera?
Has the TV set / monitor been switched on and is it operational?
Is the operational status indicator lighting?
No picture
Has the camera been connected to the right AV input of the TV set or to the right input of the monitor?
Is there any mains voltage?
Has the camera been connected up to the power supply unit and the TV set / monitor as described above in the chapter "Connecting
the device"?
No sound
Is the audio cinch connector connected with the correct input of the TV/monitor?
Is the lens mounted correctly?
Bad picture
Check the function switch and switch if necessary.
reproduction
Are lens and definition set correctly?
Technical specifications:
TV system:
PAL
All manuals and user guides at all-guides.com
AWB 1
AWB 2
OFF
OFF
OFF
ON
ON
OFF
1.
Zoom: 3.5 to 8 mm +/- 5 %
2.
Aperture setting for adaptation of the background illumination
3.
Image definition/focus
After making the adjustments, tighten the set screws 1 and 3 again.
