3. Assembly

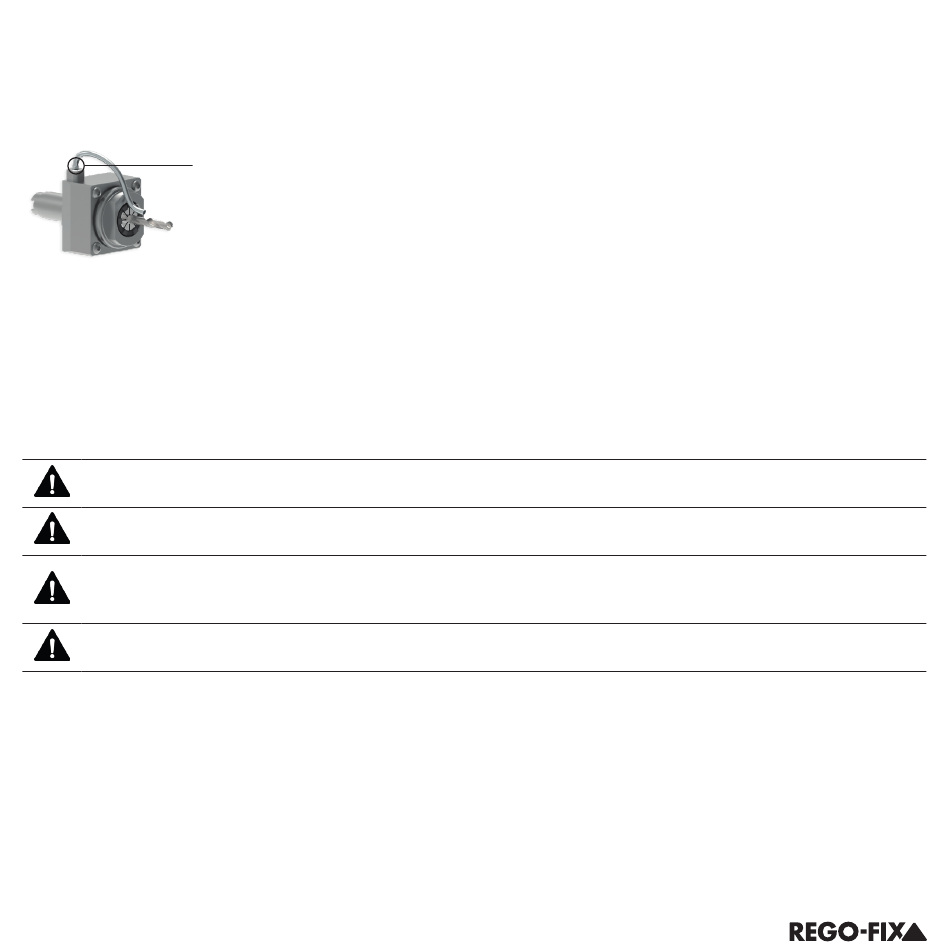

3.1 Preparing the driven tool with standard fittings (Set is included)
1. Remove the old coolant pipe or fitting.
2. Screw in the supplied fitting (1/8" BSP straight or 90° elbow).
For driven tools with or other thread dimensions see optional accessories in Chapter 7.
3. Units that have an access hole into the gearing inside the must be sealed with use of the reCool
System.
Stop screws with coolant through bores must be replaced!
If the stop screw is not sealed nor replaced, there is danger that the coolant may get inside the gears which may
result in damages of the driven tool
For best cooling do not exploit the clamping range of the collet. E.g. clamp a Ø 6mm tool shank in Ø 6.0 – 5.0 mm
collet.
Do not use metallic sealed ER-DM collets with reCool, because the coolant cannot reach the tool.
