Dimensions - Rego-Fix Recool Wartungs- Und Betriebsanleitung

Never let the reCool
When starting the machine, make sure that coolant flows out of the tool or the coolant flush disk before rotating
the reCool System.
®
A coolant pressure below minimum may lead to inadequate cooling/ lubrication and therefore could damage the
reCool bearings.
®
Inadequate coolant pressure results in considerable impairment in cooling the tool and chip removal.

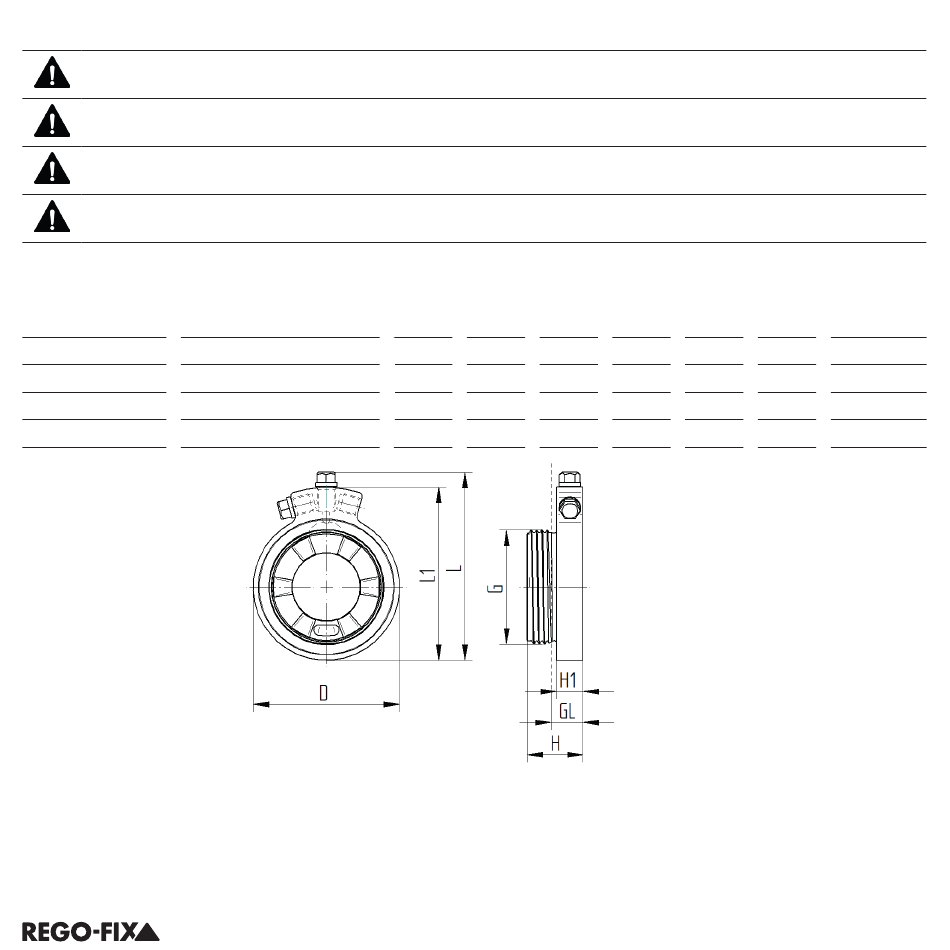

2.3 Dimensions

Type
RCR / ERAX 16
RCR / ERAX 20
RCR / ERAX 25
RCR / ERAX 32
system run dry.
®
Clamping range [mm]
2,50 – 10,00
3,00 – 13,00
3,00 – 16,00
3,00 – 20,00
d L L1
34 46 41.5
37.5 49.5 45
41 53 48.5
49 61 56.5
H H1 GL
14.5 7.6 9
15.5 7.6 9
15. 7.6 9
16.9 7.6 9
H
M24 x 1
M28 x 1.5
M32 x 1.5
M40 x 1.5
23
