Vario RC-Modul Bedienungsanleitung Seite 15

5.
Displaying the DIN module output statuses
RC Module
Statuses of measured parameters and relay outputs are displayed on a 4-line screen.
VArioRC
AerBus II
Version 12
Connecting
0
Filtration
Dosing
Temp 22°C
Light.014
Att3 000
IMPORTANT: The Dosing menu will only be available, when the DIN module is configured to this function. Otherwise, the Attraction 2 will
be available on output R2 of the DIN module (instead of Dosing ON/OFF).
Note:
The main screen periodically switches between the statuses of Attraction 1-2 and Attraction 3-4 (only when the DIN LIGHTS
module is attached, otherwise Attractions 3+4 are not available).
˄
When the roof symbol „
When „P" is displayed with an attraction or lights, this function is controlled by programmed scenes (scenarios). Refer to
DIN/WIFI manuals.
6.
Unit controls and configuration menu
6.1.
RC module controls

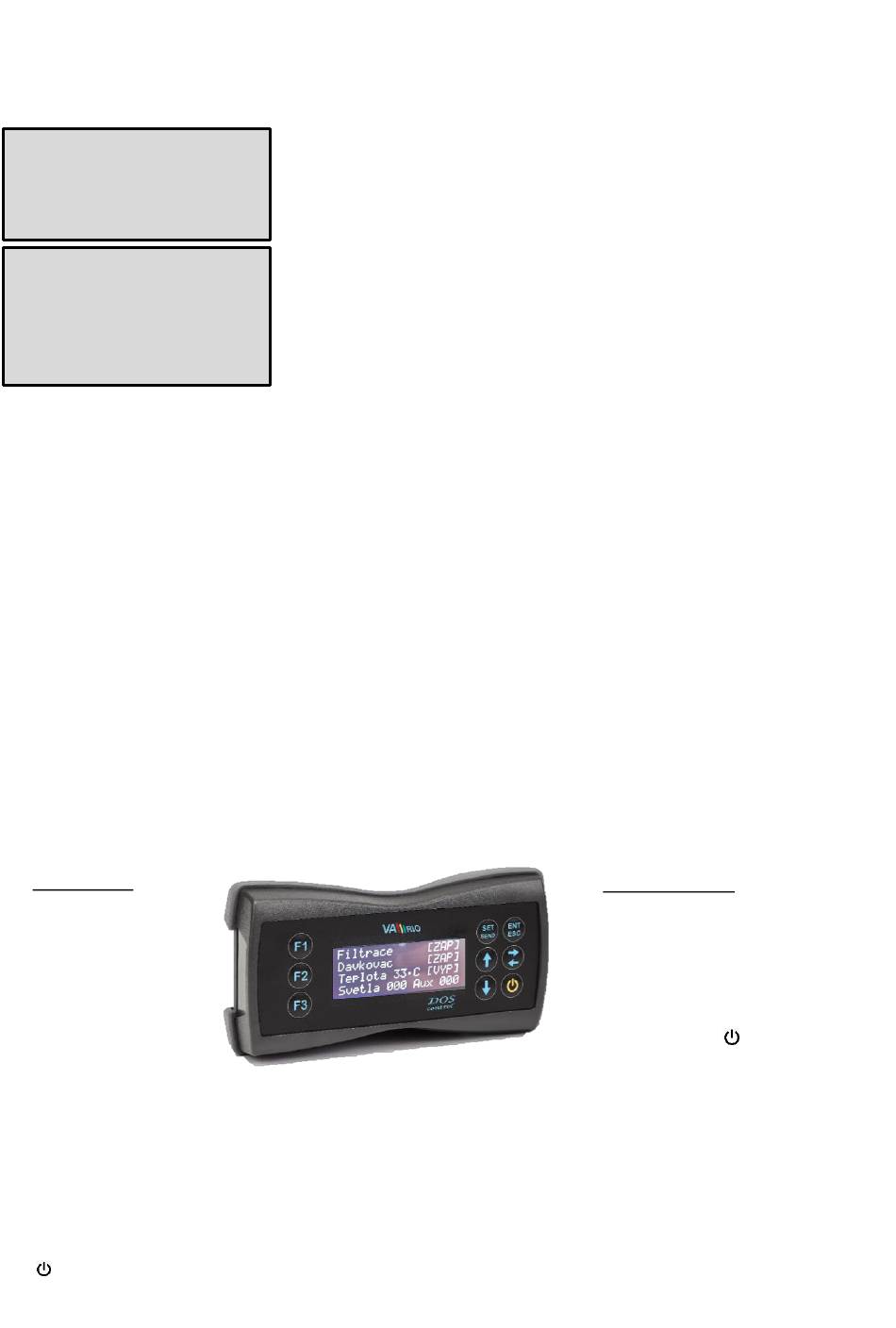

The DIN module can be controlled by the RC remote module (using a radio frequency signal). An overview
of all control buttons including configuration commands is listed below. The F1 / F2 / F3 buttons are pre-
programmed for easy access to Lighting / Attraction / Filtration functions.
Quick access
F1
F2
F3
F1 - By default Lights (ON/Timer 15-240 min / 000 = OFF)
F2 - By default Attraction 1 (Timer 15-120 min / 000 = OFF)
- By default Filtration (AUTO / CL24 "ON with chlorine shock (24 hours)" / manual ON / OFF
F3
SET/SEND - Parameter change / Save changes = send to DIN module
ENT/ESC - Confirm choice / Enter menu / Go back to higher menu
ꓥ - Move up in menu / Increase parameter / Time set – hours
<> - Move to next parameter / Heating - cooling mode / Switch to dosing unit / Paging
ꓦ
- Activate item / Move down in menu / Decrease parameter / Time set – minutes
- Sleep mode ON / Wake up / Quick access edit
Default screen after RC start-up (after pressing the "ON" button).
"Connecting" – a connection to the DIN module or dosing station is
being initialized.
[ ON] Status [ON] - relay contact closed / output active
Status [OFF] - relay contact closed / output active
[ ON]
Status 22°C - actual water temperature / heating [ON]
[ ON]
Status ??°C - filtration is not active (timer OFF), waiting for filtration ON
Att1 015
Status Light. "014" - relay contact closed / lights ON with 14 mins remaining
Att4 015
Status Att1 "015" - relay contact closed /output ON with 15 mins remaining
" is displayed, the function is deactivated by closed pool cover. Refer to DIN/WIFI module manuals.
Control buttons:
SET ENT
SEND ESC
ꓥ
<>
V
3
