1.

Safety instructions

Read this user manual before installation and unit activation. Should you need any explanation or should you have any
doubts, do not hesitate to contact Your VArio supplier.
If you use any personal electronic medical device (peacemaker, etc.), please consult the device manufacturer concerning
potential radio interference which may affect the medical device. VArio system modules use radio communication on
869,530 MHz with peak output ≤ 20mW.
The unit shall be always installed by a trained professional. Always disconnect the main power supply before performing
repairs or maintenance, or before connecting additional external devices. The DIN module must always be powered
from the safety-protected power source of filtration or recirculation pump.
The system uses radio-frequency communication. It is forbidden to use the device near mines / quarries or any places
with possible risk of explosion.
2.

General information

Package contains local radio remote control unit VArio RC (furthermore RC module).
RC module provides information and statuses of DIN module outputs. When a dosing station is connected (VA
DOS EXACT / VA DOS BASIC / VA DOS FLOC / VA PRO SALT pH), the RC will display actual water quality parameters
as measured by the dosing unit and will also allow the user to change the operating parameters.
3.

Technical information

RC module
Dimensions (w – h – d)
Material
Power supply
Frequency / Band
4.
Pairing the DIN and RC modules

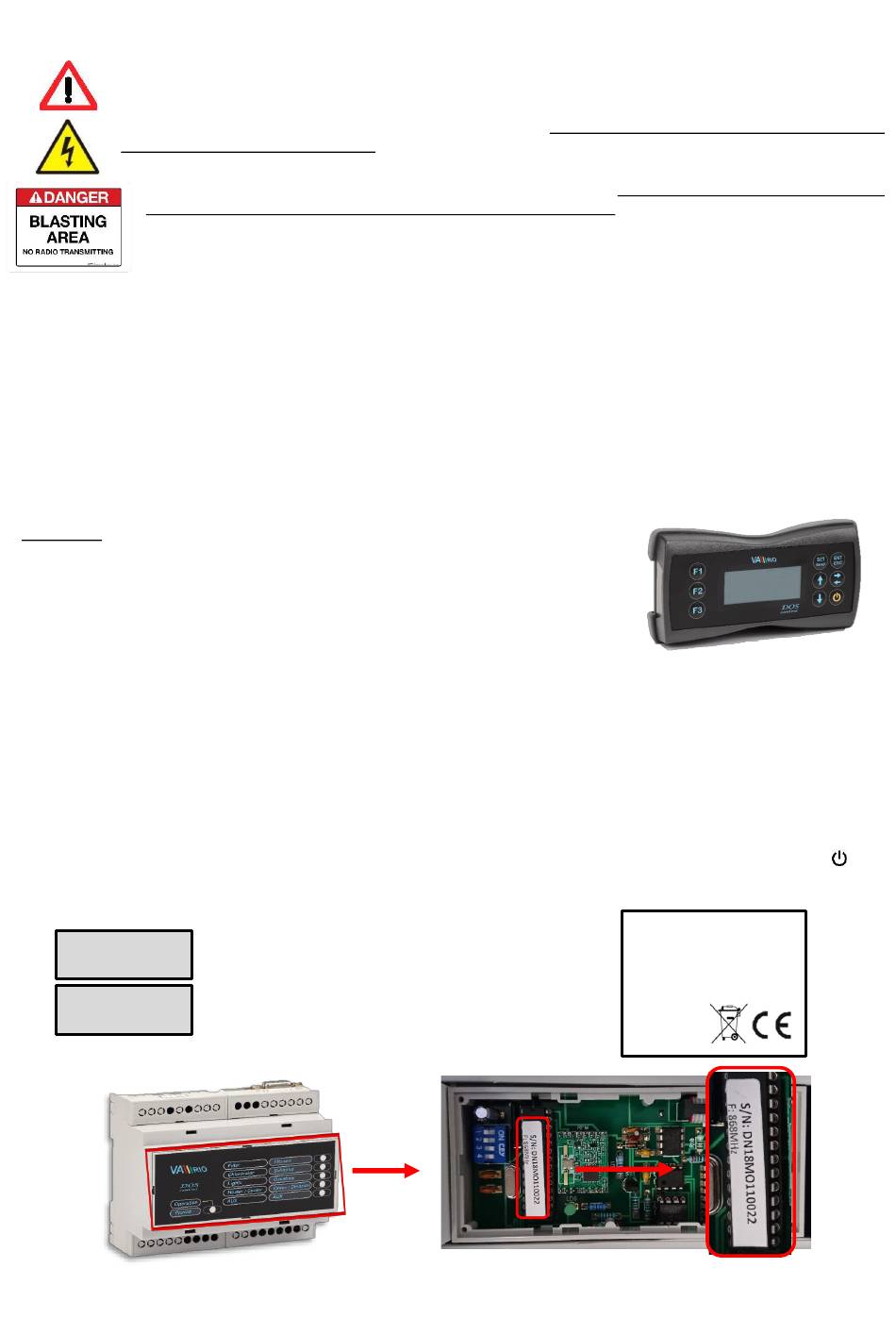

To establish a radio communication between the DIN and RC modules, both units need to be paired. For pairing,
the DIN module serial number is required – the last 4 digits of the S/N are crucial for pairing. The DIN S/N is located
on the side label of the DIN module; alternatively, also under the DIN microchip cover. For DIN modules coming in
a complete breaker box, the S/N is under the front transparent cover.
To access the pairing mode, take the turned-off RC module, press and hold the "F1" button and press the " "
button for at least 3 seconds. The display will light up and „0000" will be displayed.
0000
0400
81 x 165 x 31 mm
ABS
4,5V, 3x AA (rechargeable batteries may be used)
869,530 / P, max. power ≤ 20mW
Using the "V" or"ꓥ" buttons, select the desired
a)
number,
Press "<>" to move to the next digit,
b)
Press "SET/SEND" to confirm changes and pair the
c)
device. The display will switch to normal screen.
VÁGNER POOL s.r.o.
DIN Module
S/N: DN21VA110400
100-250VAC/50-60Hz
Max. 12W
2
