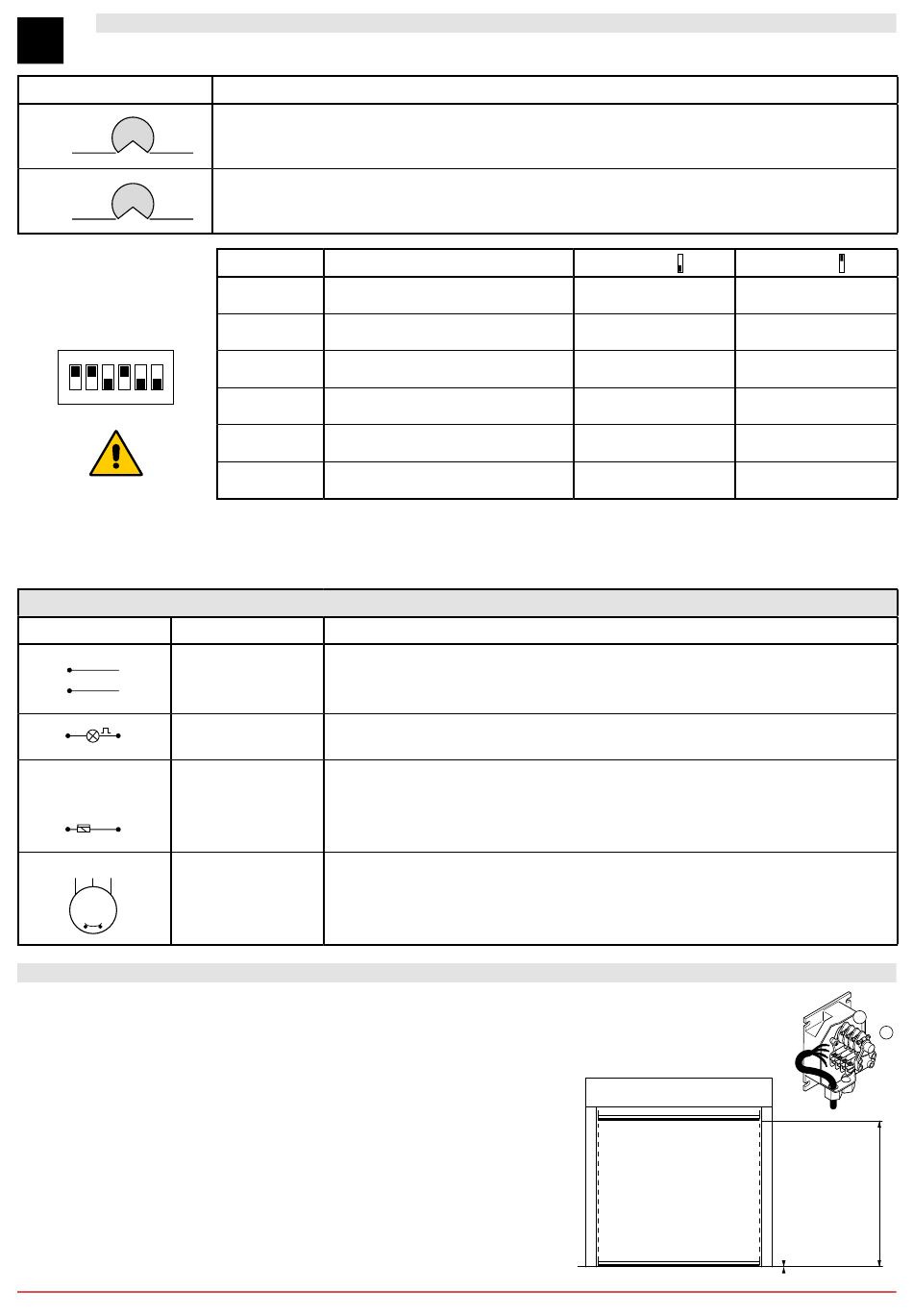

5.2 49E ELECTRONIC CONTROL PANEL - CONNECTIONS
49E
Trimmer
TC
0 s 30 s
RP
0 s 30 s
ditec Smart Plus
dip-switches
setting
ON
1 2 3 4 5 6
• FOR THE ENTRANCE dESCRIPTION TABLE, REFER TO THE TABLE ON PAGE 32
• FOR THE INdICATOR LEd dESCRIPTION TABLE, REFER TO PAGE 34
Output
1 +
0 –
0 14
- L K +
U W V
M
3 ~
AdjUSTMENT LIMIT SWITCH
1. Activate the door by pressing the appropriate buttons, and check it moves
in the correct direction and If necessary, reverse the movement direction
by modifying the phase sequence, adjusting the line wires upstream of
the main switch.
2. Carry the curtain in the closed position.
3. By means of a screwdriver, turn the "C" cam until the relative micro-switch
is triggered.
4. Carry out the same procedure for the opening limit switch: bring the
curtain to the open door position, and adjust cam "A".
5. Activate the automation to check the calibration and, if necessary, make
a further adjustment.
0DT826 2014-06-13
Setting automatic closing time. From 0 to 30 s.
Note: after the activation of the stop command, once contact 1-9 has closed again, the
automatic closing is only activated after a total, partial or step-by-step opening command.
Motor partial opening adjustment. From 0 to 30 s.
dip - switch
dIP 1 Control 1-3 function.
Restore automatic closing
dIP 2
time.
dIP 3 Preflashing set at 3 s.
dIP 4 Application type.
dIP 5 dynamic brake.
dIP 6 double speed
Value
Accessories power supply.
24 V = / 0,5 A Power supply output for external accessories, including automation status
lamp.
24V = / 50 W Flashing light (LAMPH).
(2 A) Activated during opening and closing operations.
24 V = / 0,5 A Output activated during the door running.
Three-phase motor.
Note: if the direction of rotation of the motor is incorrect for the desired direction
400 V~ / 4 A
of movement, swap the U - W phases.
description
description
OUTPUTS
description
- 36 -
OFF
Step-by-Step Opening
Do not use 100 %
Disabled during Enabled for both
opening opening and closing
Do not use Rapid door
Disabled Do not use
Disabled Do not use
ON
A
C
A
C
