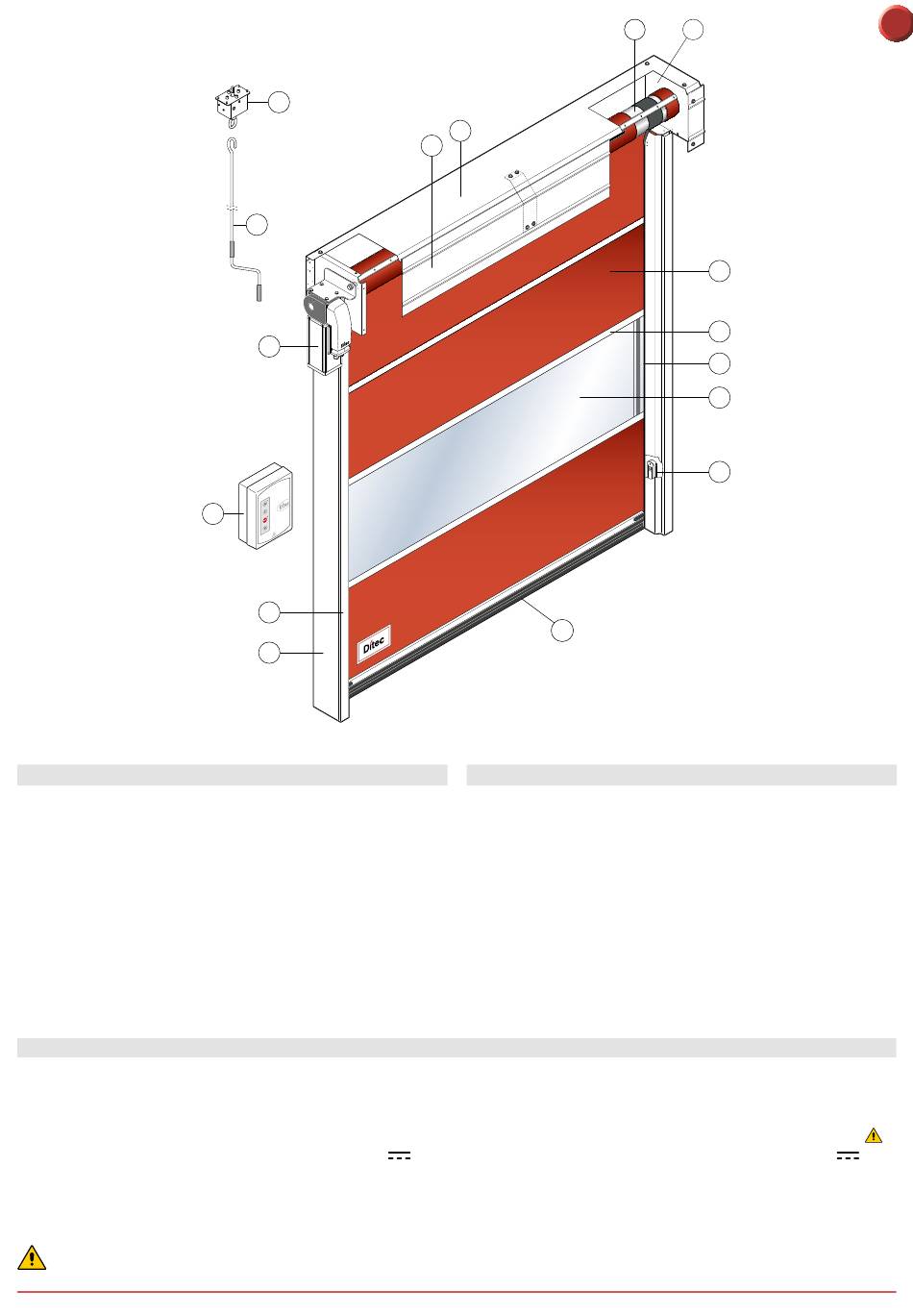

Ref. description
1 Side heads
2 Box
3 Box cover
4 Winding shaft
5 Safety edge
6 Column
7 Column cover
8 Seal

2. TECHNICAL CHARACTERISTICS

CONTROL PANEL TRIPHASE (48E)(49E)
Power supply voltage ............400 V triphase 50/60 Hz
Power input ............................................................. 6 A
Auxiliary control power voltage ........................24V
Motor rating ..................................................... 0,6 KW
Control board protection class ............................ IP 55
Operating temperature .............................. - 5 + 50 °C
Correctly size the line conductor cross-section by referring to the indicated absorption and taking the length and
installation of the cables into account.
10
11
9
12
7
6
2
3
5
Ref. description
9 Gearmotor K22 / K26
10 Manual operation device
11 Manual operation rod
12 Control panel
13 Photocell LAB4
14 Aluminium profile
15 Polyester curtain
16 Transparent PVC curtain
CONTROL PANEL INVERTER (47E)
Power supply voltage ........ 230 V monofase 50/60 Hz
Power input ........................................................... 16 A
Auxiliary control power voltage ........................24V
Motor rating ..................................................... 0,6 KW
Control board protection class ............................ IP 55
Operating temperature .............................. - 5 + 50 °C
- 29 -
4 4 1
15
14
8
16
13
0DT826 2014-06-13
EN
