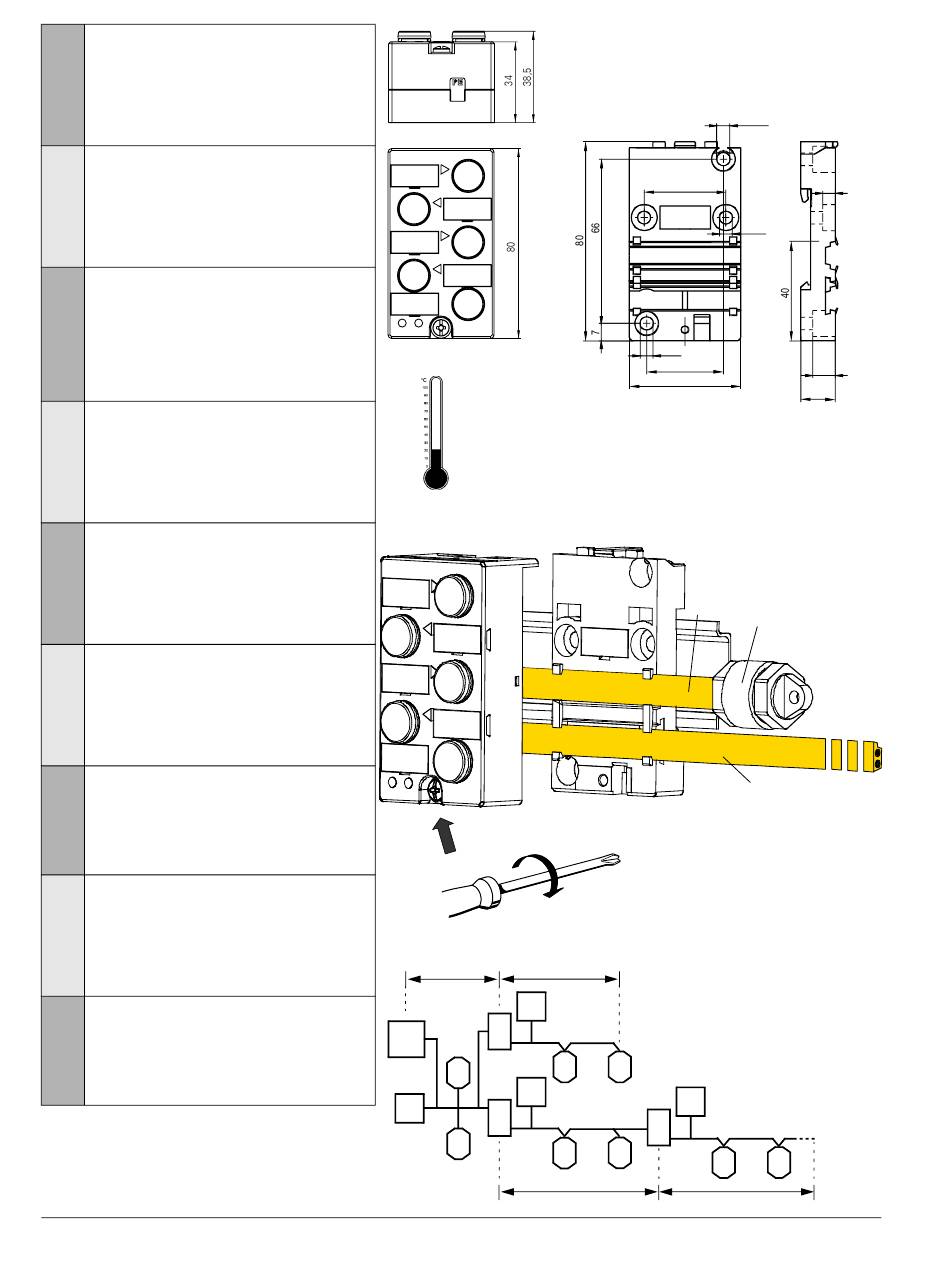

Siemens SIMATIC NET Betriebsanleitung Seite 2

Wichtiger Hinweis: AS-i 1 und AS-i 2 nicht verbinden!
Leitungsenden bei Bedarf mit 3RK1901-1MN00 verschlie-
ßen
LED an: AS-i Spannung OK
DE LED aus: AS-i Spannung zu niedrig
NT = Netzteil
M = Master
R = Repeater
S = Slave
Important note: Do not connect the AS-i 1 and AS-i 2 to
each other!
Seal open cable ends as applicable with 3RK1901-1MN00
LED On: AS-i voltage OK
EN LED OFF: AS-i voltage too low
NT = Power supply unit
M = Master
R = Repeater
S = Slave
Remarque importante : Ne pas connecter AS-i 1 à
AS-i 2 !
Au besoin, serrer les extrémités de câble avec 3RK1901-
1MN00.
LED allumée : tension AS-i OK
FR
LED éteinte : tension AS-i trop faible
NT = bloc d'alimentation
M = maître
R = répéteur
S = esclave
Nota importante: ¡No conectar AS-i 1 y AS-i 2!
En caso necesario, sellar los extremos de cables
con 3RK1901-1MN00
LED encendido: tensión AS-i OK
ES LED apagado: tensión AS-i demasiado baja
NT = fuente de alimentación
M = maestro
R = repetidor
S = esclavo
Indicazione importante: Non collegare AS-i 1 e AS-i 2!
Se necessario, chiudere le estremità del conduttore con
3RK1901-1MN00
LED acceso: tensione AS-i OK
IT LED spento: tensione AS-i troppo bassa
NT = alimentatore
M = master
R = ripetitore
S = slave
Indicação importante: Não unir AS-i 1 e AS-i 2!
Se necessário, fechar as extremidades de condutores com
3RK1901-1MN00
LED ligado: Tensão AS-i em ordem
PT LED desligado: Tensão AS-i muito baixa
NT = fonte de alimentação
M = mestre
R = repetidor
S = escravo
Önemli bilgi: AS-i 1 ve AS-i 2'yi bağlamayınız!
Hat uçlarını gerektiğinde 3RK1901-1MN00 ile kapatınız.
LED açık: AS-i gerilimi OK
LED kapalı: AS-i gerilimi çok düşük
TR
NT = Adaptör
M = Master
R = Repetör
S = Alt birim
Важное указание: AS-i 1 и AS-i 2 не соединять!
Концы проводов при необходимости закрыть с помощью
3RK1901-1MN00
Светодиод включен: напряжение AS-i в норме
РУ Светодиод выключен: напряжение AS-i слишком низко
NT = блок питания от сети
M = ведущий блок
R = репитер
S = подчиненный блок
重要提示 : 不要将 AS-i 1 和 AS-i 2 相互连接 !
需要时把线端用 3RK1901-1MN00 封闭起来。
LED 点亮 : AS-i 电压 OK
中 LED 熄灭 : AS-i 电压太低
文 NT = 电源
M = Master 主站
R = Repeater 中继器
S = Slave 从站
Technische Änderungen vorbehalten. Zum späteren Gebrauch aufbewahren.
Subject to change without prior notice. Store for use at a later date.
© Siemens AG 2007
All manuals and user guides at all-guides.com
°
T = –25 C...60
≤ 100 m
ASi 1
M
S
NT
S
Ø 5,2
°
C
+ 0,1
1 Nm
≤ 100 m
NT
ASi 2
R
S S
NT
ASi 2
R
R
S S
≤ 100 m
Bestell-Nr./Order No.: 3RK1703-2WB07-1AA1
Ø 5,2
33
5
Ø 5,1
31
9
45
14
ASi 1
3RK1901-1MN00
ASi 2
NT
ASi 1
S S
≤ 100 m
