5 Installation Of Appliance

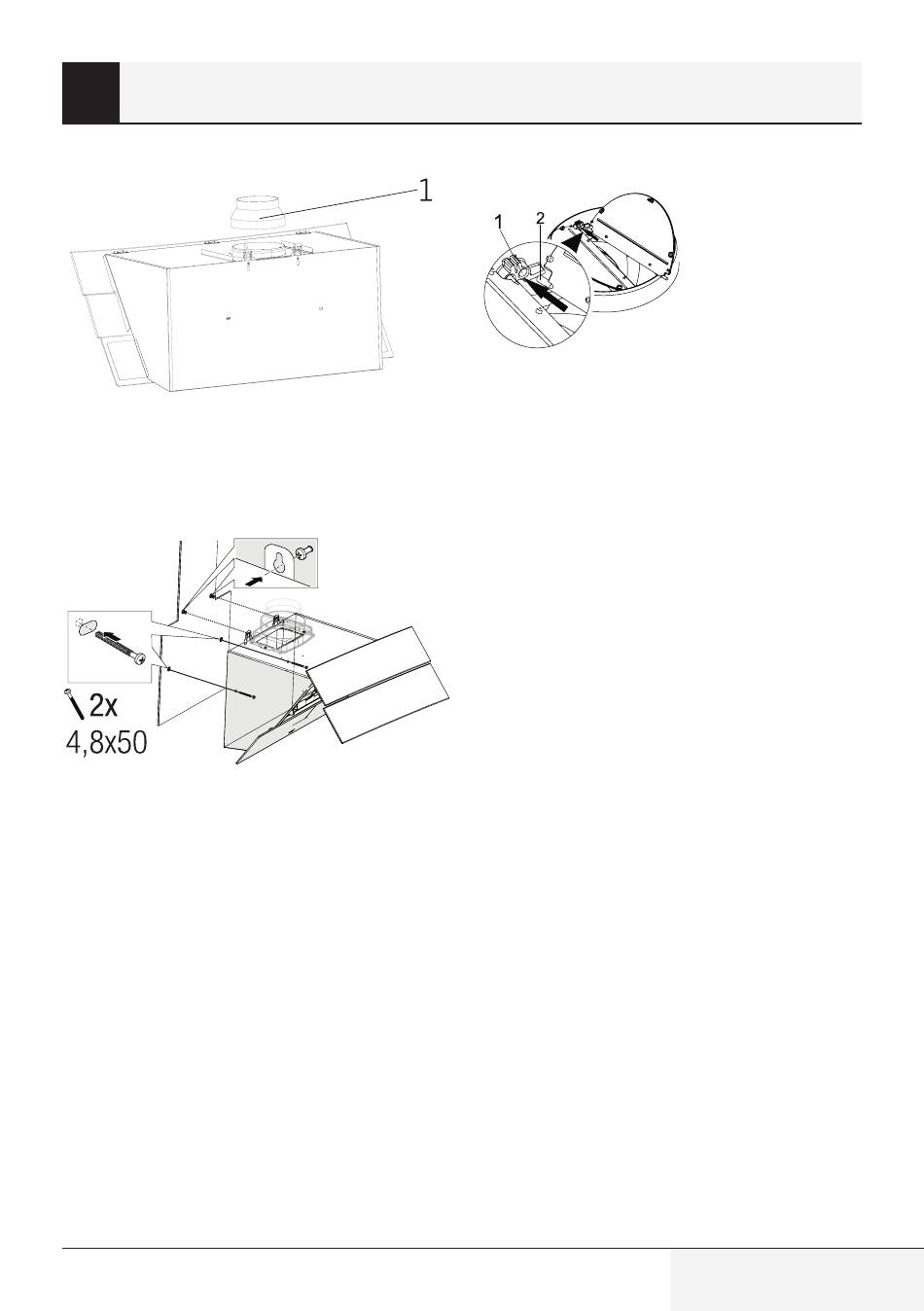

(Figure 9)
If the air outlet is to be connected to the air
discharge duct smaller than 150mm, install
the 150 / 120mm plastic flue adapter (Fig. 9).
(Figure 10)
Hold the cooker hood by its body and place it
on the mounting screws on the wall and tight-
en the screws (Figure 10).
Secure the cooker hood with two 4.8x50
screws to the wall through the mounting hole
on the interior of the appliance (Figure 10).
Cooker Hood / User Manual
5.4 Connecting to Flue
(Figure 11)
1- Flap Pin Socket
2- Flap Pin
Insert the plastic pin (Figure 11 / area no. 2)
on the pin socket on the motor exhaust (Figure
11 / area no.1). Then bend the flap lightly to
insert the other pin on the flap and insert the
other pin to its socket (Figure 11).
If you are going to use the Ø 120/150 mm
plastic flue adapter, connect one end of the
pipe to this adapter, if you are not going to use
it, to the direct output on the product. Connect
the other end of the pipe to your flue. Check
that these two connections are tight enough
so they will not come out when the appliance
runs on full power. Ensure that the flaps in-
side the flue work when tightened with clamp.
Connect the flue connection duct outside the
adapter (Figure 12/a). If the connection duct
is fitted inside the adapter, suction of air shall
not occur as the flue flap that prevents the
return of air will remain closed (Figure 12 / b).
The length of the pipe connection as well as
the number of elbows must be as minimum
as possible.
A : Flue exit pipe
B : Flue Clamps
C: Plastic Flue
The valves are closed then the appliance is
not operating and prevent possible outside
odour and dust from entering inside.
