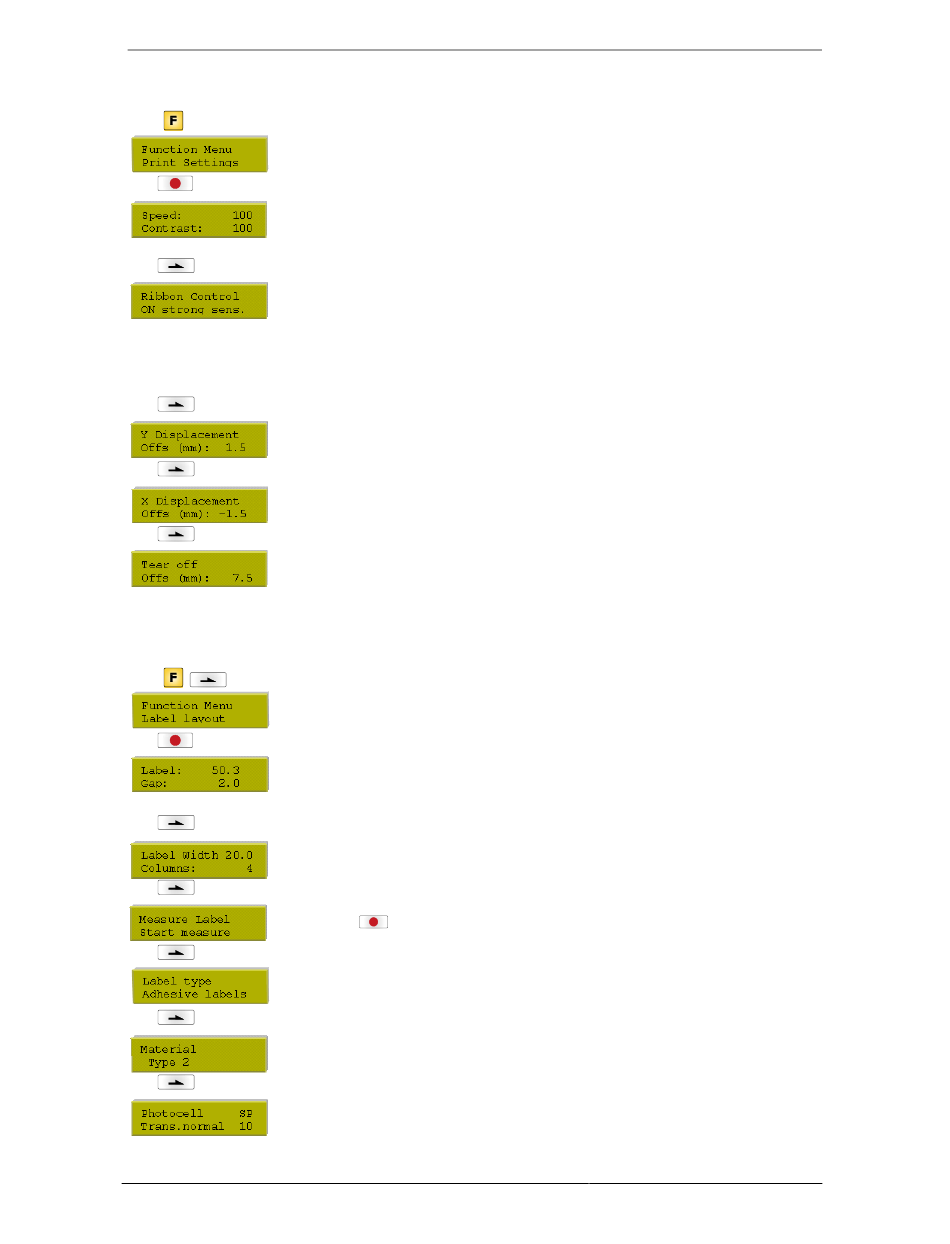

Print settings

Keys:
Key:
Speed:
Value range: 50 mm/s ... 300 mm/s (see the technical data).
Contrast:
Value range: 10% ... 200 %.
Key:
Transfer ribbon control:
Examination if the transfer ribbon roll is to end or if the ribbon was torn at the unwinding roll.
Off: The ribbon control is deselected, i.e. the printer continues without an error message.
On: The ribbon control is selected, i.e. the current print order is interrupted and an Error
Message appears at the printer display.
strong sensibility: The printer reacts immediately to the end of the transfer ribbon.
weak sensibility: The printer reacts at approx. 1/3 more slowly to the end of the transfer
ribbon.
Key:
Y displacement:
Indication of initial point displacement in mm. The label is moved vertically.
Value range: −30.0 ... +90.0.
Key:
X displacement:
Indication of displacement in X direction. The fields on the label are moved.
Value range: −90.0 ... +90.0.
Key:
Tear off:
The standard value of tear off offset is 12 mm.
Value range: 0 ... 50.0 mm.

Label layout

Keys: ,
Key:
Label:
Minimum height: 5 mm (dispenser mode: 25 mm).
Gap:
Minimum value: 1 mm.
Key:
Column printing:
Indication of width of one label as well as how many labels are placed side by side.
Key:
Measure label:
Press key
Key:
Type of label:
Generally adhesive labels are set. In case you would like to use continuous labels, you have to
select this in the menu.
Key:
Material:
Selection of the used print materials.
Key:
Photocell:
Selection of the used photocell.
Scan position (AP):
Entry of percental label length by that the label end is searched. Marks onto the label can be
skipped.
