INSTRUCTION MANUAL POWER XXL – B 9000 – B 9000-S – B 12000 – B 12000-S

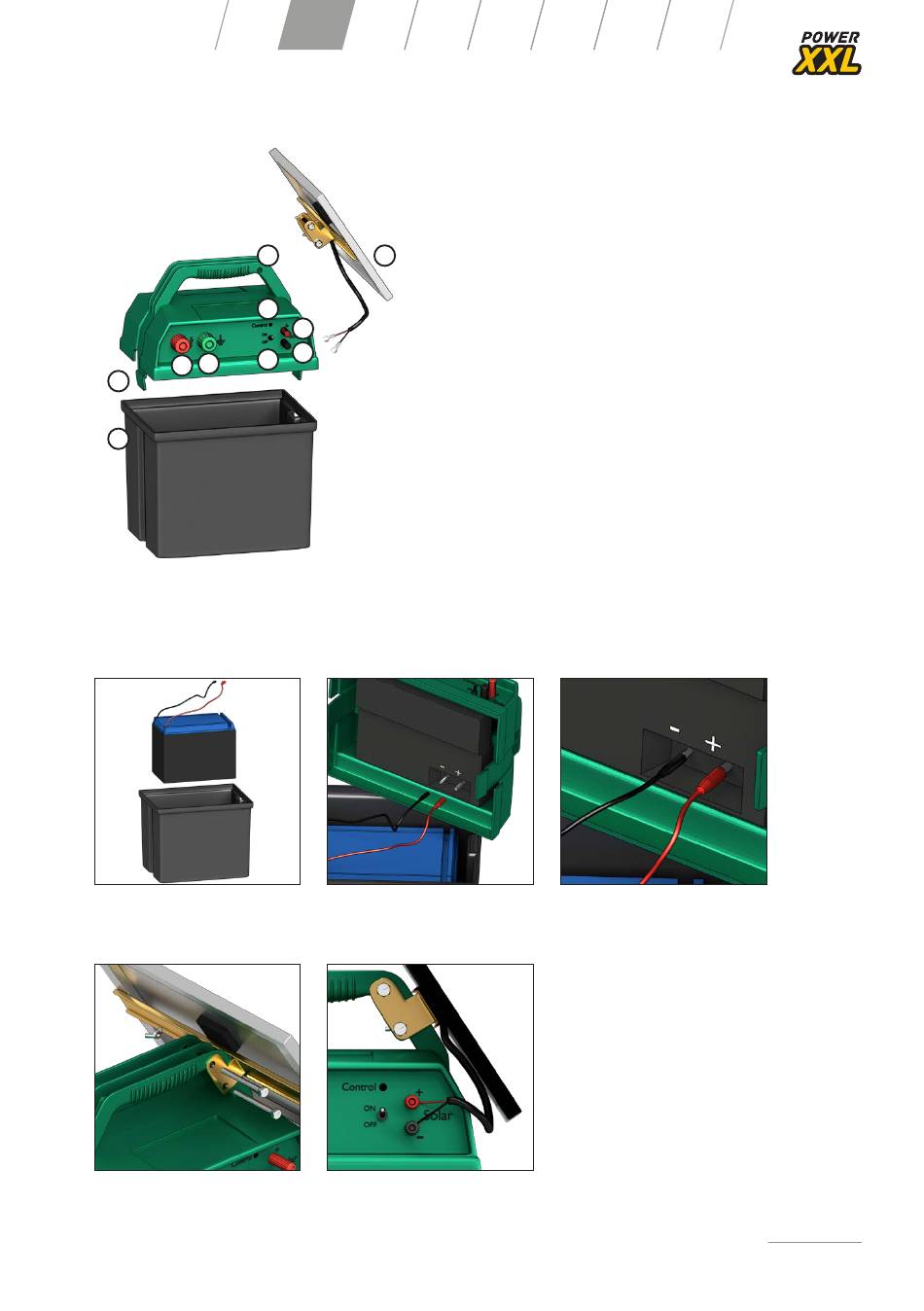

5 OVERVIEW OF THE ENERGISER AND FUNCTIONS

9
8
5
4
3
1
2

5.1 INSTALLING THE BATTERY AND SOLAR MODULE

Insert the battery into the battery compartment as shown. Make sure that the device is switched off before
connecting the battery! Connect the battery to the energiser as shown and close the battery compartment.
Fasten the solar module to the handle and connect the cable to the device as shown in the picture.
570500/12/2020/V2
EN FR IT
1.
2.
3.
10
4.
7
5.
6
6.
7.
8.
9.
10. Solar panel 5W (Only for the solar energisers -
NL SV ES
Locking tabs
Battery compartment
Fence connection terminal
Ground connection terminal
ON/OFF switch
Solar connection negative
Solar connection positive
Control LED
Mounting hole for solar module
version „-S")
