INTRODUCTIONS

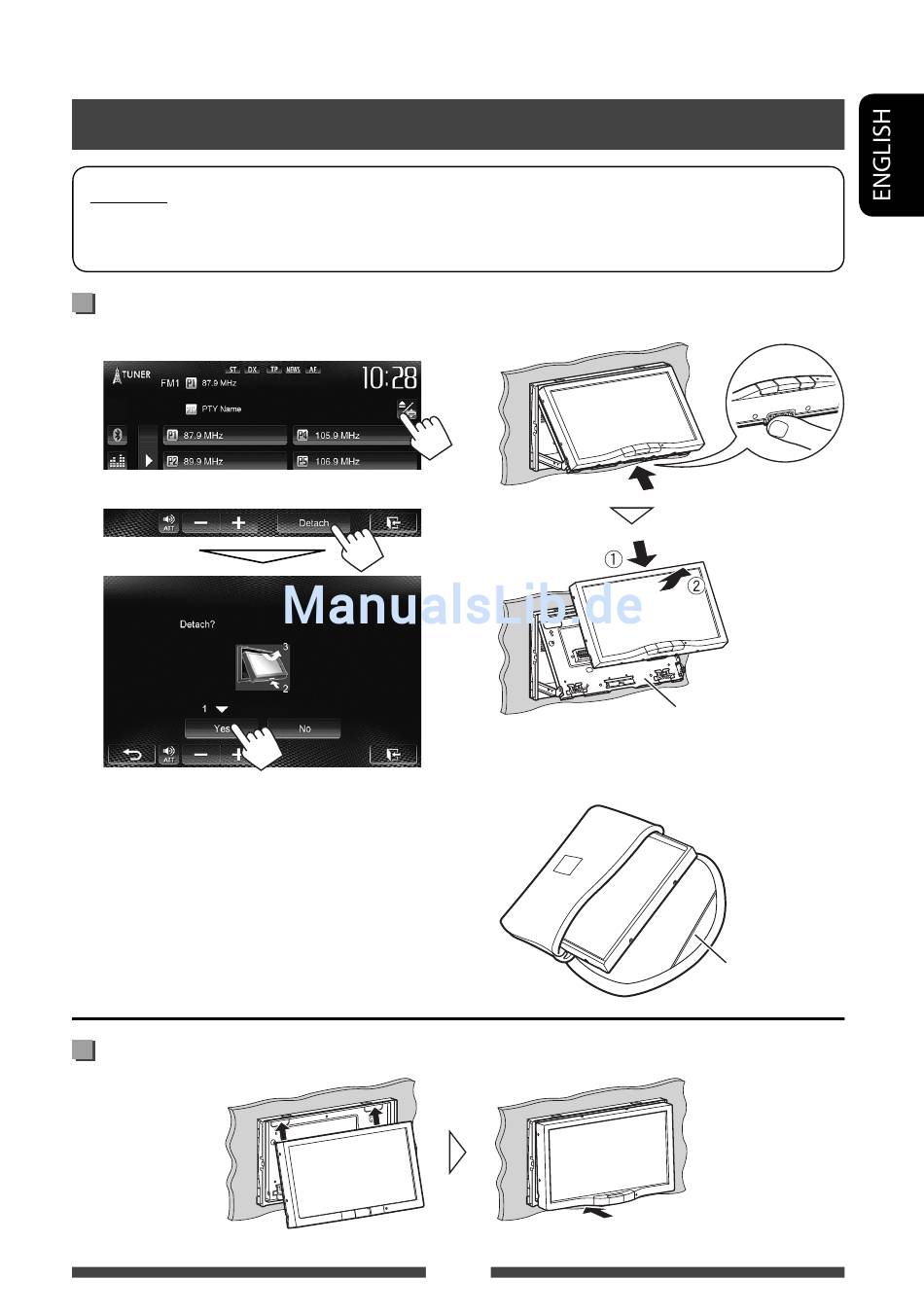

Detaching/attaching the monitor panel

Cautions
• Hold the monitor panel securely so as not to drop it accidentally.
• Fit the monitor panel onto the attaching plate until it is firmly locked.
Detaching
1
On the source control screen:
2
The monitor panel opens by about 50°.
• It closes automatically when no operation is
done for about 60 seconds.
Remove the monitor panel before this happens.
Attaching
3
• The attaching plate closes automatically about
10 seconds after the monitor panel is unlocked.
4
5
The monitor panel is
unlocked.
Attaching plate
Soft case (supplied)
