Product Codes; Equipment - Lenze Smart Motor m300 Bedienungsanleitung

Product information

Equipment

Product codes

Motor product code
Example
Meaning Variant
Product family Motor
Product type Smart Motor
Cooling Integral fan
Internal key
Built-on accessories Without built-on
accessories
Brake
Size
Overall length
Number of pole pairs 4-pole motors
Design types Internal key
Approval CE; UKCA
CE; UKCA; cULus
CE; UKCA; CCC
CE; UKCA; cULus; CCC
Equipment

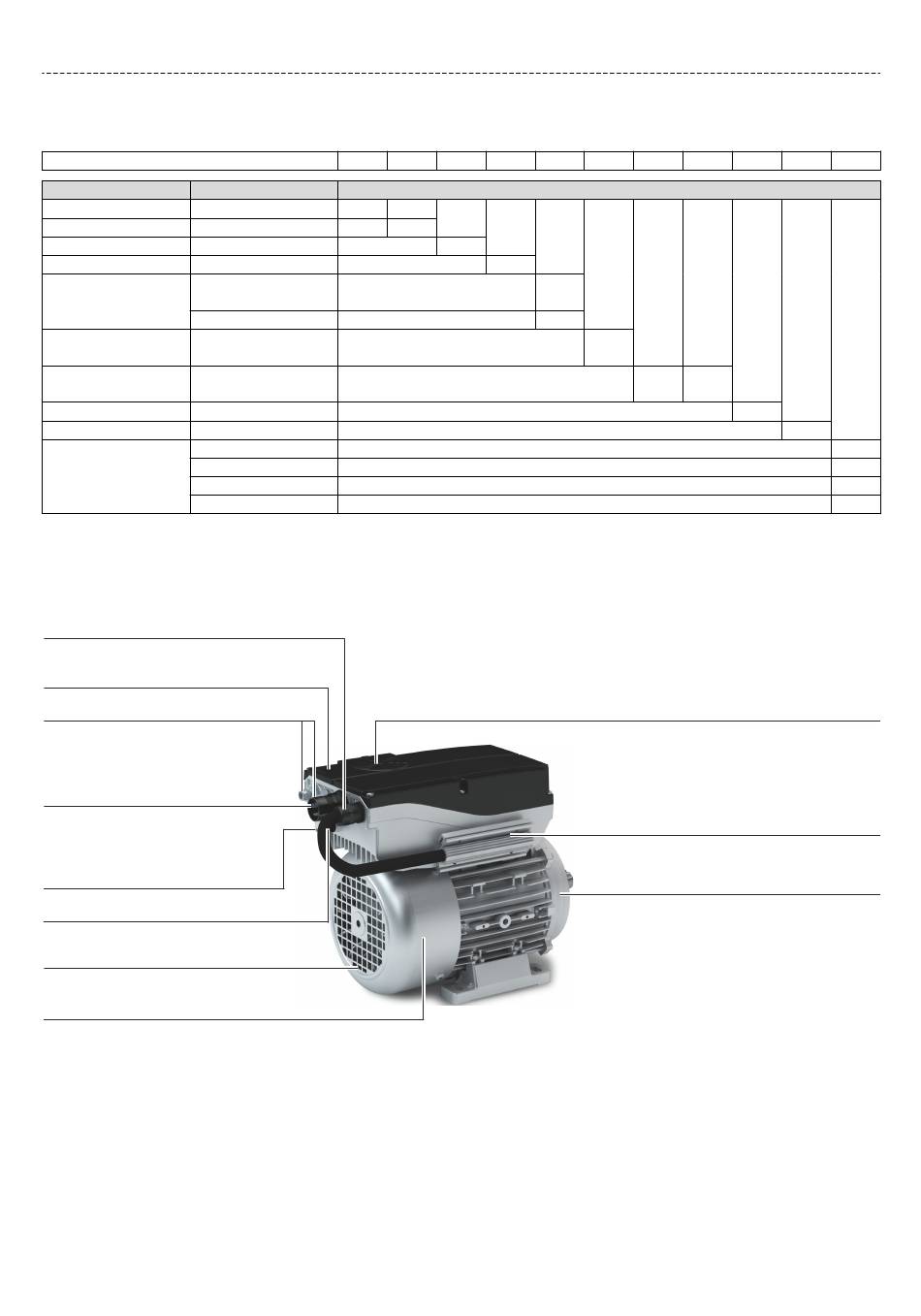

The following figure provides an overview of the elements and connections on the product. Their position,
size and appearance may vary.
X4 Brake resistor connection
External
Internal brake resistor
X1, X2 Control terminal
M12 connector
X3 Mains connection
In the terminal box
QUICKON V2-connector
M15-connector
PE
X5 Connection of spring-applied brake
(prewired upon delivery)
Cooling
Integral fan
Spring-applied brake
Standard
LongLife
Manual release lever
52
M S E MA
Product code
M
S
E
MA
XX 063 - 4
XX
BR
063
080
3
-
4
Adjustment of speeds
by means of Android smartphone
by means of PC via NFC adapter
External brake resistor
Type
Foot (B3)
Flange (B5) with through holes
Flange (B14) with threaded holes
2 C1 C
2
C1
C
L
3
5
