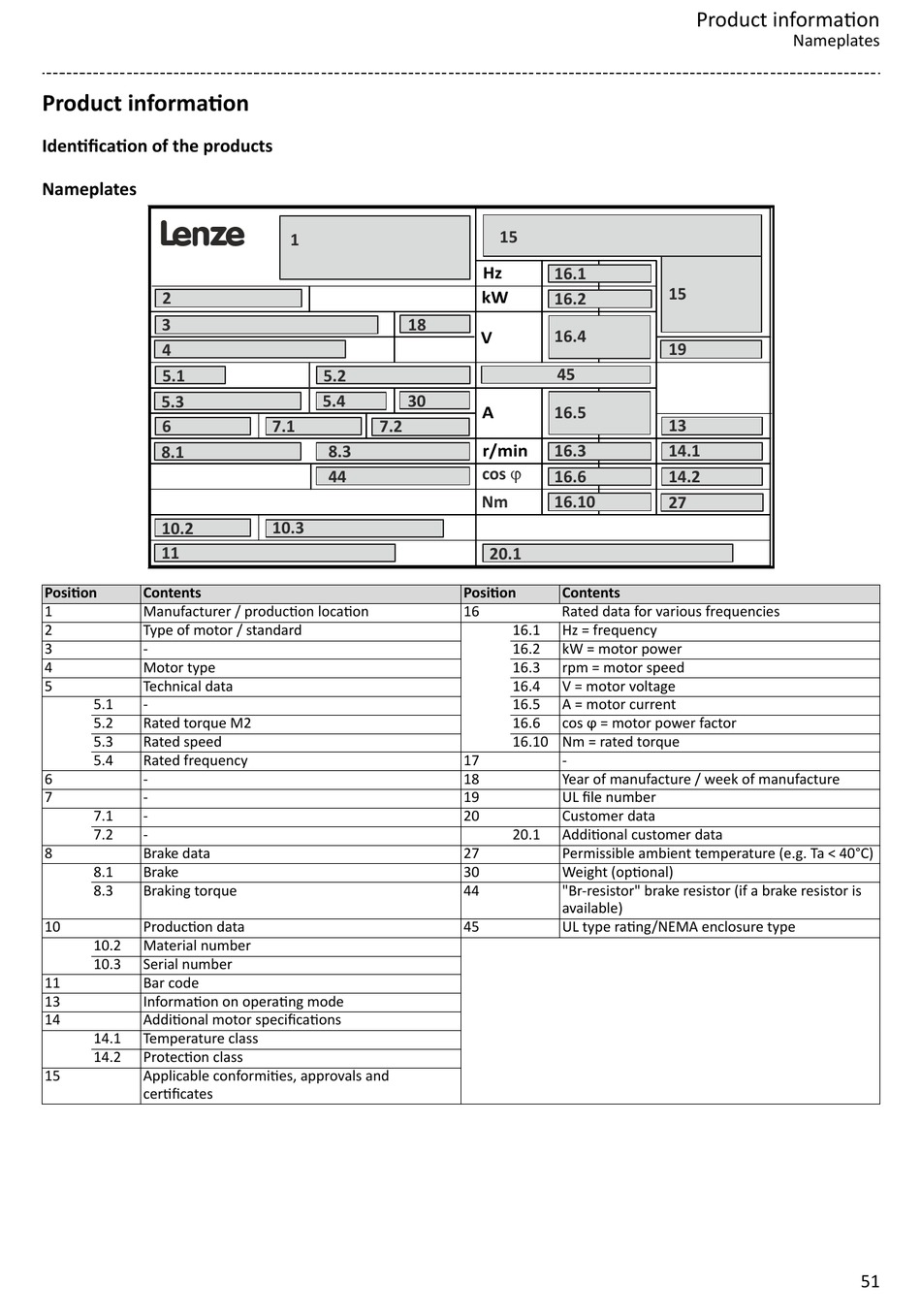

Product information

Identification of the products

Nameplates

L
2
3
4
5.1
5.3
6
8.1
10.2
11
Position Contents
1 Manufacturer / production location
2 Type of motor / standard
3 -
4 Motor type
5 Technical data
5.1 -
5.2 Rated torque M2
5.3 Rated speed
5.4 Rated frequency
6 -
7 -
7.1 -
7.2 -
8 Brake data
8.1 Brake
8.3 Braking torque
10 Production data
10.2 Material number
10.3 Serial number
11 Bar code
13 Information on operating mode
14 Additional motor specifications
14.1 Temperature class
14.2 Protection class
15 Applicable conformities, approvals and
certificates
1
18
5.2
5.4 30
7.1 7.2
8.3
44
10.3
15
Hz 16.1
kW
16.2
16.4
V
45
A 16.5
r/min 16.3
cos j
16.6
Nm 16.10
20.1
Position Contents
16 Rated data for various frequencies
16.1 Hz = frequency
16.2 kW = motor power
16.3 rpm = motor speed
16.4 V = motor voltage
16.5 A = motor current
16.6 cos ϕ = motor power factor
16.10 Nm = rated torque
17 -
18 Year of manufacture / week of manufacture
19 UL file number
20 Customer data
20.1 Additional customer data
27 Permissible ambient temperature (e.g. Ta < 40°C)
30 Weight (optional)
44 "Br-resistor" brake resistor (if a brake resistor is
available)
45 UL type rating/NEMA enclosure type
