Installing the sensor
DANGER
L
Risk of injury!
‣
Pay attention to the torques when reassembling!
When installing a new sensor, the sensor seals are pre-assembled.
Remove any residue on the threaded connection in the sensor. The bore hole must be
completely clean.

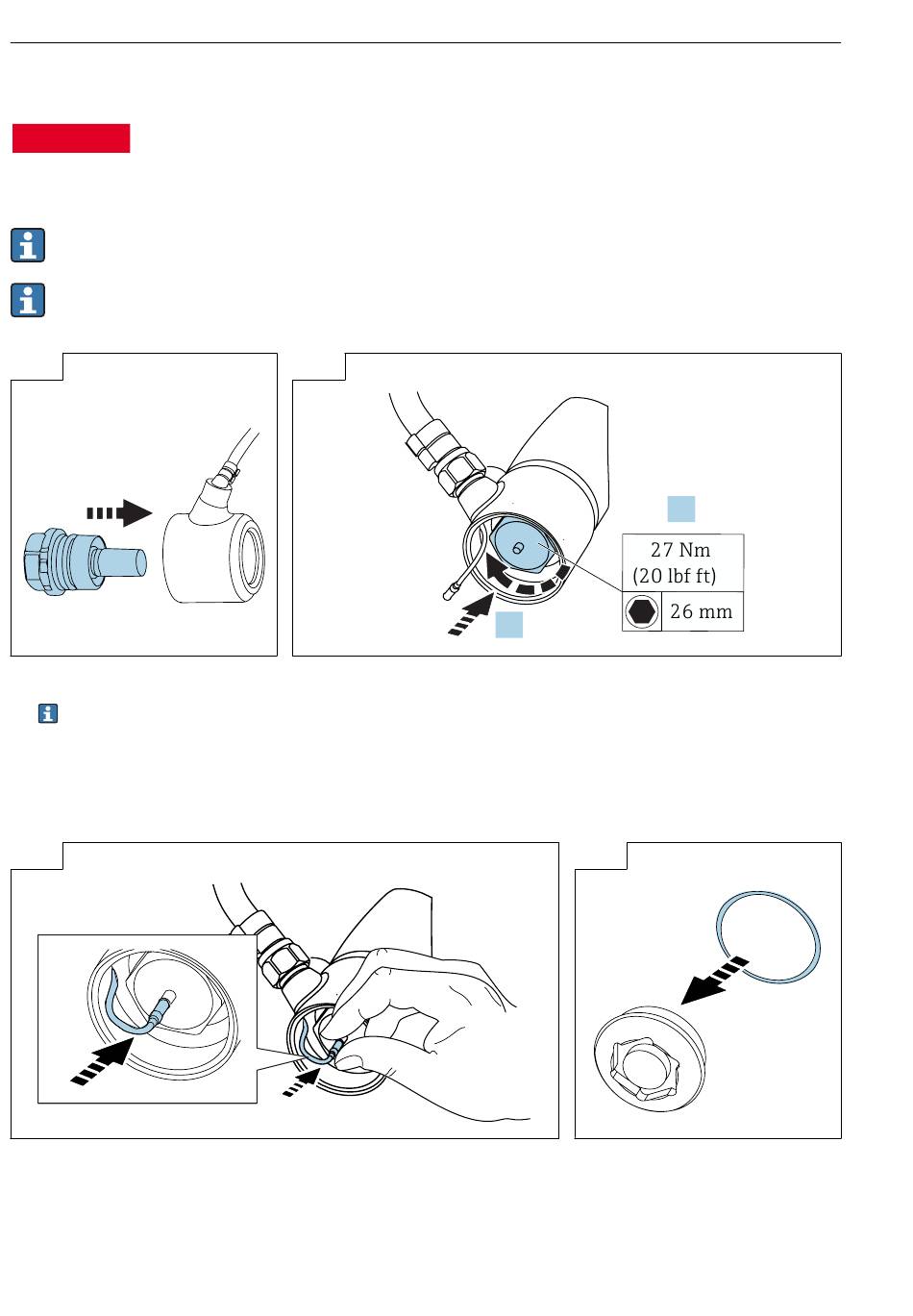

1 →
‣
Install the sensor in the cable
duct.
‣
Do not install the sensor as
far as the end stop!
‣
This ensures that the sensor can
be rotated in the cable duct
without any friction with the
sensor seals.
3 →
14
2 →
‣
Tighten the sensor with the torque indicated.
1.
4 →
2.
