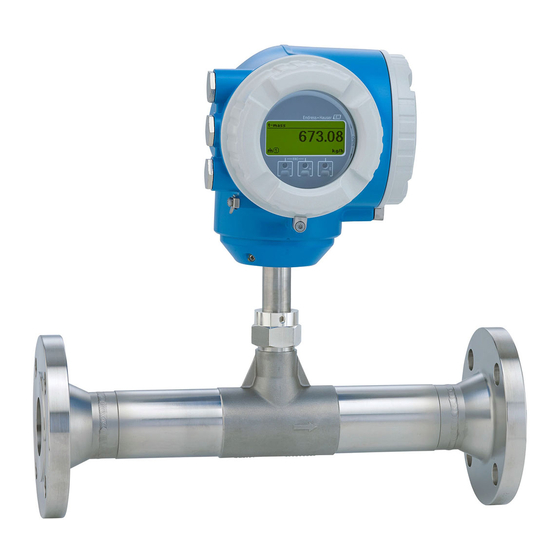

Products Solutions Services EA01147D/06/A2/04.20 71461204 2020-02-01 Installation Instructions Replacing ISEM electronics module, ISEM extender, ribbon cable Promag, Promass 300, 500, 500-digital, Prosonic Flow, t-mass 300, 500-digital EN Installation Instructions: EA01147D → 3 DE Einbauanleitung: EA01147D → 23...
Seite 3
Disposal ............... . . 21 Endress+Hauser...
Seite 4
The Installation Instructions apply to the following spare part sets: Order Original spare part set Contents number 71323005 Set, ISEM ribbon cable, Proline 300, 500 1 × ribbon cable 71323006 Set, ISEM ribbon cable, Proline 500-digital 1 × ribbon cable 71323015 Set, ISEM extender, Proline 500-digital, Ex 1 ×...
Seite 5
The spare part sets and Installation Instructions are used to replace a faulty unit with a functioning unit of the same type. Only original parts from Endress+Hauser may be used. Only spare parts kits designed by Endress+Hauser for the measuring device can be used at any time.
Seite 6
• Only open the housing for a brief period. Avoid the penetration of foreign bodies, moisture or contaminants. • Replace defective seals only with original seals from Endress+Hauser. • If threads are damaged or defective, the measuring device must be repaired.
Seite 7
• Service plug: • Do not connect in explosive atmospheres. • Only connect to Endress+Hauser service devices. • Observe the instructions for transporting and returning the device outlined in the Operating Instructions.
Seite 8
Opening the electronics compartment and removing the module holder 1 → 2 → N ic te r e r g ö ff iz e te n s io r ir I/ O 3 mm 2.5 Nm (1.8 lbf ft) Endress+Hauser...
Seite 9
Reassembly is carried out in reverse order. Note the following: 8.1.4 Note on reassembling the Promag 300 Set the grounding switch of the ISEM electronics module to the position on the "left" (closed), as illustrated in the diagram below. Endress+Hauser...
Seite 10
Note on reassembling the Promag, Promass 300, 500, Prosonic Flow, t-mass 300 Check if the S-DAT is inserted in the amplifier (Fig. 1 below). Otherwise, check if the S- DAT is inserted in the sensor interface (Fig. 2 below). 1 → S-DAT S-DAT Endress+Hauser...
Seite 11
0,6 Nm N ic te r e rg ö ff iz e te n ri r s io I/ O (0.4 lbf ft) ‣ Press down the ISEM electronics module (1), tighten screws (2) and insert cable (3). Endress+Hauser...
Seite 12
Sensor connection housing, stainless steel cast housing for Zone 1, Div. 1 9.1.1 Opening the electronics compartment and removing the ISEM electronics module and ISEM extender 1 → 2 → 2,5 Nm (1.8 lbf ft) 3 (0.12) 3 mm Endress+Hauser...
Seite 13
Operating Instructions for the device. Sensor connection housing, aluminum, for Zone 2, Div. 2, non-Ex version 9.2.1 Opening the electronics compartment and removing the ISEM electronics module and ISEM extender 1 → 2 → 2,5 Nm 3 (0.12) (1.8 lbf ft) 3 mm Endress+Hauser...
Seite 14
Set the grounding switch of the ISEM electronics module to the position on the "left" (closed), as illustrated in the diagram below. For detailed information on the electrical connection, see the "Electrical connection" section of the Operating Instructions for the device. Endress+Hauser...
Seite 15
9.3.1 Opening the electronics compartment and removing the ISEM electronics module and ISEM extender 1 → 2 → 8 mm 3 (0.12) 4 Nm (3 lbf ft) 0,6 Nm (0.4 lbf ft) Endress+Hauser...
Seite 16
Sensor connection housing, stainless steel cast housing for Zone 2, Div. 2, non-Ex version 10.1.1 Opening the electronics compartment and replacing the ISEM electronics module and ISEM extender with ribbon cable 1 → 2 → 2,5 Nm (1.8 lbf ft) 3 (0.12) 3 mm Endress+Hauser...
Seite 17
Sensor connection housing, aluminum, for Zone 2, Div. 2, non-Ex version 10.2.1 Opening the electronics compartment and replacing the SEM electronics module and ISEM extender with ribbon cable 1 → 2 → 2,5 Nm 3 (0.12) (1.8 lbf ft) 3 mm Endress+Hauser...
Seite 18
10.3.1 Opening the electronics compartment and replacing the ISEM electronics module and ISEM extender with ribbon cable 1 → 2 → 8 mm 3 (0.12) 4 Nm (3 lbf ft) Endress+Hauser...
Seite 19
Sensor connection housing, stainless steel cast housing for Zone 1, Div. 1 11.1.1 Opening the electronics compartment and replacing the ISEM electronics module 1 → 2 → 2,5 Nm 0,8 Nm (1.8 lbf ft) 3 (0.12) (0.6 lbf ft) 3 mm Endress+Hauser...
Seite 20
Operating Instructions for the device. 11.3 Sensor connection housing, stainless, for Zone 1, Div. 1 11.3.1 Opening the electronics compartment and replacing the ISEM electronics module 1 → 2 → 8 mm 3 (0.12) 4 Nm (3 lbf ft) Endress+Hauser...
Seite 21
(WEEE), the product is marked with the depicted symbol in order to minimize the disposal of WEEE as unsorted municipal waste. Do not dispose of products bearing this marking as unsorted municipal waste. Instead, return them to Endress+Hauser for disposal under the applicable conditions.
Seite 23
Entsorgung ..............41 Endress+Hauser...
Seite 24
Übersicht Ersatzteilsets Die Einbauanleitung ist für folgende Ersatzteilsets gültig: Bestell- Original Ersatzteilset Inhalt nummer 71323005 Set ISEM-Flachbandkabel, Proline 300, 500 1 × Flachbandkabel 71323006 Set ISEM-Flachbandkabel, Proline 500-digital 1 × Flachbandkabel 71323015 Set ISEM-Extender, Proline 500-digital, Ex 1 × Anschlussprint ISEM-Extender...
Seite 25
Zulassung (z.B. IECEx) 1, 2, 3 Bei eichfähigem Verkehr 1 = Ausgebildete Fachkraft des Kunden, 2 = Von Endress+Hauser autorisierter Servicetechniker, 3 = Endress+Hauser (Messgerät an Hersteller zurücksenden) 4 = Mit der lokalen Zulassungsstelle prüfen, ob ein Ein-/Umbau unter Aufsicht erfolgen muss.
Seite 26
• Änderungen am Messgerät sind nicht zulässig. • Gehäuse nur kurzzeitig öffnen. Eindringen von Fremdkörpern, Feuchtigkeit oder Verunreinigung vermeiden. • Defekte Dichtungen nur durch Original-Dichtungen von Endress+Hauser ersetzen. • Defekte Gewinde erfordern eine Instandsetzung des Messgeräts. • Gewinde (z.B. von Elektronikraum- und Anschlussraumdeckel) müssen geschmiert sein, sofern keine abriebfeste Trockenschmierung vorhanden ist.
Seite 27
(z.B. Hochspannungstest gemäß Herstellerangaben). • Servicestecker: • Nicht in explosionsfähiger Atmosphäre anschließen. • Nur an Servicegeräte von Endress+Hauser anschließen. • Die in der Betriebsanleitung aufgeführten Hinweise zum Transport und zur Rücksendung beachten. Bei Fragen kontaktieren Sie bitte Ihre zuständige Endress+Hauser Serviceorganisation.
Seite 28
Gussgehäuse rostfrei explosionsgeschützte Ausführung 8.1.1 Öffnen Elektronikraum und Ausbau Modulhalterung 1 → 2 → N ic te r e r g ö ff iz e te n s io r ir I/ O 3 mm 2.5 Nm (1.8 lbf ft) Endress+Hauser...
Seite 29
1 → 0,6 Nm (0.4 lbf ft) 8.1.3 Zusammenbau Messumformergehäuse Der Zusammenbau erfolgt in umgekehrter Reihenfolge. Folgendes ist zu beachten: 8.1.4 Hinweis zum Zusammenbau Promag 300 Erdungsschalter des ISEM-Elektronikmodul auf Position "links" stellen (geschlossen), wie im Bild unten gezeigt. Endress+Hauser...
Seite 30
Hinweis zum Zusammenbau Promag, Promass 300, 500, Prosonic Flow, t-mass 300 Kontrollieren, ob der S-DAT im Messverstärker eingesteckt ist (Bild 1 unten). Andernfalls kontrollieren, ob der S-DAT in der Sensorschnittstelle eingesteckt ist (Bild 2 unten). 1 → S-DAT S-DAT Endress+Hauser...
Seite 31
0,6 Nm N ic te r e rg ö ff iz e te n s io ri r (0.4 lbf ft) I/ O ‣ ISEM-Elektronikmodul herunter drücken (1), Schrauben fest ziehen (2) und Kabel einstecken (3). Endress+Hauser...
Seite 32
EA01147D Promag 500-digital Sensor Anschlussgehäuse Guss rostfrei für Zone 1, Div. 1 9.1.1 Öffnen Elektronikraum und Ausbau ISEM-Elektronikmodul und ISEM-Extender 1 → 2 → 2,5 Nm (1.8 lbf ft) 3 (0.12) 3 mm Endress+Hauser...
Seite 33
Detaillierte Angaben zum elektrischen Anschluss: Kapitel "Elektrischer Anschluss", Betriebsanleitung zum Gerät. Sensor Anschlussgehäuse Alu für Zone 2, Div. 2, nicht explosionsgeschützte Ausführung 9.2.1 Öffnen Elektronikraum und Ausbau ISEM-Elektronikmodul und ISEM-Extender 1 → 2 → 2,5 Nm 3 (0.12) (1.8 lbf ft) 3 mm Endress+Hauser...
Seite 34
9.2.2 Zusammenbau Sensor Anschlussgehäuse Alu Der Zusammenbau erfolgt in umgekehrter Reihenfolge. Folgendes ist zu beachten: Erdungsschalter des ISEM-Elektronikmodul auf Position "links" stellen (geschlossen), wie im Bild unten gezeigt. Detaillierte Angaben zum elektrischen Anschluss: Kapitel "Elektrischer Anschluss", Betriebsanleitung zum Gerät. Endress+Hauser...
Seite 35
Ausführung und Sensor Anschluss- gehäuse ultrakompakt rostfrei hygienisch nicht explosionsge- schützte Ausführung 9.3.1 Öffnen Elektronikraum und Ausbau ISEM-Elektronikmodul und ISEM-Extender 1 → 2 → 8 mm 3 (0.12) 4 Nm (3 lbf ft) 0,6 Nm (0.4 lbf ft) Endress+Hauser...
Seite 36
Promass, Prosonic Flow, t-mass 500-digital 10.1 Sensor Anschlussgehäuse Guss rostfrei für Zone 2, Div. 2, nicht explosionsgeschützte Ausführung 10.1.1 Öffnen Elektronikraum und Austausch ISEM-Elektronikmodul und ISEM-Extender mit Flachbandkabel 1 → 2 → 2,5 Nm (1.8 lbf ft) 3 (0.12) 3 mm Endress+Hauser...
Seite 37
Detaillierte Angaben zum elektrischen Anschluss: Kapitel "Elektrischer Anschluss", Betriebsanleitung zum Gerät. 10.2 Sensor Anschlussgehäuse Alu für Zone 2, Div. 2, nicht explosionsgeschützte Ausführung 10.2.1 Öffnen Elektronikraum und Austausch SEM-Elektronikmodul und ISEM-Extender mit Flachbandkabel 1 → 2 → 2,5 Nm 3 (0.12) (1.8 lbf ft) 3 mm Endress+Hauser...
Seite 38
Sensor Anschlussgehäuse rostfrei für Zone 2, Div. 2, nicht explosionsgeschützte Ausführung und Sensor Anschluss- gehäuse ultrakompakt hygienisch nicht explosionsgeschützte Ausführung 10.3.1 Öffnen Elektronikraum und Austausch ISEM-Elektronikmodul und ISEM-Extender mit Flachbandkabel 1 → 2 → 8 mm 3 (0.12) 4 Nm (3 lbf ft) Endress+Hauser...
Seite 39
2 → 2,5 Nm 0,8 Nm (1.8 lbf ft) 3 (0.12) (0.6 lbf ft) 3 mm 11.1.2 Zusammenbau Sensor Anschlussgehäuse Guss rostfrei Der Zusammenbau erfolgt in umgekehrter Reihenfolge. Detaillierte Angaben zum elektrischen Anschluss: Kapitel "Elektrischer Anschluss", Betriebsanleitung zum Gerät. Endress+Hauser...
Seite 40
Öffnen Elektronikraum und Austausch ISEM-Elektronikmodul 1 → 2 → 8 mm 3 (0.12) 4 Nm (3 lbf ft) 11.3.2 Zusammenbau Sensor Anschlussgehäuse rostfrei Der Zusammenbau erfolgt in umgekehrter Reihenfolge. Detaillierte Angaben zum elektrischen Anschluss: Kapitel "Elektrischer Anschluss", Betriebsanleitung zum Gerät. Endress+Hauser...
Seite 41
Gemäß der Richtlinie 2012/19/EG über Elektro- und Elektronik-Altgeräte (WEEE) ist das Produkt mit dem abgebildeten Symbol gekennzeichnet, um die Entsorgung von WEEE als unsortierten Hausmüll zu minimieren. Gekennzeichnete Produkte nicht als unsortierter Hausmüll entsorgen, sondern zu den gültigen Bedingungen an Endress+Hauser zurückgeben. Endress+Hauser...
Seite 44
*71461204* 71461204 www.addresses.endress.com...
