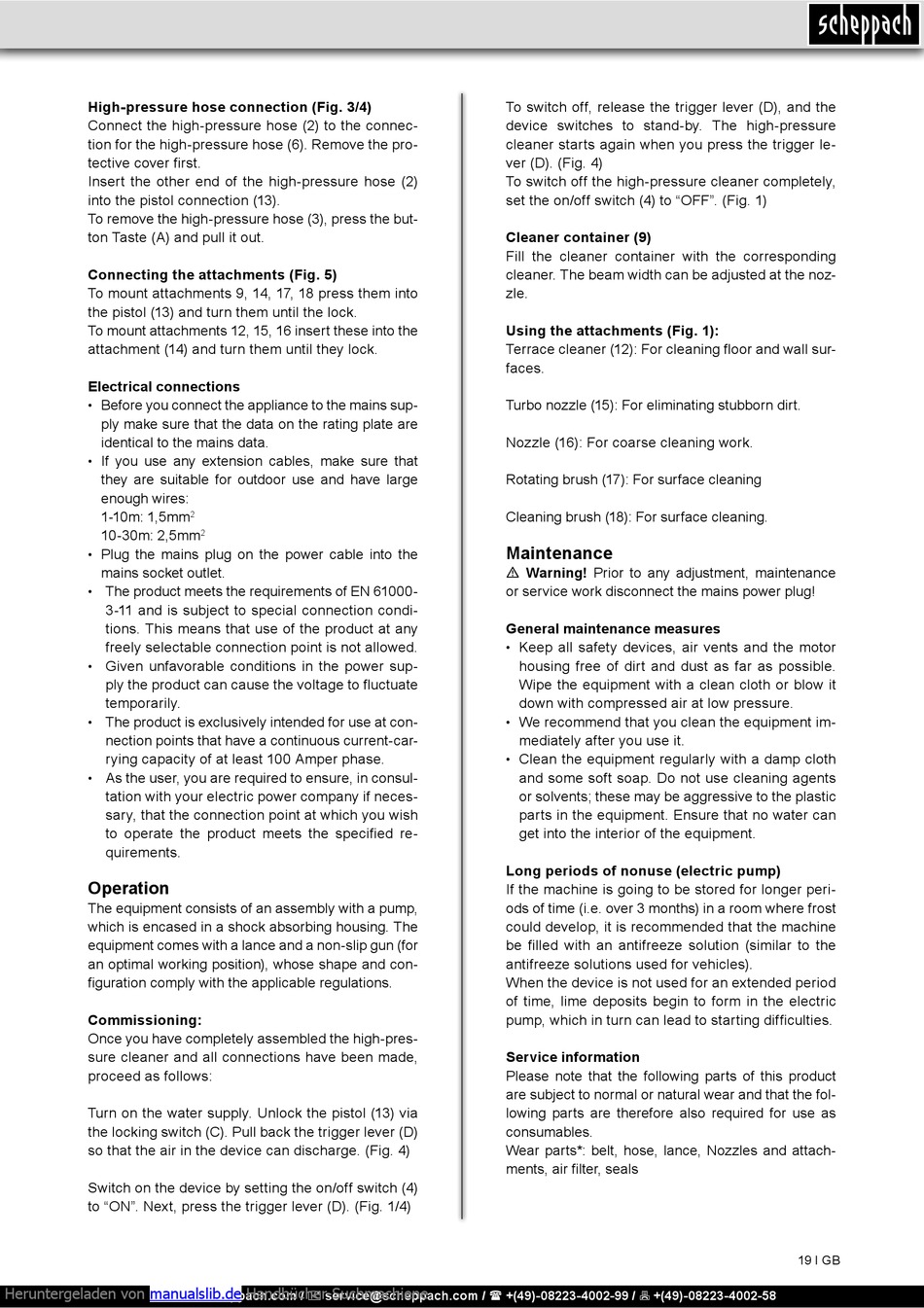

High-pressure hose connection (Fig. 3/4)
Connect the high-pressure hose (2) to the connec-
tion for the high-pressure hose (6). Remove the pro-
tective cover first.
Insert the other end of the high-pressure hose (2)
into the pistol connection (13).
To remove the high-pressure hose (3), press the but-
ton Taste (A) and pull it out.
Connecting the attachments (Fig. 5)
To mount attachments 9, 14, 17, 18 press them into
the pistol (13) and turn them until the lock.
To mount attachments 12, 15, 16 insert these into the
attachment (14) and turn them until they lock.
Electrical connections
Before you connect the appliance to the mains sup-
•
ply make sure that the data on the rating plate are
identical to the mains data.
If you use any extension cables, make sure that
•
they are suitable for outdoor use and have large
enough wires:
1-10m: 1,5mm
10-30m: 2,5mm
Plug the mains plug on the power cable into the
•
mains socket outlet.
The product meets the requirements of EN 61000-
•
3-11 and is subject to special connection condi-
tions. This means that use of the product at any
freely selectable connection point is not allowed.
Given unfavorable conditions in the power sup-
•
ply the product can cause the voltage to fluctuate
temporarily.
The product is exclusively intended for use at con-
•
nection points that have a continuous current-car-
rying capacity of at least 100 Amper phase.
As the user, you are required to ensure, in consul-
•
tation with your electric power company if neces-
sary, that the connection point at which you wish
to operate the product meets the specified re-
quirements.

Operation

The equipment consists of an assembly with a pump,
which is encased in a shock absorbing housing. The
equipment comes with a lance and a non-slip gun (for
an optimal working position), whose shape and con-
figuration comply with the applicable regulations.
Commissioning:
Once you have completely assembled the high-pres-
sure cleaner and all connections have been made,
proceed as follows:
Turn on the water supply. Unlock the pistol (13) via
the locking switch (C). Pull back the trigger lever (D)
so that the air in the device can discharge. (Fig. 4)
Switch on the device by setting the on/off switch (4)
to "ON". Next, press the trigger lever (D). (Fig. 1/4)
Heruntergeladen von manualslib.de
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58 www.scheppach.com
2
2
Handbücher-Suchmachiene
service@scheppach.com
To switch off, release the trigger lever (D), and the
device switches to stand-by. The high-pressure
cleaner starts again when you press the trigger le-
ver (D). (Fig. 4)
To switch off the high-pressure cleaner completely,
set the on/off switch (4) to "OFF". (Fig. 1)
Cleaner container (9)
Fill the cleaner container with the corresponding
cleaner. The beam width can be adjusted at the noz-
zle.
Using the attachments (Fig. 1):
Terrace cleaner (12): For cleaning floor and wall sur-
faces.
Turbo nozzle (15): For eliminating stubborn dirt.
Nozzle (16): For coarse cleaning work.
Rotating brush (17): For surface cleaning
Cleaning brush (18): For surface cleaning.

Maintenance

m Warning! Prior to any adjustment, maintenance
or service work disconnect the mains power plug!
General maintenance measures
Keep all safety devices, air vents and the motor
•
housing free of dirt and dust as far as possible.
Wipe the equipment with a clean cloth or blow it
down with compressed air at low pressure.
We recommend that you clean the equipment im-
•
mediately after you use it.
• Clean the equipment regularly with a damp cloth
and some soft soap. Do not use cleaning agents
or solvents; these may be aggressive to the plastic
parts in the equipment. Ensure that no water can
get into the interior of the equipment.
Long periods of nonuse (electric pump)
If the machine is going to be stored for longer peri-
ods of time (i.e. over 3 months) in a room where frost
could develop, it is recommended that the machine
be filled with an antifreeze solution (similar to the
antifreeze solutions used for vehicles).
When the device is not used for an extended period
of time, lime deposits begin to form in the electric
pump, which in turn can lead to starting difficulties.
Service information
Please note that the following parts of this product
are subject to normal or natural wear and that the fol-
lowing parts are therefore also required for use as
consumables.
Wear parts*: belt, hose, lance, Nozzles and attach-
ments, air filter, seals
