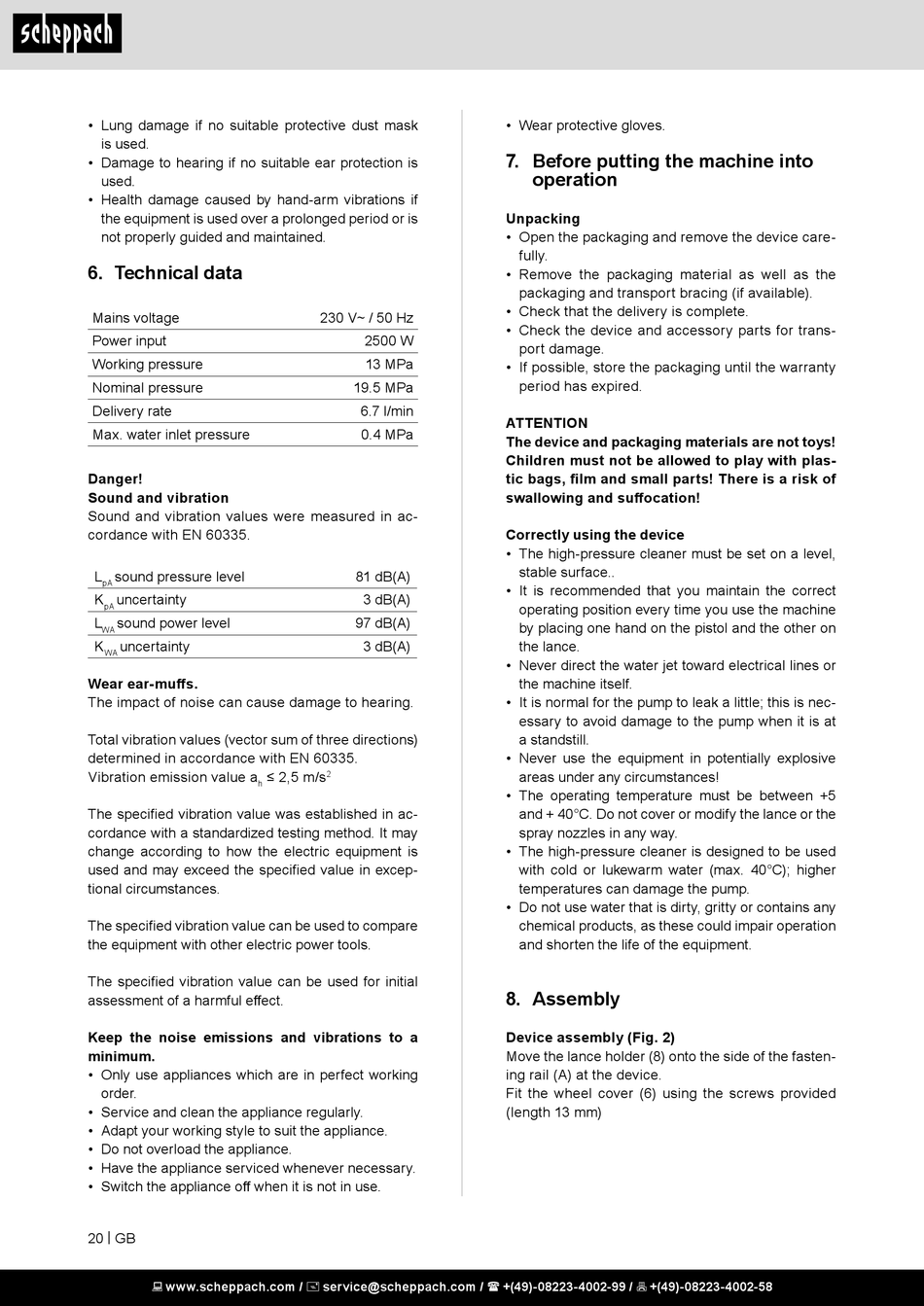

Technical Data; Before Putting The Machine Into Operation; Unpacking; Assembly - Scheppach HCE2500i Originalbetriebsanleitung

• Lung damage if no suitable protective dust mask
is used.
• Damage to hearing if no suitable ear protection is
used.
• Health damage caused by hand-arm vibrations if
the equipment is used over a prolonged period or is
not properly guided and maintained.

6. Technical data

Mains voltage
Power input
Working pressure
Nominal pressure
Delivery rate
Max. water inlet pressure
Danger!
Sound and vibration
Sound and vibration values were measured in ac-
cordance with EN 60335.
L sound pressure level
pA
K uncertainty
pA
L sound power level
WA
K uncertainty
WA
Wear ear-muffs.
The impact of noise can cause damage to hearing.
Total vibration values (vector sum of three directions)
determined in accordance with EN 60335.
Vibration emission value a
h
The specified vibration value was established in ac-
cordance with a standardized testing method. It may
change according to how the electric equipment is
used and may exceed the specified value in excep-
tional circumstances.
The specified vibration value can be used to compare
the equipment with other electric power tools.
The specified vibration value can be used for initial
assessment of a harmful effect.
Keep the noise emissions and vibrations to a
minimum.
• Only use appliances which are in perfect working
order.
• Service and clean the appliance regularly.
• Adapt your working style to suit the appliance.
• Do not overload the appliance.
• Have the appliance serviced whenever necessary.
• Switch the appliance off when it is not in use.
20 | GB
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
230 V~ / 50 Hz
2500 W
13 MPa
19.5 MPa
6.7 l/min
0.4 MPa
81 dB(A)
3 dB(A)
97 dB(A)
3 dB(A)
≤ 2,5 m/s
2
• Wear protective gloves.
7. Before putting the machine into
operation

Unpacking

• Open the packaging and remove the device care-
fully.
• Remove the packaging material as well as the
packaging and transport bracing (if available).
• Check that the delivery is complete.
• Check the device and accessory parts for trans-
port damage.
• If possible, store the packaging until the warranty
period has expired.
ATTENTION
The device and packaging materials are not toys!
Children must not be allowed to play with plas-
tic bags, film and small parts! There is a risk of
swallowing and suffocation!
Correctly using the device
• The high-pressure cleaner must be set on a level,
stable surface..
• It is recommended that you maintain the correct
operating position every time you use the machine
by placing one hand on the pistol and the other on
the lance.
• Never direct the water jet toward electrical lines or
the machine itself.
• It is normal for the pump to leak a little; this is nec-
essary to avoid damage to the pump when it is at
a standstill.
• Never use the equipment in potentially explosive
areas under any circumstances!
• The operating temperature must be between +5
and + 40°C. Do not cover or modify the lance or the
spray nozzles in any way.
• The high-pressure cleaner is designed to be used
with cold or lukewarm water (max. 40°C); higher
temperatures can damage the pump.
• Do not use water that is dirty, gritty or contains any
chemical products, as these could impair operation
and shorten the life of the equipment.

8. Assembly

Device assembly (Fig. 2)
Move the lance holder (8) onto the side of the fasten-
ing rail (A) at the device.
Fit the wheel cover (6) using the screws provided
(length 13 mm)
