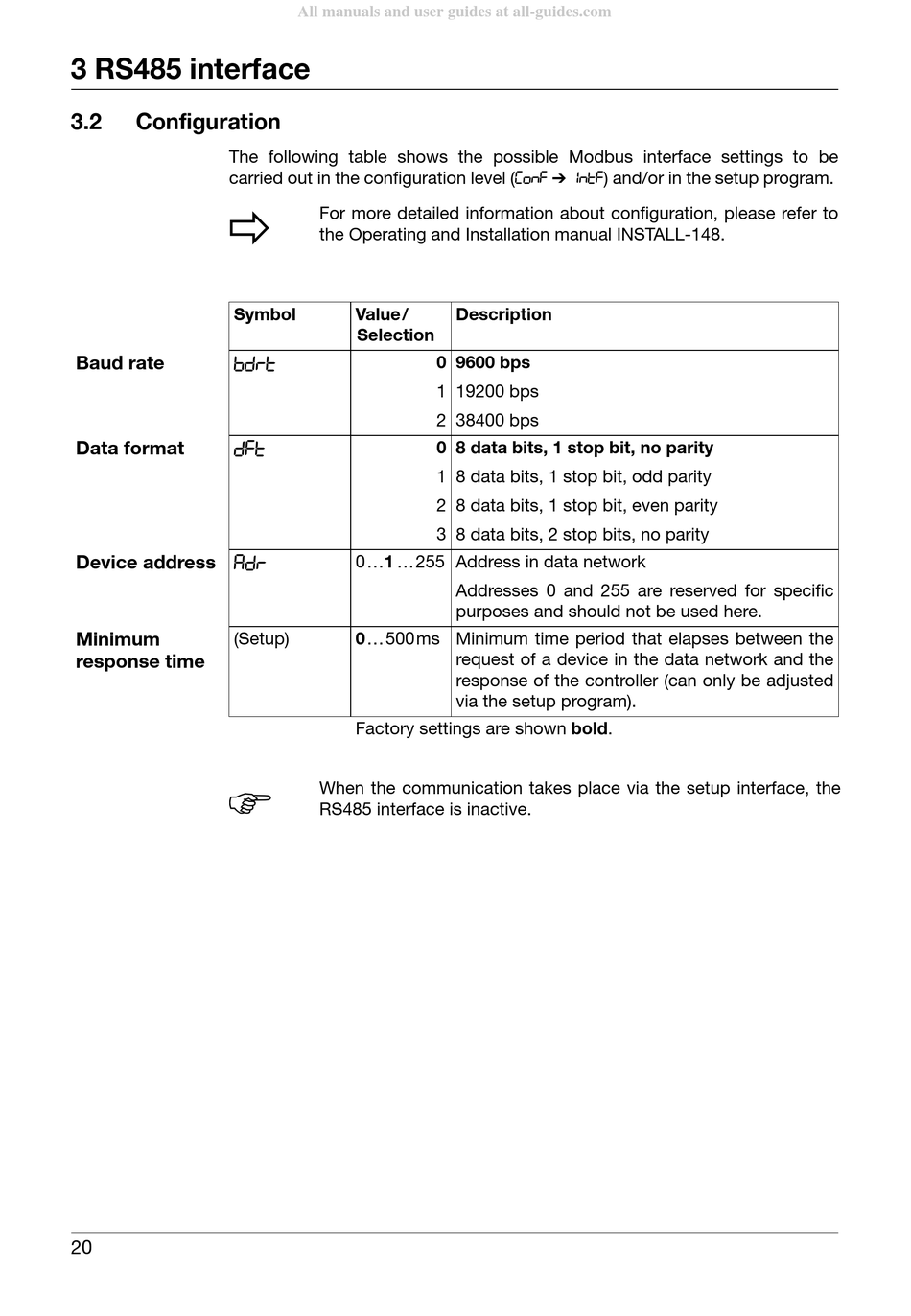

3 RS485 interface
3.2

Configuration

The following table shows the possible Modbus interface settings to be
carried out in the configuration level (ConF
v
Symbol
Baud rate
bdrt
Data format dFt
Device address
Adr
Minimum (Setup)
response time
H
20
All manuals and user guides at all-guides.com
For more detailed information about configuration, please refer to
the Operating and Installation manual INSTALL-148.
Value/ Description
Selection
0 9600 bps
1 19200 bps
2 38400 bps
0 8 data bits, 1 stop bit, no parity
1 8 data bits, 1 stop bit, odd parity
2 8 data bits, 1 stop bit, even parity
3 8 data bits, 2 stop bits, no parity
0...1 ...255 Address in data network
Addresses 0 and 255 are reserved for specific
purposes and should not be used here.
0...500ms Minimum time period that elapses between the
request of a device in the data network and the
response of the controller (can only be adjusted
via the setup program).
Factory settings are shown bold.
When the communication takes place via the setup interface, the
RS485 interface is inactive.
➔
IntF) and/or in the setup program.
