Exchange of sensor on Prosonic M FMU42/FMU44

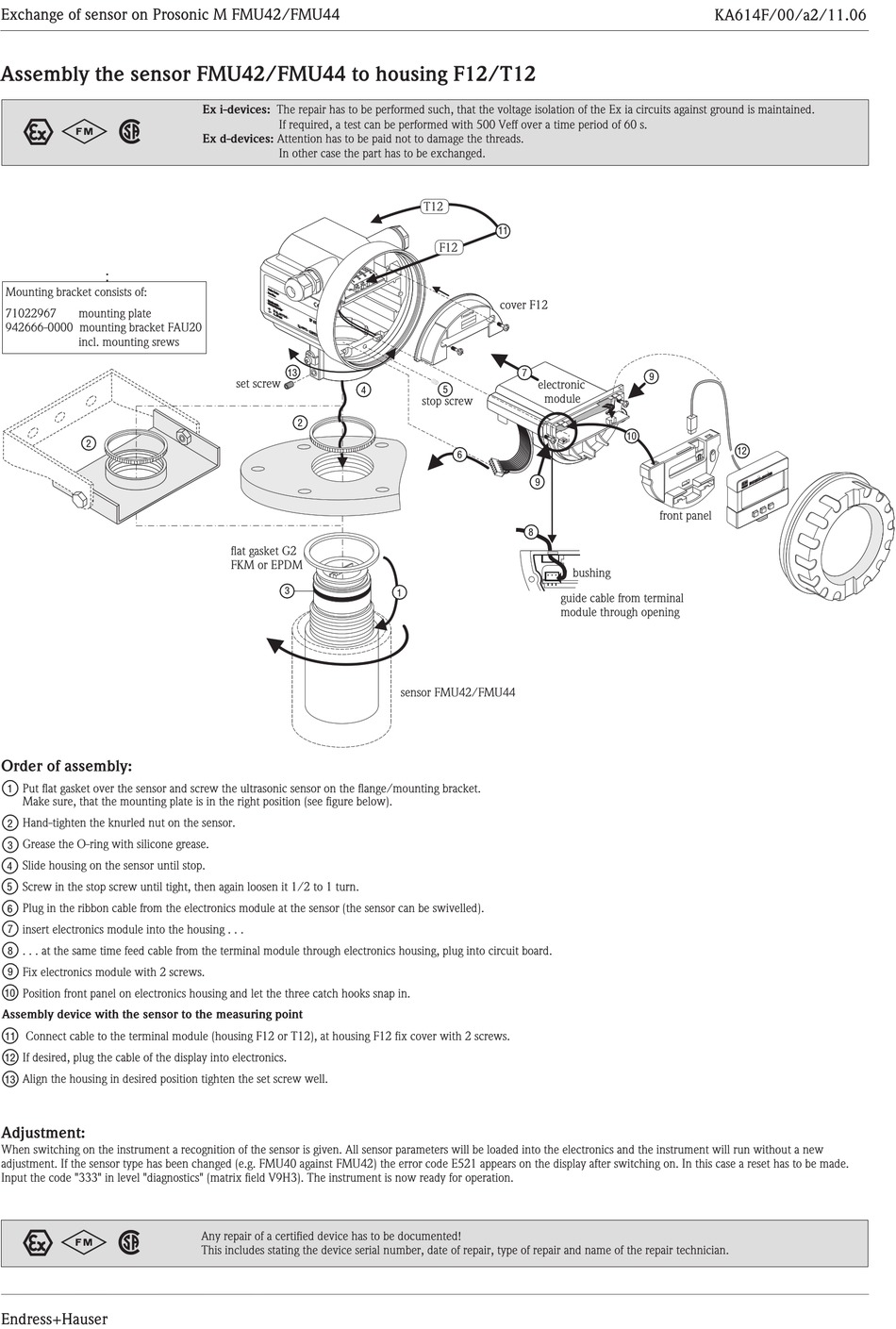

Assembly the sensor FMU42/FMU44 to housing F12/T12
0 2 1
:
Mounting bracket consists of:
71022967 mounting plate
942666-0000 mounting bracket FAU20
incl. mounting srews
2
Order of assembly:
Put flat gasket over the sensor and screw the ultrasonic sensor on the flange/mounting bracket.
1
Make sure, that the mounting plate is in the right position (see figure below).
Hand-tighten the knurled nut on the sensor.
2
Grease the O-ring with silicone grease.
3
Slide housing on the sensor until stop.
4
Screw in the stop screw until tight, then again loosen it 1/2 to 1 turn.
5
Plug in the ribbon cable from the electronics module at the sensor (the sensor can be swivelled).
6
7 insert electronics module into the housing . . .
8 . . . at the same time feed cable from the terminal module through electronics housing, plug into circuit board.
Fix electronics module with 2 screws.
9
10 Position front panel on electronics housing and let the three catch hooks snap in.
Assembly device with the sensor to the measuring point
11 Connect cable to the terminal module (housing F12 or T12), at housing F12 fix cover with 2 screws.
If desired, plug the cable of the display into electronics.
12
Align the housing in desired position tighten the set screw well.
13
Adjustment:
When switching on the instrument a recognition of the sensor is given. All sensor parameters will be loaded into the electronics and the instrument will run without a new
adjustment. If the sensor type has been changed (e.g. FMU40 against FMU42) the error code E521 appears on the display after switching on. In this case a reset has to be made.
Input the code "333" in level "diagnostics" (matrix field V9H3). The instrument is now ready for operation.
0 2 1
Endress+Hauser
Ex i-devices: The repair has to be performed such, that the voltage isolation of the Ex ia circuits against ground is maintained.
If required, a test can be performed with 500 Veff over a time period of 60 s.
Ex d-devices: Attention has to be paid not to damage the threads.
In other case the part has to be exchanged.
O rd O rd
e r C e r C
o d e o d e
S e r. S e r.
-N o -N o : :
.: .:
M e M e
ss b ss b
M e M e e re e re
as u as u ic h ic h
ri n g ri n g
ra n ra n
g e g e
U 1 U 1
6 .. .3 6 .. .3
4 .. .2 4 .. .2
6 V 6 V
0 m 0 m
D C D C
A A
I P 6 I P 6
5 5
T T
A A > 7 0 > 7 0
°C °C
:
:
t > t >
8 5 °C 8 5 °C
13
set screw
4
2
flat gasket G2
FKM or EPDM
3
Any repair of a certified device has to be documented!
This includes stating the device serial number, date of repair, type of repair and name of the repair technician.
T12
11
F12
cover F12
a l
m in
T e r
7
electronic
5
module
stop screw
6
9
8
1
guide cable from terminal
module through opening
sensor FMU42/FMU44
KA614F/00/a2/11.06
9
10
10
12
front panel
bushing
