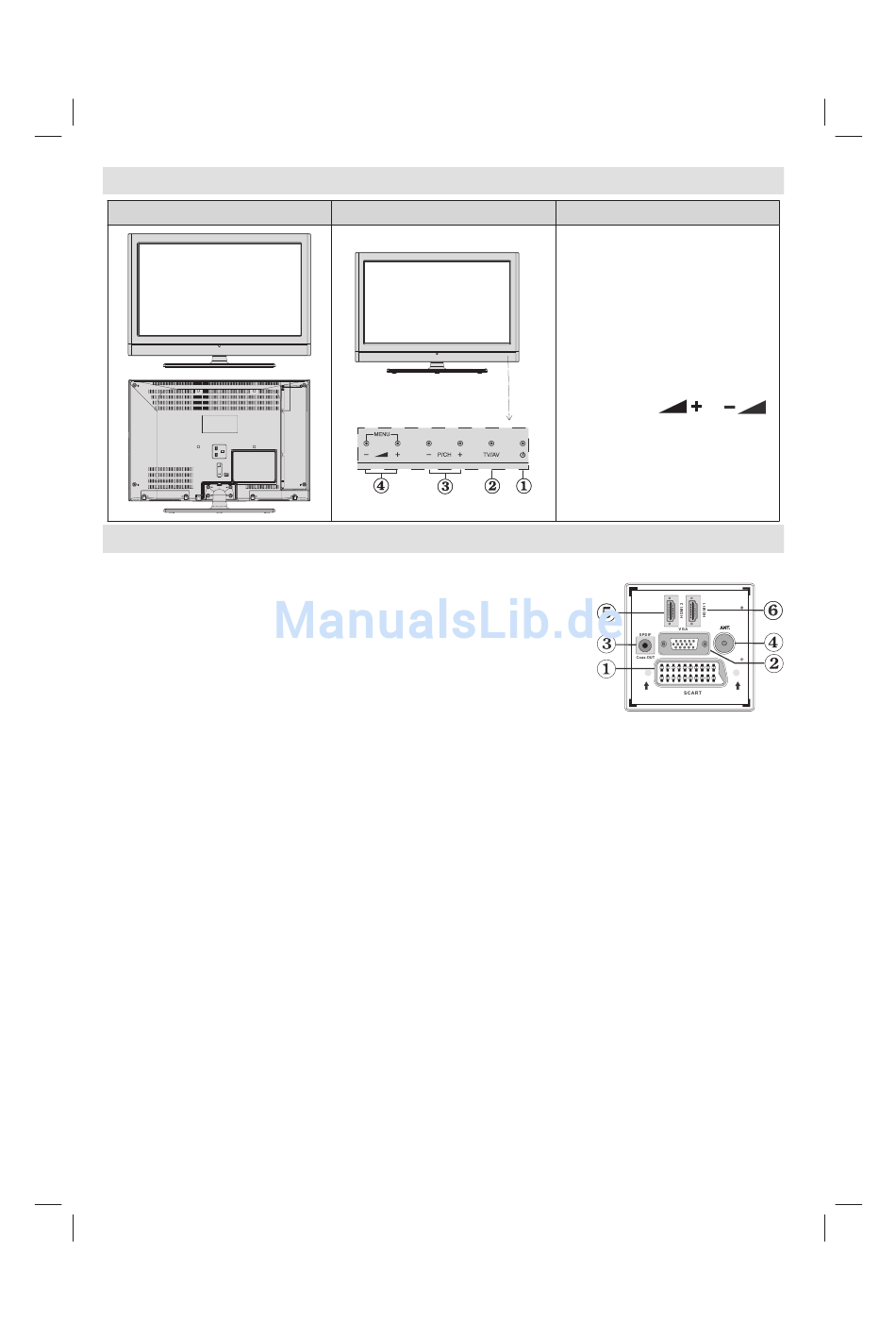

LCD TV and Operating Buttons
FRONT and REAR VIEW
Viewing the Connections- Back Connectors
1.
SCART socket inputs or outputs for external devices.
Connect the SCART cable between SCART socket on TV and SCART
socket on your external device (such as a decoder, a VCR or a DVD
player).
Note: If an external device is connected via the SCART socket, the TV
will automatically switch to AV mode.
2.
PC Input is for connecting a personal computer to the TV set.
Connect the PC cable between the PC INPUT on the TV and the PC
output on your PC. Please do not connect a device to YPbPr socket
while using PC input..
3.
S/PDIF Coaxial Out
4.
RF Input connects to an antenna or a cable.
Note that if you use a decoder or a media recorder, you should connect the aerial cable through the
device to the television with an appropriate antenna cable, as shown in the illustration in the following
pages.
5.
HDMI
2: HDMI input
6.
HDMI
1: HDMI input
HDMI Input is for connecting a device that has an HDMI socket.
Your LCD Television is capable of displaying High De¿ nition pictures from devices such as a High
De¿ nition Satellite Receiver or DVD Player. These devices must be connected via the HDMI sockets
or Component Socket. These sockets can accept either 480i, 480p, 576p, 576i, 720p, 1080i, 1080p
signals. No sound connection is needed for an HDMI to HDMI connection.
When you use the wall mount kit (optional) with the LCD TV, we would de¿ nitely recommend to plug all your cables into the
back of the LCD before mounting to the wall.
02_MB45M_[GB]_1810UK_ANALOG_NICKEL13_26740W_10067855_50165425.indd 28
SIDE VIEW
outputs digital audio signals of the currently watched source.
English - 28 -
Control Buttons
1.
Standby button
2.
TV/AV button
3.
Programme Up/Down
buttons
4.
Volume Up/Down buttons
Note: Press "
" /"
buttons at the same time to view
main menu.
