- Lower the upper surface to the required height and insert
the protection plug of the blade-holding shaft, lower the
table.
HAZARD:
The movable shield 11 will return to the correct
position automatically when the machine head is
lowered, without having to reposition the pawl.
HAZARD:
Mount the protection plug to prevent dust from
entering.
HAZARD:
Never install blades which appear cracked. Only
install blades which comply with standard EN 847-
1.

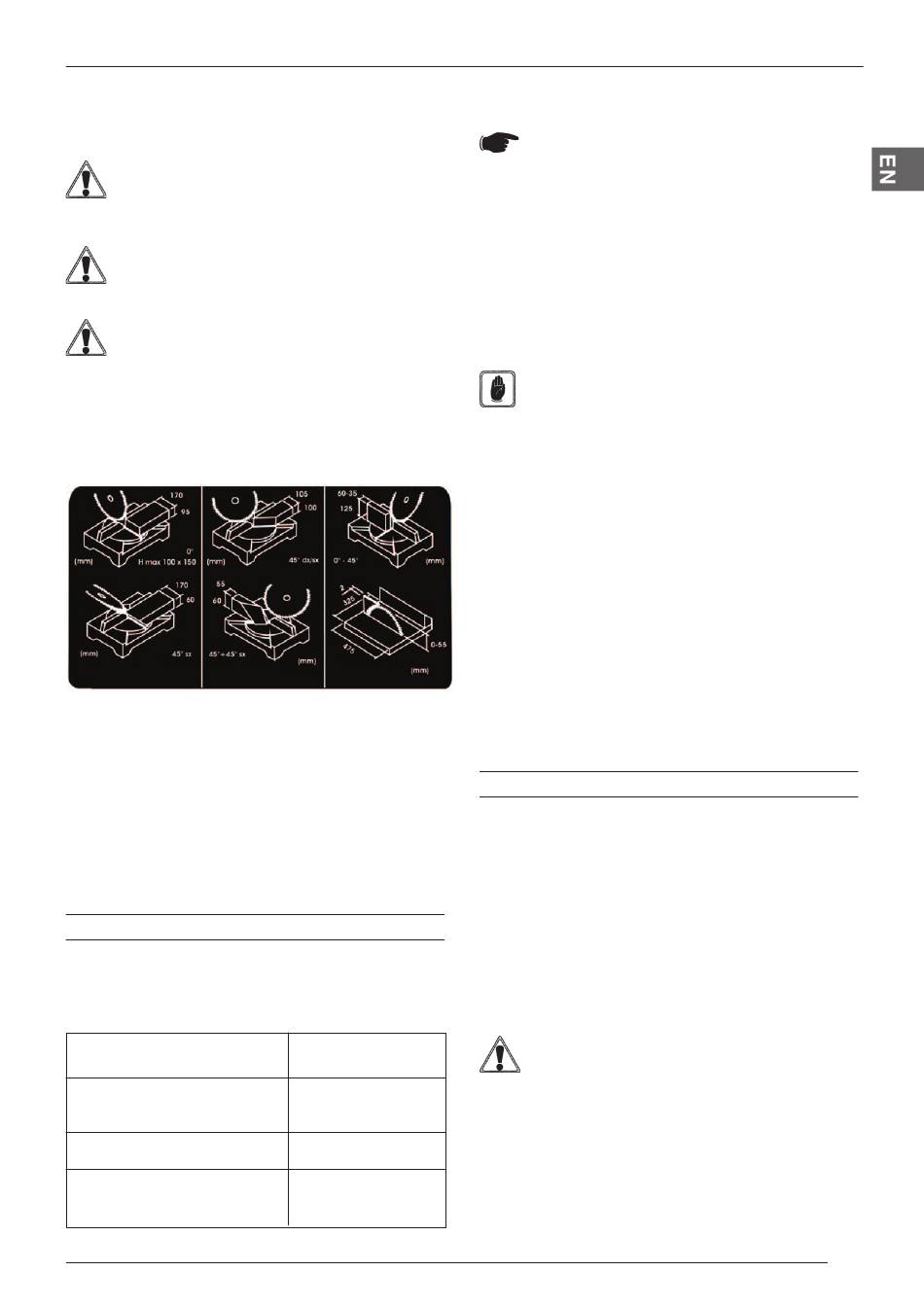

4.4 CUTTING CAPACITY (Fig. 9)
The following tables specifies the cutting capacity at 0° and
45° which may be achieved under the normal conditions of
use illustrated in this manual.
4.5 SUPPLEMENTARY SUPPORT BASE
Your cutting-off machine is fitted with a supplementary support
base to increase the supporting surface of the workpiece in
the base. All types of cuts may be carried out with it, with the
vertical head (e.g.: 90°, 45° RH-LH etc.). For all work carried
out with the tilted head you must loosen the knob and remove
the supplementary support base. After having completed the
cuts with the tilted head it is advisable to reinsert the
supplementary support base into the specific holes and tighten
the knob to secure the base.
5

ACCESSORIES

5.1 SELECTION OF THE BLADE
The mitre-saw is fitted with a WIDIA blade (305 diameter x
30 hole x 2,5 thickness mm. ),
The following blades are available:
Blade D.305 mm. 48 Teeth
Blade D.305 mm. 72 Teeth
Blade D.305 mm. 96 Teeth
Blade D.305mm. 96 Teeth for
alluminium
To cut domestic and
exotic, hard and soft
To cut chipboards and
laminates to a
maximum 30 mm
To cut frames
To cut alluminium and
plastics
5.2 ASSEMBLY AND ADJUSTMENT OF THE SIDE BAR
SUPPORT (Fig. 12) (OPTIONAL)
NOTE:
If you need to cut parts that protrude excessively
from the work table, use the side bar support in
order to prevent the part from turning over.
- Fit in the two inserts 41 and the bar 42 in the holes
provided 43: the device can be inserted either on the right-
hand or left-hand side of the machine, as needed.
- Adjust the height of the table by turning the two inserts
simultaneously and in the same direction.
- Once the correct heigth has been set, lock the device with
the two dowels 55.
5.3 ASSEMBLY AND ADJUSTMENT OF THE VERTICAL
CLAMP (Fig. 14)
CAUTION:
When cutting bars or pieces of aluminium or plastic,
use of the clamp is advisable to hold the piece firmly
against the angular bearings, thus avoiding
movement during cutting and, therefore, jams
which could damage both the workpiece and the
blade.
- Insert the pin 49 in the hole provided 50 and lock it.
- Insert the clamp 52 on the pin 49 and lock it at the desired
height with the knob 54.
- Screw the upper knob 53 to lock the piece to be cut.
5.4 SUCTION OF DUST RESIDUES
(Fig.15) (OPTIONAL)
The mitre-saw can be connected to an aspirator or a dust
collection bag can be mounted by means of the exhaust
manifold 13.
The aspirator pipe or the bag sleeve must be secured to the
manifold by means of a band. Users are reminded to empty
the bag or aspirator container and to clean the filter regularly.
The air output speed must be equivalent to at least 100 Nm
h.
For example, "dustbin" type aspirators are suitable.
6

MAINTENANCE

6.1 REGULAR MAINTENANCE
The regular maintenance decribed above and in the
paragraph below can be carried out by unskilled personnel.
1. Do not oil the mitre-saw, cause cutting must be carried
out in dry conditions (including the cutting of aluminium
and aluminium alloys); all rotating parts are self-
lubricating.
2. During maintenance, wear protective gear if possible
(accident-prevention goggles and gloves).
3. Remove cuttings when necessary both from the cutting
area, work surfaces and support bases.
Use of an aspirator or brush is recommended.
HAZARD:
Do not use compressed air jets!
4. Regularly check blade conditions: if difficulties should
arise during cutting, have it sharpened by skilled
personnel or replace it if necessary.
5. Periodically, check that the blade comes to a complete
standstill within 10 seconds of releasing the button, and
that the arm's spring allows the arm to return back up to
its mechanical stop within 2 seconds; in the event of either
of these test returning a negative outcome, get your
machine serviced by an authorized technician.
