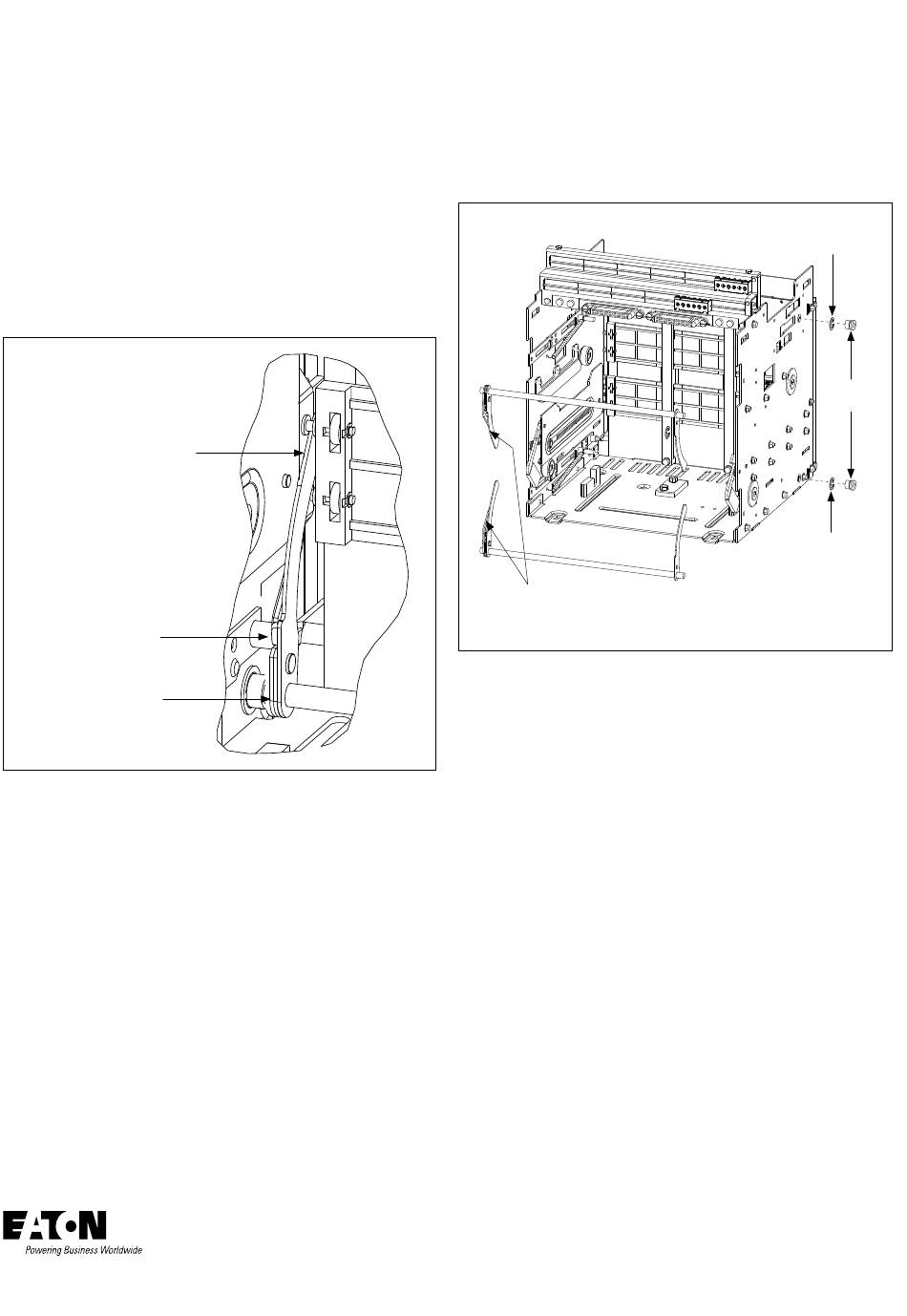

Step 6: Refer to Figure 8 for an exploded view of the
shaft assemblies.
1. Position the tips of the shaft arms between the pins on the
shutters. Maintain this position during the assembly.
2. Extend the other end of shaft through holes on other side sheets
(without shaft collars). Then position slot on the shaft arm over
the pin on the shutter link.
3. Insert the shaft end into the shaft collar, and into center-bearing
plates. Check the positions of the shaft arms between the
shutter pins, and the slot on shaft arm over shutter link pin.
1. Position Tips of Shaft
Arms and Maintain
2. Position Slot on
Shaft Arm
3. Insert Shaft End and
Check Positions
Figure 8. Step 6
Eaton Industries GmbH
Electrical Sector
©2010 by Eaton Industries GmbH
Änderungen vorbehalten
Subject to alterations
08/10 AWA1230-2579 / Z9266
Moon/Doku/Heng
Printed in USA (08/10)
Step 7: To install the shutter shaft assemblies, insert the two
remaining shaft collars through the other side sheet and onto the
other ends of the shafts. Fasten grooves on these collars with
retaining rings.
Left Side Mounting Shown for Both Upper
and Lower Shaft Assemblies (shafts are
reversed for right side mounting)
Figure 9. Step 7
IZM20/IZM32 Shutters
IZM-SH203/IZM-SH204
and IZM-SH323/IZM-SH324
Retaining Ring
Attaches Inside
Cassette
Retaining Ring
Attaches Inside
Cassette
Shaft
Collar
