DVI-D – Anschluss (Option)
Pin Signalname
1 TMDS2–
2 TMDS2–
3 GND
4–5 NC
6 DVI_SCL
7 DVI_SDA
8 DVI_VS
9 TMDS1–
10 TMDS1+
11 GND
12–13 NC
14 DVI_5V
GND
15
DISPDET
16
17 TMDS0–
18 TMDS0+
19 GND
20–21 NC
22 GND
23 TMDSSCL–
24 TMDSSCL+
INLine-P3_e – Benutzerhandbuch
Technischer Anhang – Schnittstellen
Beschreibung
Differential TMDS Data 2–
Differential TMDS Data 2+
TMDS Shield
Reserved for future use
DDC EDID data clock
DDC EDID data
Analog VSYNC
Differential TMDS Data 1–
Differential TMDS Data 1+
TMDS Shield
Reserved for future use
5V / 100mA Power Supply
Ground
Hot Plug Detection
Differential TMDS Data 0–
Differential TMDS Data 0+
TMDS Shield
Reserved for future use
TMDS Shield
Differential TMDS Clock–
Differential TMDS Clock +

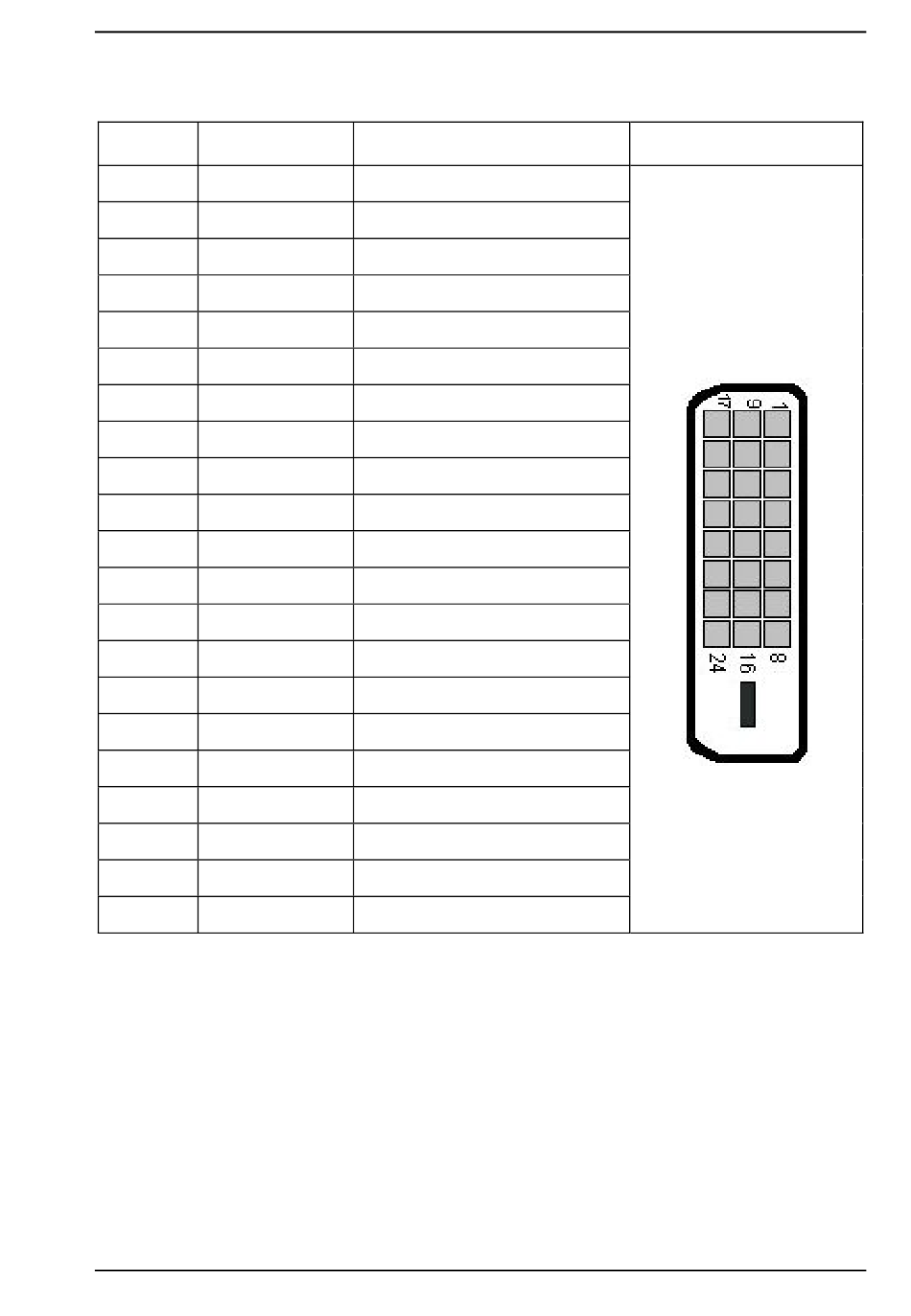

DVI-D-Buchse
