Tylo SENSE COMBI Pure Installationsanleitung Seite 46

44
Control Panel(s)
Dipswitch

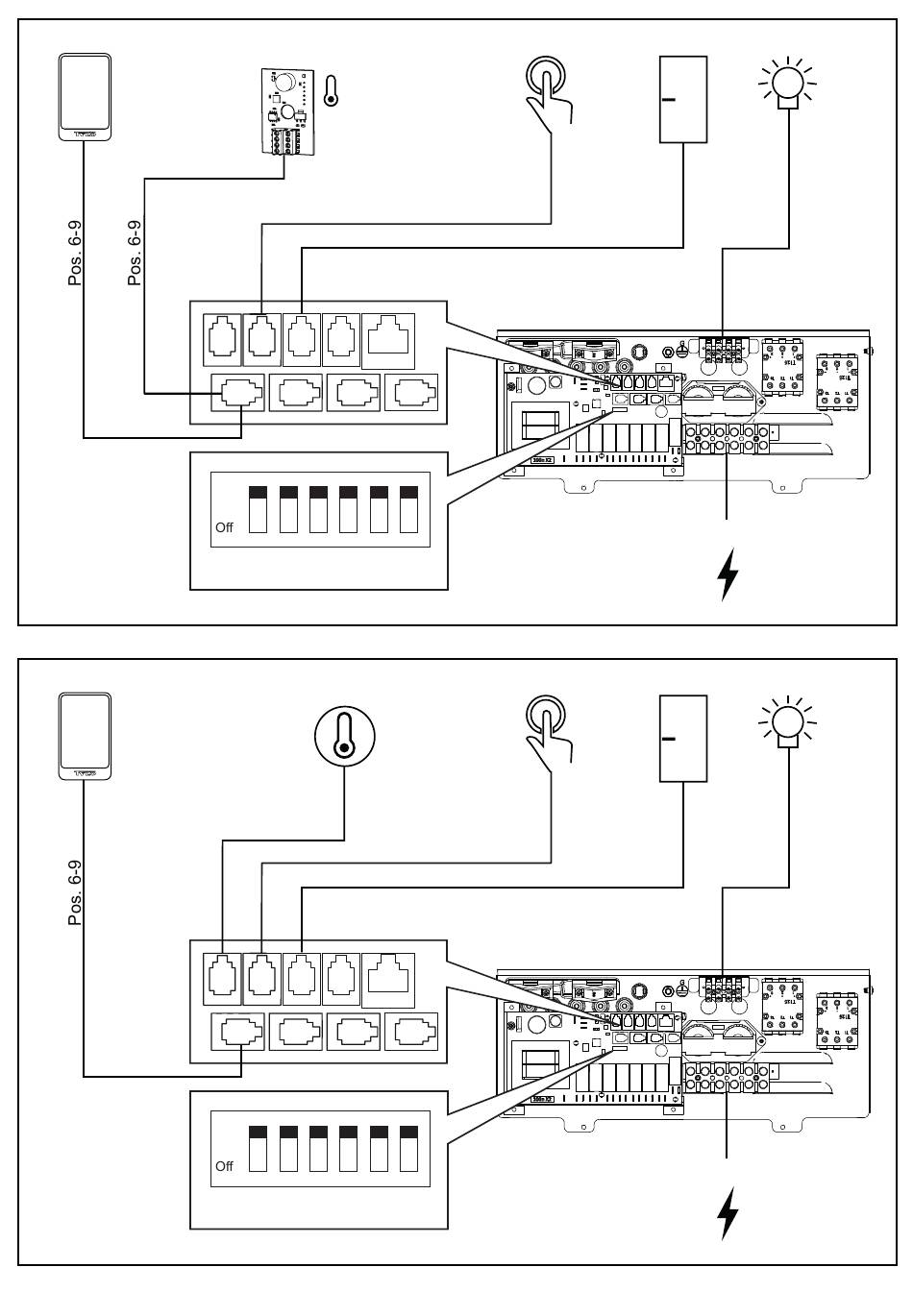

Рис. 19. Схема установки Sense Combi Elite
Control Panel(s)
Dipswitch
Рис. 20. Схема установки Sense Combi Pure
Temp/humidity Sensor
Sense Combi ELITE
%
1 2 3 4
6 7 8
Combi - manual
On
1 2 3 4
Factory settings
Temp Sensor
Sense Combi PURE
1 2 3 4
6 7 8
Combi - manual
On
1 2 3 4
Factory settings
External Switch
5
9
CTS
5 6
External Switch
5
9
CTS
5 6
Door Switch
Light
Distribution Box
Door Switch
Light
Distribution Box
