Back Panel; Figure 2 . Camera Control System Back Panel; Table 2. Back Panel Connectors - Depuy Synthes PUREVUE 242302 Gebrauchsanweisung

3.2

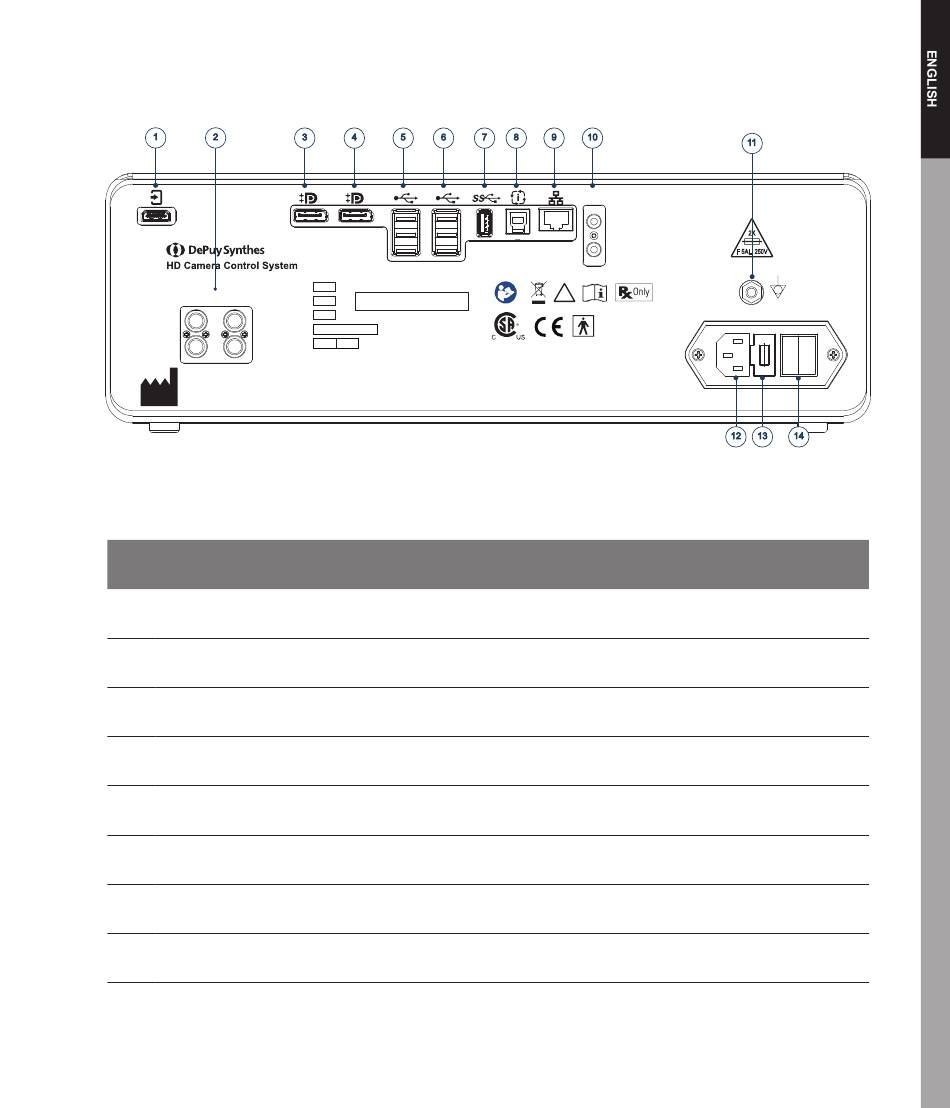

Back Panel

1 2
3G-SDI OUTPUT
1 3
2 4
Medos International SARL
Chemin-Blanc 38
2400 Le Locle, Switzerland
No. Description
1 HDMI Video Port Input
2 Four (4) 3G-SDI Video Ports Output
3 DisplayPort Video Port Output (1)
4
DisplayPort Video Port Output (2)
5
Three (3) USB-A 2 .0 Female Ports
6 Three (3) USB-A 2 .0 Female Ports
7 USB-A 3 .0 Female Port
8 Service Port . For future use . The service port has no functions available to the user .
3 4 5 6 7
1 2
GTIN (01)10886705028702
SN (21) 000000
REF 242302
ASSEMBLED IN USA
US REP
DePuy Mitek Inc.
325 Paramount Drive
Raynham, MA 02767
+01 1(800) 382-4682
Figure 2. Camera Control System

Table 2. Back Panel Connectors

13
8 9 10
REMOTES
1
2
!
258922
Conforms to AAMI STD ES60601-1
IEC STD 60601-1-6
Certified to CSA STD C22.2 # 60601-1
Back Panel
11
100-240VAC, 50/60Hz, 230VA
2X
F 5AL, 250V
103329573 REV 6
12 13 14
