8.7 Identification- & Maintenance-
Funktionen (I&M)
I&M5 data
IM_Annotation
IM_OrderID
IM_VendorID
IM_Serial_Number
IM_Hardware_Revision
IM_Software_Revision
Tabelle 26: I&M 5 (Slot 1: IO System 1.2 - 1.9, Index 0xAFF5)

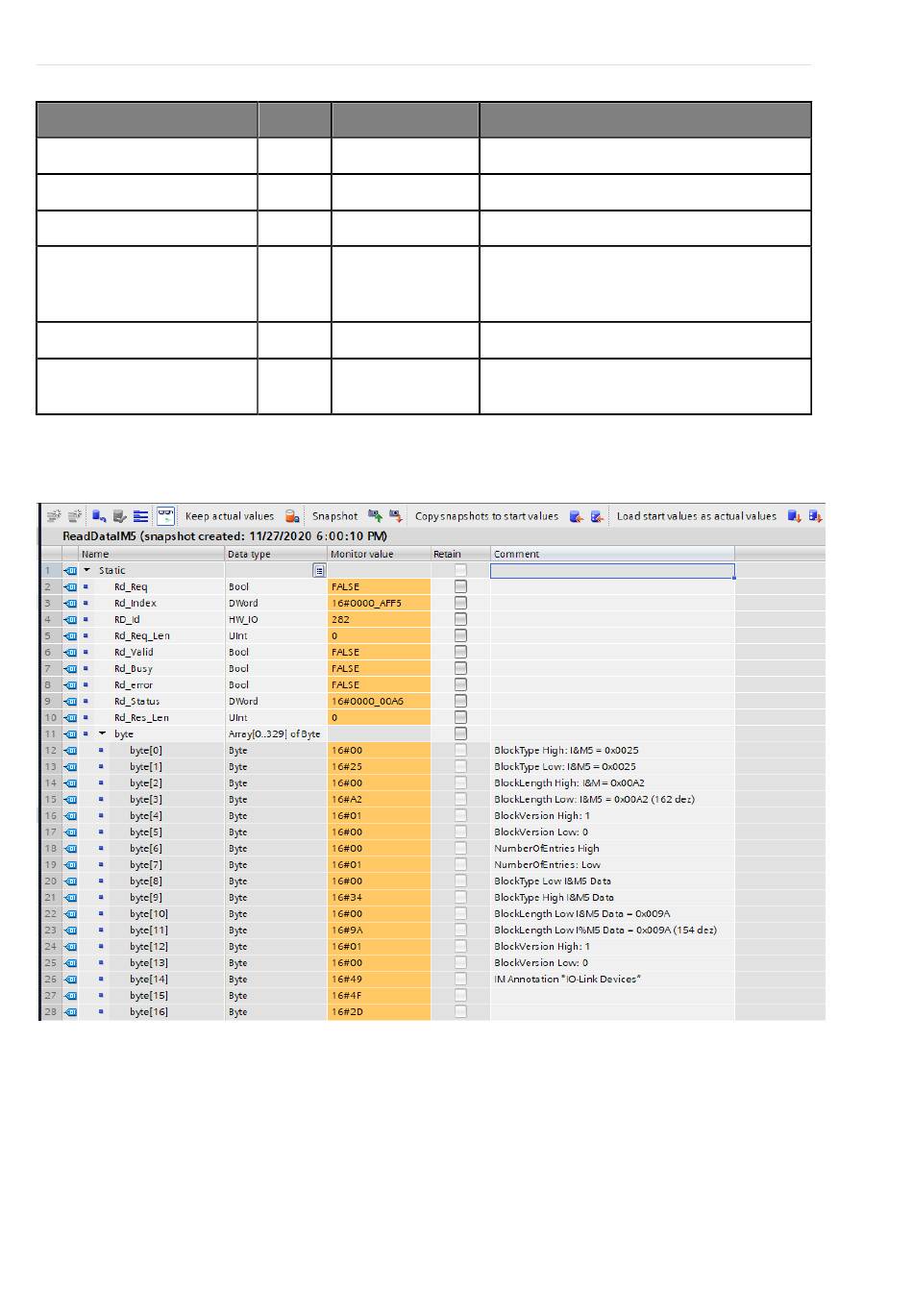

Abb. 47: "Read"-Beispiel I&M5 an Port X1 mit angeschlossenem
IOL-Device
108
Octets Data type
64 String (UTF8)
64 Visible String
2 Unsigned16
16 Visible String
2 Unsigned8
4 Char,3 x
Unsigned8
8 Konfiguration und Betrieb mit dem
SIEMENS TIA Portal
Mapping rules
"IO-Link Devices"
"Product Name" or "DeviceID".
"VendorID"
Insert SerialNumber of device (IO-Link
Index 21). If it is not available, set to "Not
accessible".
Set to 0x0000 (default value)
Set to V0.0.0 (official release but not
detectable)
Handbuch PROFINET
Version 1.2 05/2021
®
