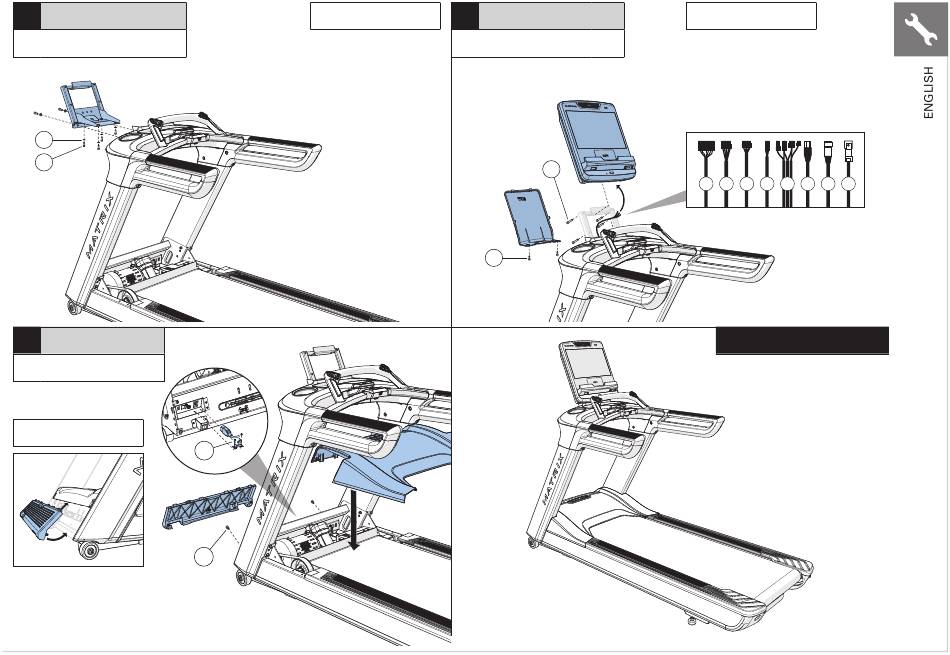

Matrix PERFORMANCE Bedienungsanleitung Seite 7

5
Hardware Qty
G Bolt 6
H Flat Washer 6
H
G
6
Hardware Qty
I Pre-installed Screw 2
J Screw (M4) 2
Torque Value
10 Nm / 7 ft-lb
Torque Value
40 Nm / 29 ft-lb
J
I
7
Hardware Qty
K Bolt 4
L Screw 2
K
L
Torque Value
40 Nm / 29 ft-lb
1 MCB Communication
2 Extension Power Wire
3 Emergency Stop
4 TV Power
5 Console Connect Wires
6 Ethernet
7 Coax
8 Ground Wire
1 2 3 4 5 6 7 8
ASSEMBLY COMPLETE
7
