MODULE PARAMETERS

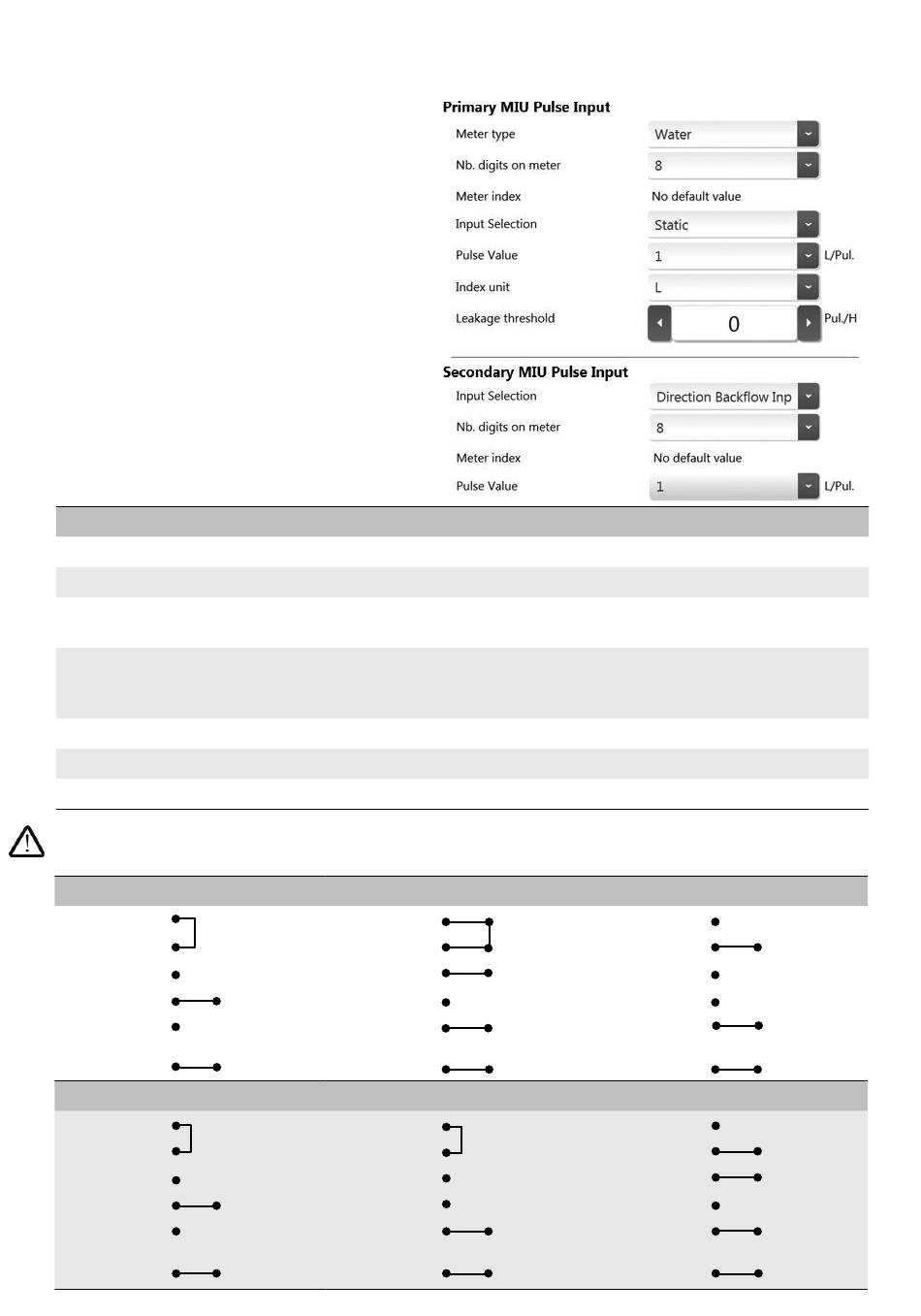

The following specific parameters related to the pulse meter are possible: Other general functional parameters from
EquaScan pulse meter RF module are possible:
• Setting the internal clock.
CAUTION: Changing the date has a direct influence on
the fixed date function!
• Setting the billing month (fixed date month).
• Setting the meter Customer serial number.
• Activating / deactivating the radio encryption.
• Setting an inductive password.
• Resetting / deleting alarms and registers:
- Removal / tamper alarm
- Monthly history
- Reverse flow register
- End-of-year indexes
You can find more precise information in the user´s
manual or the EquaScan software.
Electrical signals of the pMIU
Wire color Marking on the Device
Black GND
Green TAMP
Yellow DIR/DATA
Red REED VCC
White OPEN COLLECTOR
Brown GND
All external circuits must be SELV (Safety Extra Low Voltage) and be with limited Power Source following chapter 2.2 of EN
62368-1:2014 + A11:2017. All in- and outputs should be connected on potential-free contacts suitable for dry circuits.
Connection Wires: The wire section of the individual contact is AWG24 or 0.2 mm
Meter w. Reed Switch
GND
TAMP
DIR
REED Reed Switch
(input 1 reed)
OPEN Collector
(input 1 statistic)
GND - Reed
GND
Gas, Electric Meter w. P0 Interface
GND
TAMP
DIR
REED
P0 Signal
(input 1 reed)
OPEN Collector
(input 1 statistic)
GND GND - P0 Interf.
RF
Signal description
Ground (0V)
Cable cut tampering signal & pMIU
nected to GND (0V) of meter
pMIU pulse input : Signal for the Flow Direction/Data (logic high =
RF
forward) or useable as a secondary pMIURF pulse input ( e.g.: CF Echo
for Rep-Volume)
pMIU pulse input : Type «Reed switch»
RF
pMIU pulse input : Type «Open Collector» (solid state)
RF
Ground (0V)
CF Echo Rep E/V
GND
TAMP
DIR
REED
(input 1 reed)
OPEN Collector
(input 1 statistic)
GND
Cyble sensor (2 wires)
GND
TAMP
DIR
REED
(input 1 reed)
OPEN Collector
(input 1 statistic)
GND
activation of RF system when con-
RF
.
2
Cyble sensors (3 wires)
GND
GND - V / 18 TAMP
REP - V / 19
DIR
REED
(input 1 reed)
OPEN Collector
REP - E / 17
(input 1 statistic)
GND - E / 16 GND
Cyble sensor (5 wires)
GND
TAMP
DIR
REED
(input 1 reed)
Out LF OPEN Collector
(input 1 statistic)
GND
GND
TAMP
Out LF
GND
TAMP
DIR
Out LF
GND
