Commend WS 200V Serie Kurzanleitung Seite 2

Analogue Stations Series WS 200V, WS 210V
Connection
Potentiometer microphone sensitivity
Subscriber
Intercom Server (A,B,C,D)
A B C D
Slots for inserting
button labels
Dialling in the Intercom Server:
Button
5
Button
0
*
Button
4
*
1-button version (WS 201x)
**
2-button version (WS 202x)
*** 3-button version (WS 203x)
For technical data and configuration see the respective datasheet.
FA: Microphone adjusted ex works. If necessary the microphone sensitivity should be
set via potentiometer by an experienced technician.
Cleaning Instructions
The station may only be cleand with cleaning agents for stainless steel – in NO case with
cleaning agents containing chlorine or Isopropanol!
Potentiometer loudspeaker
Slots not at
series WS 210V
Dialling in the Intercom Server:
Button
***
**
Button
*
1-button version (WS 211x)
**
2-button version (WS 212x)

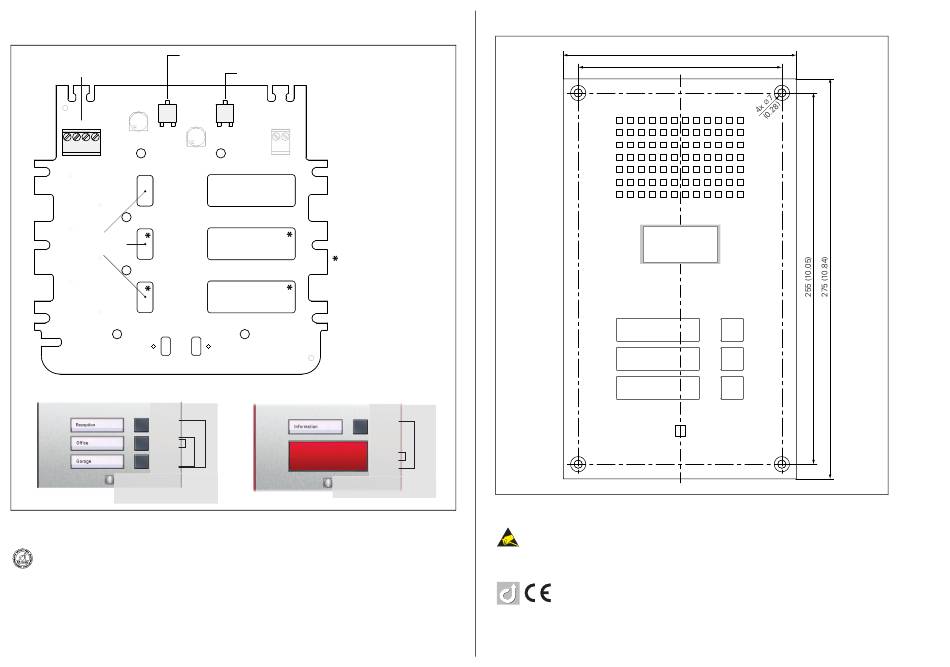

Measurements
Front panel thickness: 3 mm (0.12") / Measurements in mm (inch), not scale!
4
**
0
*
Attention
Observe the precautions for handling of electrostatic sensitive devices!
The device may be only installed by authorised engineers.
Manufacturer's reference
This equipment fulfils the requirements of the EU standard 89/336 EEC in the
current version (EN 55022, EN 55024).
Therefore this equipment is CE-labelled.
Please keep this description in safe custody!
Type: D-BZ-WS2xxVA, Version: 1.1/0110
