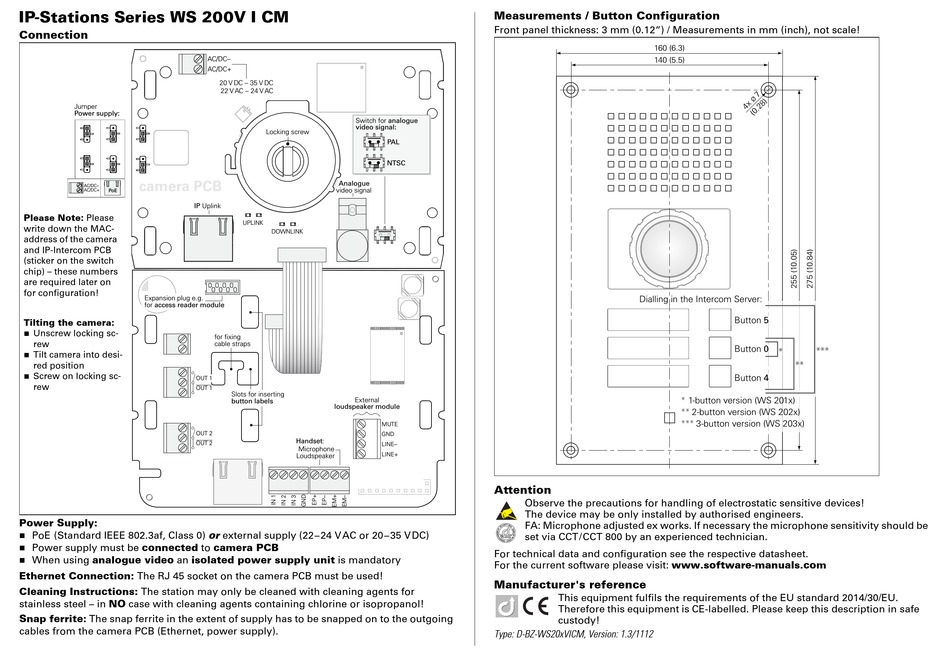

IP-Stations Series WS 200V I CM
Connection
Jumper
Power supply:
camera PCB
AC/DC–
AC/DC+
PoE
IP Uplink
Please Note: Please
write down the MAC-
address of the camera
and IP-Intercom PCB
(sticker on the switch
chip) – these numbers
are required later on
for configuration!
Expansion plug e.g.
for access reader module
Tilting the camera:
Unscrew locking sc-
rew
Tilt camera into desi-
red position
Screw on locking sc-
rew
Power Supply:
PoE (Standard IEEE 802.3af, Class 0) or external supply (22–24 VAC or 20–35 VDC)
Power supply must be connected to camera PCB
When using analogue video an isolated power supply unit is mandatory
Ethernet Connection: The RJ 45 socket on the camera PCB must be used!
Cleaning Instructions: The station may only be cleaned with cleaning agents for
stainless steel – in NO case with cleaning agents containing chlorine or isopropanol!
Snap ferrite: The snap ferrite in the extent of supply has to be snapped on to the outgoing
cables from the camera PCB (Ethernet, power supply).
AC/DC–
AC/DC+
20 V DC – 35 V DC
22 V AC – 24 V AC
Switch for analogue
video signal:
Locking screw
Analogue
video signal
UPLINK
DOWNLINK
for fixing
cable straps
OUT 1
OUT 1
Slots for inserting
External
button labels
loudspeaker module
OUT 2
Handset:
OUT 2
Microphone
Loudspeaker
Measurements / Button Configuration
Front panel thickness: 3 mm (0.12") / Measurements in mm (inch), not scale!
PAL
NTSC
MUTE
GND
LINE–
LINE+
Attention
Observe the precautions for handling of electrostatic sensitive devices!
The device may be only installed by authorised engineers.
FA: Microphone adjusted ex works. If necessary the microphone sensitivity should be
set via CCT/CCT 800 by an experienced technician.
For technical data and configuration see the respective datasheet.
For the current software please visit: www.software-manuals.com
Manufacturer's reference
Type: D-BZ-WS20xVICM, Version: 1.3/1112
160 (6.3)
140 (5.5)
Dialling in the Intercom Server:
*
1-button version (WS 201x)
**
2-button version (WS 202x)
***
3-button version (WS 203x)
This equipment fulfils the requirements of the EU standard 2014/30/EU.
Therefore this equipment is CE-labelled. Please keep this description in safe
custody!
Button 5
Button 0
***
*
**
Button 4
