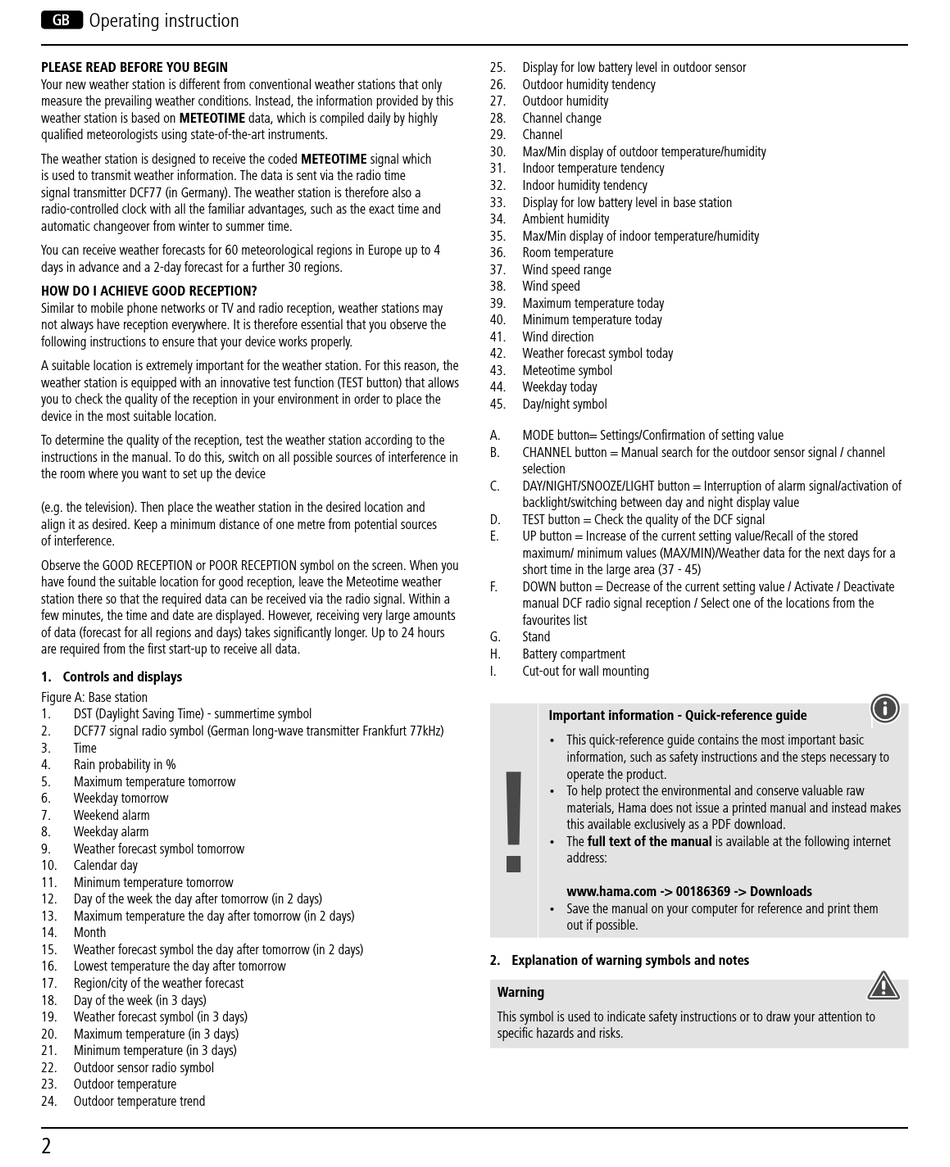

G Operating instruction
PLEASE READ BEFORE YOU BEGIN
Your new weather station is different from conventional weather stations that only
measure the prevailing weather conditions. Instead, the information provided by this
weather station is based on METEOTIME data, which is compiled daily by highly
quali ed meteorologists using state-of-the-art instruments.
The weather station is designed to receive the coded METEOTIME signal which
is used to transmit weather information. The data is sent via the radio time
signal transmitter DCF77 (in Germany). The weather station is therefore also a
radio-controlled clock with all the familiar advantages, such as the exact time and
automatic changeover from winter to summer time.
You can receive weather forecasts for 60 meteorological regions in Europe up to 4
days in advance and a 2-day forecast for a further 30 regions.
HOW DO I ACHIEVE GOOD RECEPTION?
Similar to mobile phone networks or TV and radio reception, weather stations may
not always have reception everywhere. It is therefore essential that you observe the
following instructions to ensure that your device works properly.
A suitable location is extremely important for the weather station. For this reason, the
weather station is equipped with an innovative test function (TEST button) that allows
you to check the quality of the reception in your environment in order to place the
device in the most suitable location.
To determine the quality of the reception, test the weather station according to the
instructions in the manual. To do this, switch on all possible sources of interference in
the room where you want to set up the device
(e.g. the television). Then place the weather station in the desired location and
align it as desired. Keep a minimum distance of one metre from potential sources
of interference.
Observe the GOOD RECEPTION or POOR RECEPTION symbol on the screen. When you
have found the suitable location for good reception, leave the Meteotime weather
station there so that the required data can be received via the radio signal. Within a
few minutes, the time and date are displayed. However, receiving very large amounts
of data (forecast for all regions and days) takes signi cantly longer. Up to 24 hours
are required from the rst start-up to receive all data.

1. Controls and displays

Figure A: Base station
1. DST (Daylight Saving Time) - summertime symbol
2. DCF77 signal radio symbol (German long-wave transmitter Frankfurt 77kHz)
3. Time
4. Rain probability in %
5. Maximum temperature tomorrow
6. Weekday tomorrow
7. Weekend alarm
8. Weekday alarm
9. Weather forecast symbol tomorrow
10. Calendar day
11. Minimum temperature tomorrow
12. Day of the week the day after tomorrow (in 2 days)
13. Maximum temperature the day after tomorrow (in 2 days)
14. Month
15. Weather forecast symbol the day after tomorrow (in 2 days)
16. Lowest temperature the day after tomorrow
17. Region/city of the weather forecast
18. Day of the week (in 3 days)
19. Weather forecast symbol (in 3 days)
20. Maximum temperature (in 3 days)
21. Minimum temperature (in 3 days)
22. Outdoor sensor radio symbol
23. Outdoor temperature
24. Outdoor temperature trend
2
25. Display for low battery level in outdoor sensor
26. Outdoor humidity tendency
27. Outdoor humidity
28. Channel change
29. Channel
30. Max/Min display of outdoor temperature/humidity
31. Indoor temperature tendency
32. Indoor humidity tendency
33. Display for low battery level in base station
34. Ambient humidity
35. Max/Min display of indoor temperature/humidity
36. Room temperature
37. Wind speed range
38. Wind speed
39. Maximum temperature today
40. Minimum temperature today
41. Wind direction
42. Weather forecast symbol today
43. Meteotime symbol
44. Weekday today
45. Day/night symbol
A. MODE button= Settings/Con rmation of setting value
B. CHANNEL button = Manual search for the outdoor sensor signal / channel
selection
C. DAY/NIGHT/SNOOZE/LIGHT button = Interruption of alarm signal/activation of
backlight/switching between day and night display value
D. TEST button = Check the quality of the DCF signal
E. UP button = Increase of the current setting value/Recall of the stored
maximum/ minimum values (MAX/MIN)/Weather data for the next days for a
short time in the large area (37 - 45)
F. DOWN button = Decrease of the current setting value / Activate / Deactivate
manual DCF radio signal reception / Select one of the locations from the
favourites list
G. Stand
H. Battery compartment
I. Cut-out for wall mounting
Important information - Quick-reference guide
!
• This quick-reference guide contains the most important basic
information, such as safety instructions and the steps necessary to
operate the product.
• To help protect the environmental and conserve valuable raw
materials, Hama does not issue a printed manual and instead makes
this available exclusively as a PDF download.
• The full text of the manual is available at the following internet
address:
www.hama.com -> 00186369 -> Downloads
• Save the manual on your computer for reference and print them
out if possible.
2. Explanation of warning symbols and notes
Warning
This symbol is used to indicate safety instructions or to draw your attention to
speci c hazards and risks.
