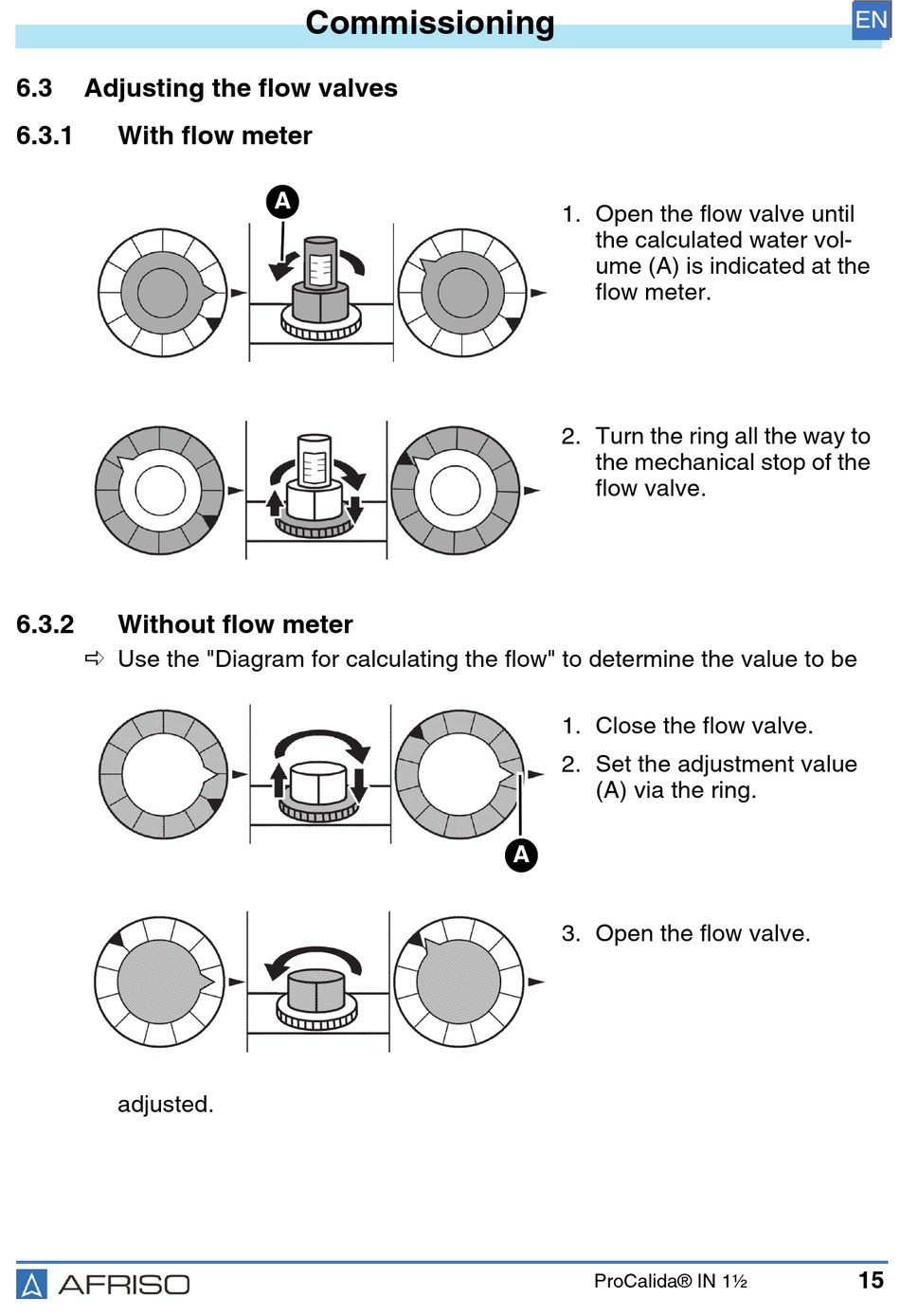

6.3 Adjusting the flow valves
6.3.1 With flow meter
6.3.2 Without flow meter
 Use the "Diagram for calculating the flow"
adjusted.
Commissioning
A
1. Open the flow valve until
the calculated water vol-
ume (A) is indicated at the
flow meter.
2. Turn the ring all the way to
the mechanical stop of the
flow valve.
to determine the value to be
1. Close the flow valve.
2. Set the adjustment value
(A) via the ring.
A
3. Open the flow valve.
ProCalida® IN 1½
EN
15
