Operating instructions -- PowerMax cam unit PMO
PowerMax cam unit SN5650-PMO-0330 — SN5650-PMO-1200

11.1 Gas springs which can optionally be received

Additional gas springs for the assembly in the driver can optionally be received to increase the stripper
forces.
At the cam width 460 mm, 1 gas spring with fastener is mounted in the driver, therefore this gas spring
is named SN5652-PMO-type 1.
Concerning the cam widths 580 and 700 mm, 2 gas springs SN5652-PMO-type 2 can be mounted and for
the widths 850 and 1000 mm the stripper forces can be increased by 3 gas springs SN5652-PMO-type 3.
Concerning the cam width 1200 mm the stripper forces can be increased by 4 gas springs SN5652-PMO-
type 4.
Please take the corresponding power indications from the catalogue. The PowerMax cams are already
prepared for the later mounting.

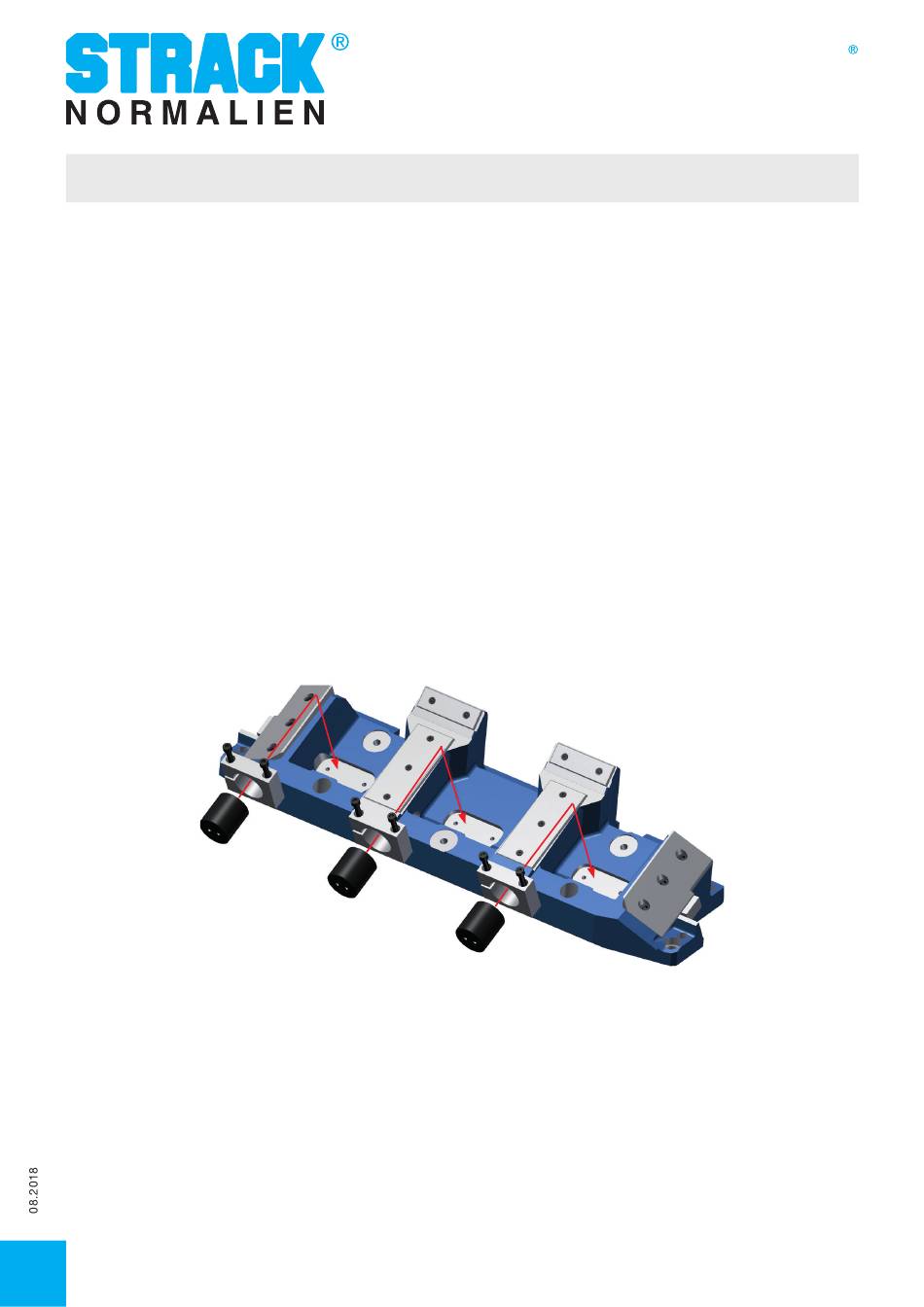

Screw the fastener with the gas springs on the described position. The gas spring has to positioned in such
a way that the piston rod shows in the direction of the cam slide.
Attention: Before tightening the screws, control that the bottom of the gas spring touches the machined
cast face.
26
