PowerMax cam unit SN5650-PMU-0065 — SN5650-PMU-0260

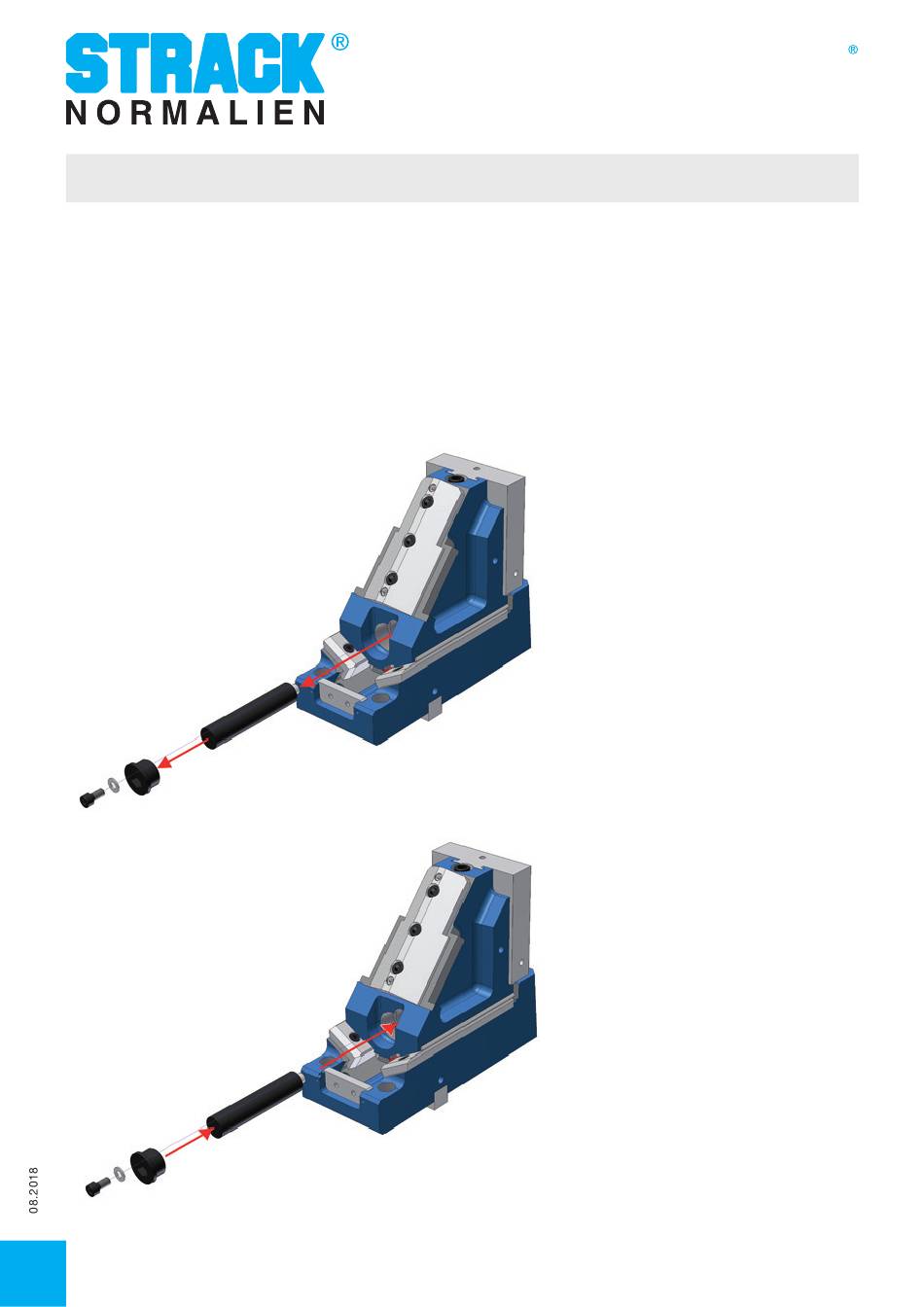

11. Dismounting / Mounting of the gas springs

To remove the gas spring out of the cam, at first the safety bolt and the closing plug have to be
dismounted.
The mounting is effected in the reverse order. For this the cam slide has to be pushed back to be able
to turn the plug in. Afterwards the plug has to be secured with the safety bolt and the washer.
picture 1
2
1
picture 2
2
3
22
STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de
3
1
PowerMax
I
Operating instructions -- PowerMax cam unit PMU
1. Removing of the gas springs
2. Mounting of the gas springs
