Operating instructions -- PowerMax cam unit PMO
PowerMax cam unit SN5650-PMO-0330 — SN5650-PMO-1200
9.1 Mounting of the mounting plate at cam widths 0330-1200
(only Premium)
Step 1
Before pushing the mounting plate back in the groove guidance it is absolutely necessary to clean the stop
lug (AN) and the t-nut guidance of both components, in order that the bearing surface for the guide strips
builds a level during the assembly. The mounting plate is constructed in such a manner that the surface
stands about 0.01 till 0.02 back behind the guide strip bearings.
Step 2
Only mount the guide strips at the provided assembly site.
Please that care the screws are secured with the screw locking adhesive Z9093.

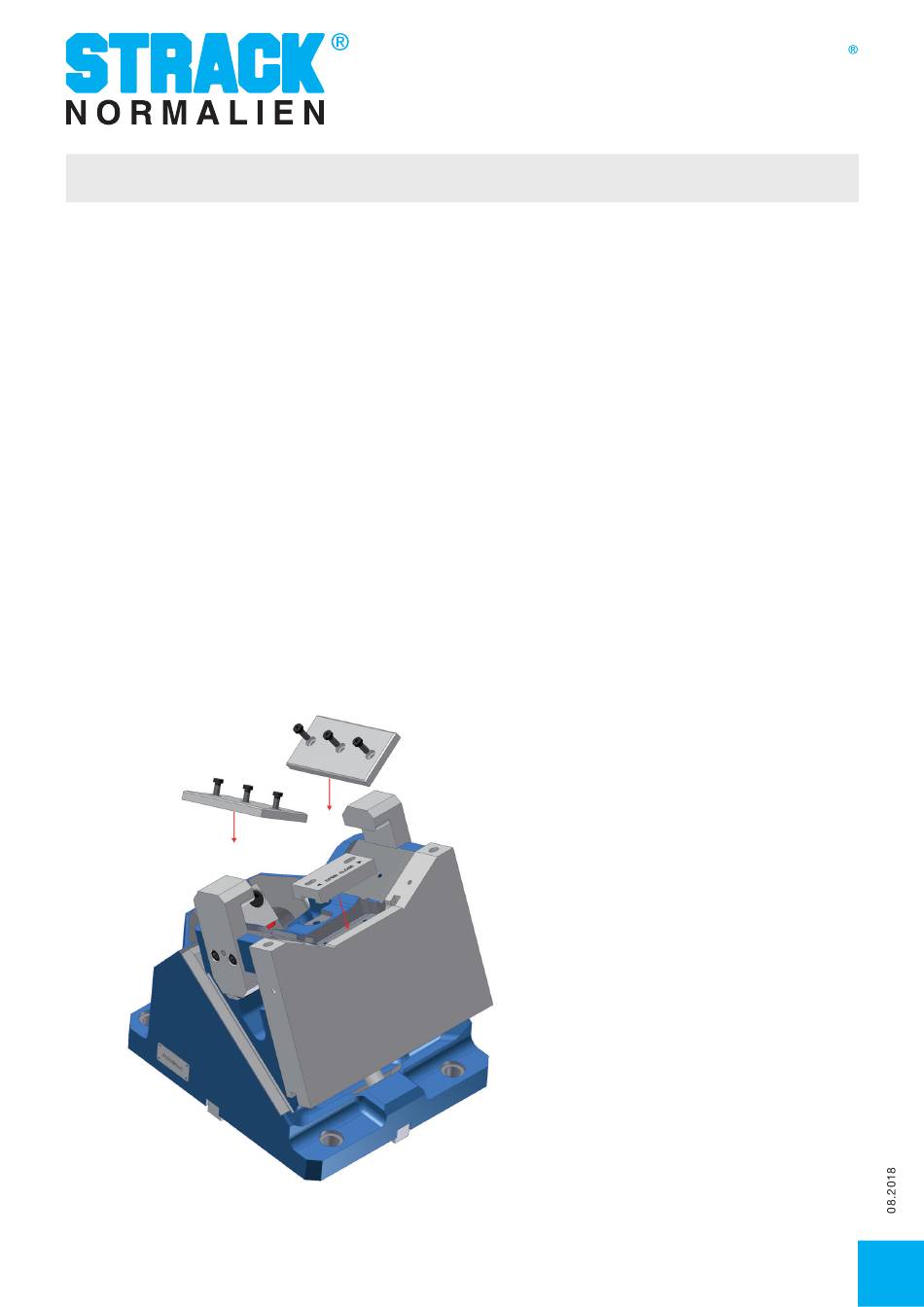

picture 1
15
