Operating instructions -- PowerMax cam unit PMO

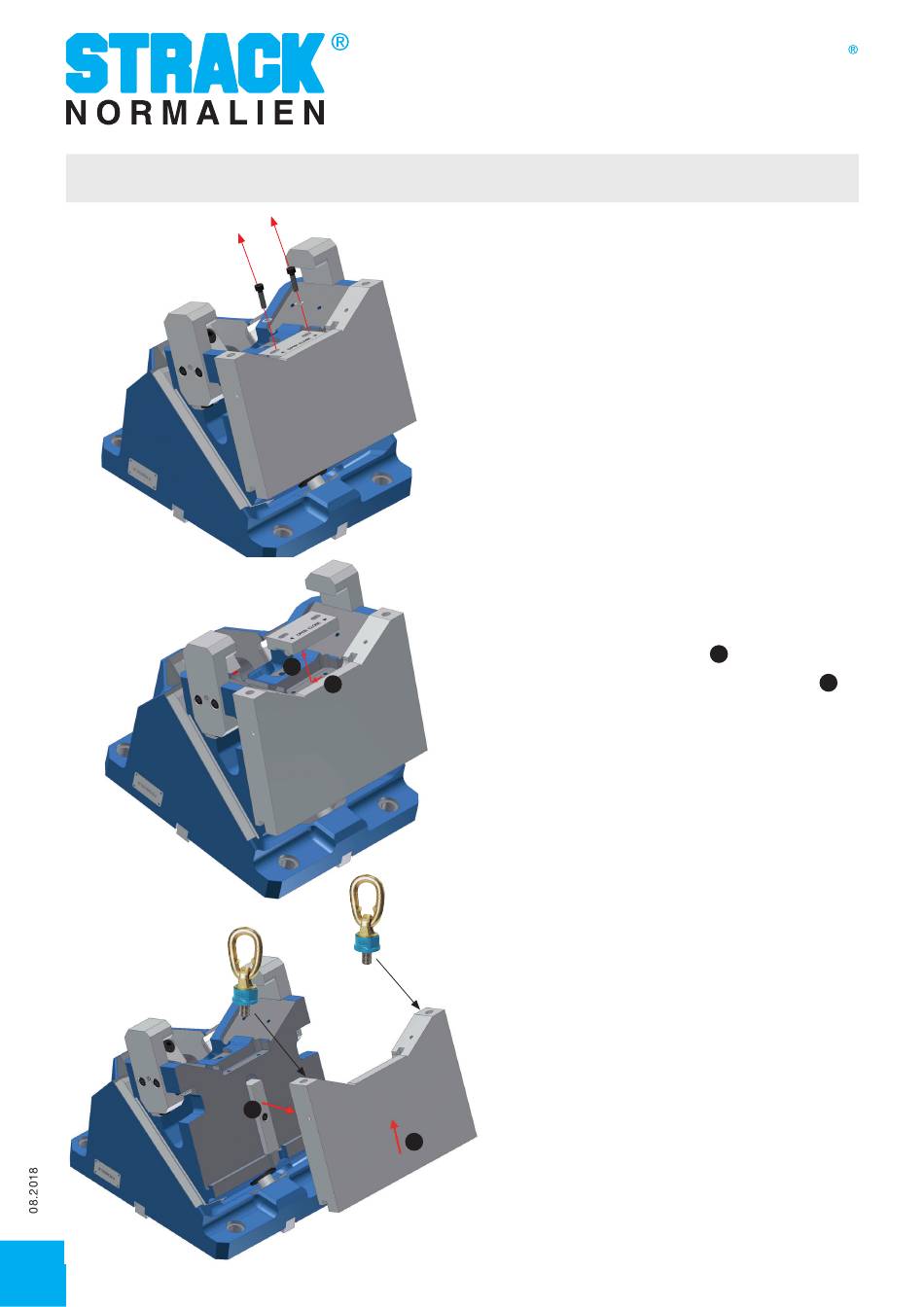

Step 2
For dismounting the mounting plate please
remove at first the screws with the washers
(picture 4).
Step 3
To loose the locking push the clamp respectively
the clamps in direction OPEN.
Then the clamps can be removed (picture 5).
Step 4
Screw the safety ring bolt (SN1594) in the plate
to be able to lift it with a crane.
Lift the mounting plate at first out of the groove
nut (picture 2). The fit was produced with high
precision and a close tolerance. If necessary beat
with a plastic hammer in the front of the plate
and avoid a cant of the mounting plate. As soon
as the mounting plate left the groove, push the
plate in front (picture 6).
