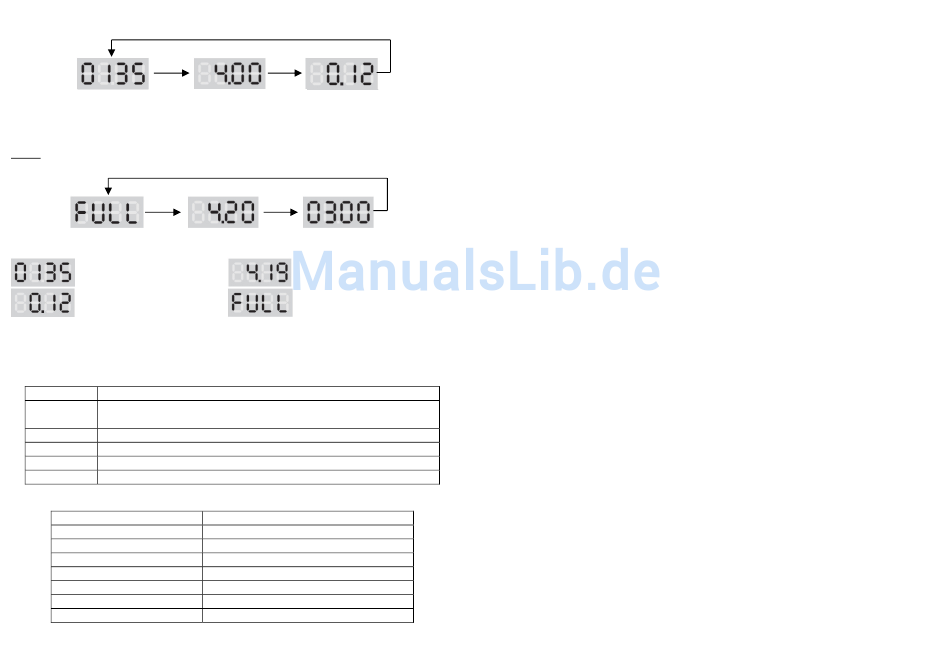

6. During the charging process, the digital LED will display the charging capacity,
the battery voltage and the charging current circularly.
Charging capacity (mAh) Battery voltage (V) Charging current (A)
7. When the charging process is finished, the status LED turn green and blinks 5
times with an audible sound. The status LED stays green and the digital LED will
display "FULL".
Note: At this time, if you press the Start/Stop button once the digital LED will
display "FULL", the battery voltage and the battery capacity circularly.
Info Battery voltage (V) Charging current (mAh
Digital LED indicator
Charging capacity (mAh)
Charging current (A)
(0.1-1.0 A)
4. Error messages
When there is an error, the LED will blink red twice per second with an audible
sound. After ten times of blinking, the red LED will stay on and the digital LED will
display the error code.
Error code Error Message
-11- Dead cell or the voltage of the cell is either too high or too low for
safe charging.
-22- The battery polarity is connected incorrectly.
-33- The battery connection is wrong.
-44- Short circuit or over current in the battery.
-55- The DC input voltage is either too high or too low.
5. Specifikation
AC / DC Input
Charge circuit power
Charge current range
Battery type
Battery connector type
Working temperature
Net weight
Dimension
Battery voltage (V)
Status: Charging process
finished
100-240V / 11-15V
4x 4W ± 10%
0,1-1,0A ± 10%
4x 1 cell LiPo
E-flite; Nine Eagles, Walkera, MX
0-50°C
280 g
132x100x50mm
- 3 -
