HITEC X4 MICRO Bedienungsanleitung Seite 3

Instruction Manual
1. Introduction
Thank you for your choice of the HiTEC multicharger X4 MICRO. This unit is
simple to use but it´s operation does require some knowledge on the part of the
user. Please read this entire operating manual completely and attentively before
using this product, as it covers a wide range of information on operating and
safety.
The HITEC multicharger X4 MICRO employs the circuit that features four totally
independent but identical power outputs which are powered 4W each. It is
designed for charging single cell LiPo. Insert the battery lead to the right
connector in each port, the charger will charge 4 batteries at the same time. And
the charging current can be adjusted from 0.1 to 1.0 A by dial, the charging
capacity and cell voltage can be displayed in the digital LED indicator.
# 114 123 (13-11-11/JES) Errors and omissions excepted © MULTIPLEX
Version 1.0
- 1 -
2. Features
- Four independent ports can be used at the same time
- Four different kinds of battery connectors at each port
- Four independent functioning charging circuits
- Four independent digital LED Displays
- LED and audible sound indicate charging status
- Adjustable charging current from 0.1 to 1.0A
- AC/DC Dual Power Input
- Efficient ventilation
- Maximum protection: short circuit protection; over current protection; battery
reverse polarity protection and DC input voltage protection

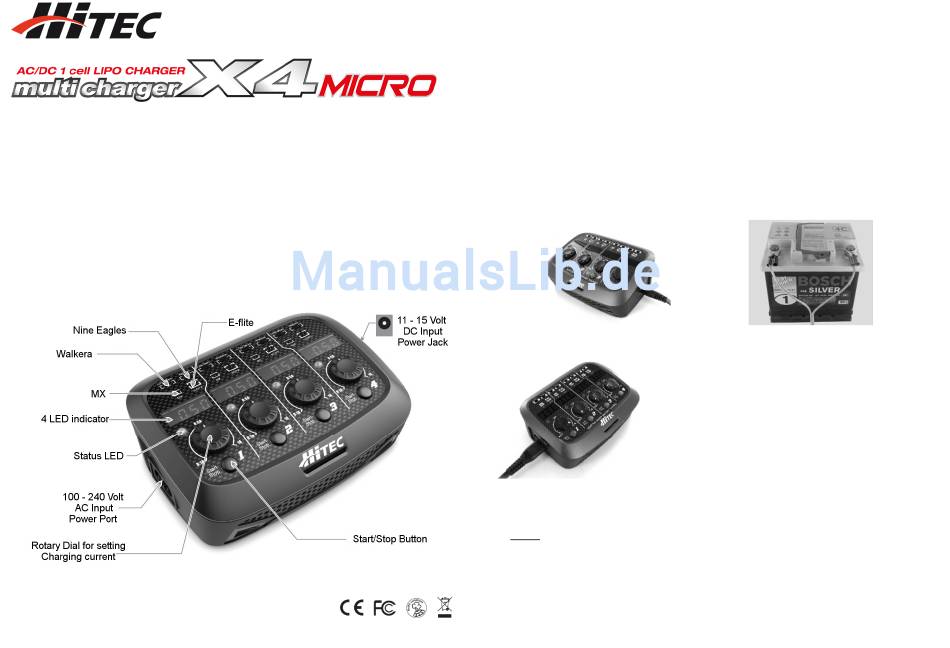

3. Charging
When using 12V lead acid battery
Using DC cable attaching to car battery
When using AC power source
1. Insert the AC power cord into the charger.
2. Insert the AC power cord into a wall socket (100-
240V).
3. When charger is powered on, 4 status LEDs will
blink once with one beep and all digital LED
indicators will display 8888. After that, 4 LEDs will
extinguish and all digital Displays will show the
charging current which indicates the charger is
ready to charge.
Caution: Each charging port can only charge
one kind of battery at the same time.
Operating
1. Insert the battery lead to the right battery connector.
Note: Please make sure insert the battery polarities correctly.
2. Select the charging current (0.1-1.0 A) by rotating the dial.
3. Press and hold Start/Stop button for 3 seconds to start the charging process.
The related status LED will turn red with long beep.
4. The LED will stay red during the whole charging process.
5. Press and hold Start/Stop button for 3 seconds during the charging process to
stop charging.
- 2 -
