2.2 Concrete wall mounting

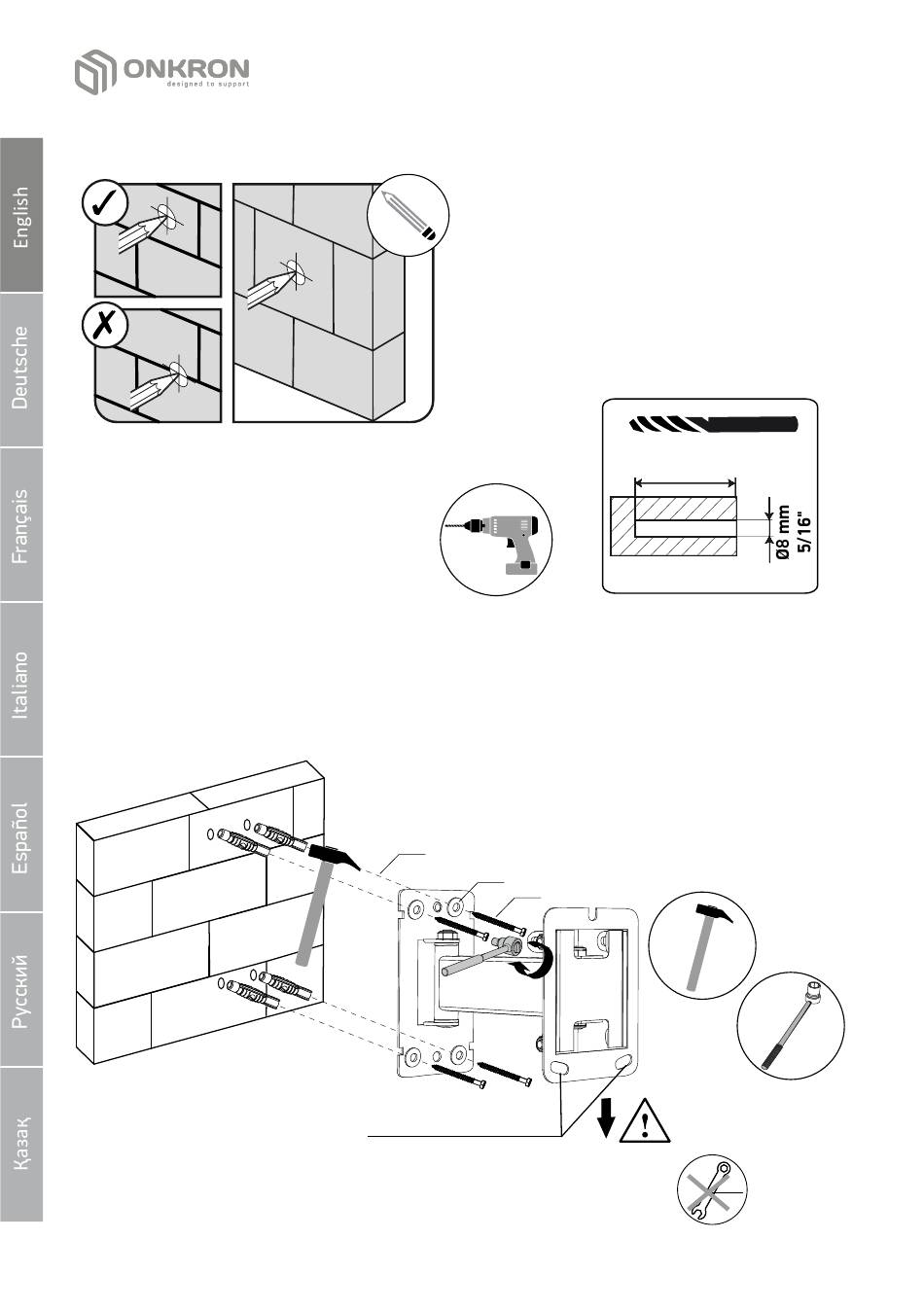

• Drill holes using a Ø 8 mm (5/16") bit at
depth minimum 1.97" (50mm).
• Insert dowels (B) into the holes. Make sure that dowels are
completely in the wall. Tap them with a hammer.
• Put the mount at the wall; make sure closed mounting grooves are
located at the bottom.
IMPORTANT: Do not use the wrench (K) from the kit!
6
•
•
• Install the base of the mount to
the wall using screws М6х50
(A) and washers (C).
B
C
A
Сlosed mounting
grooves
Put the base of the mount
in a desired position and
m a r k f o u r h o l e s f o r
screws.
Put the mount aside.
min 50 mm
(1.97")
Bottom of the mount
K
