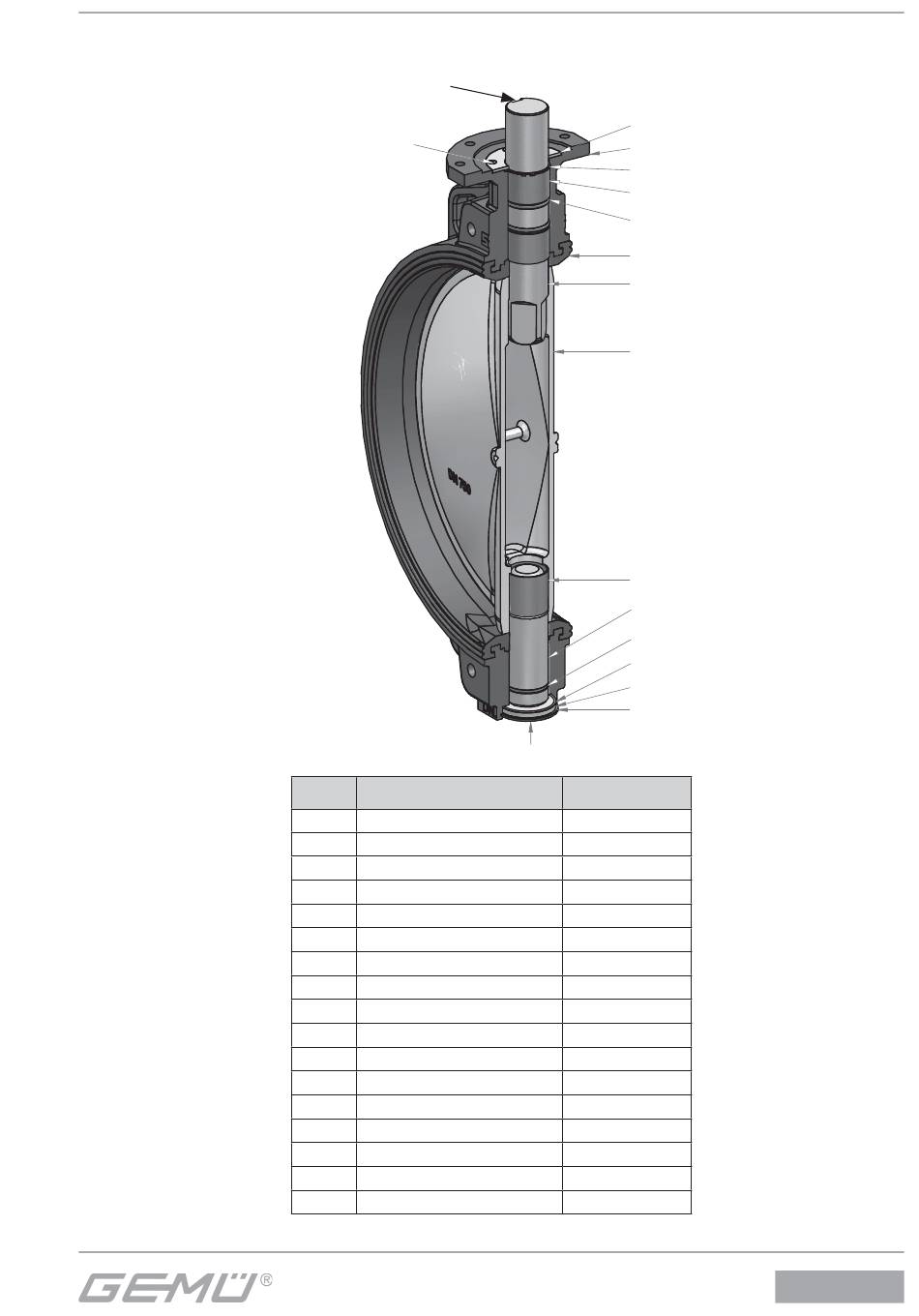

DN 600 - 1400 Wafer
Single keyway
(position of butterfl y disc)
DN 700 - 1200
16
Item Designation
1 Body
2 Bush
3 O-ring
4 Operator shaft
5 Seat (liner)
6 Butterfl y disc
7 Lower axis
8 Circlip
9 Washer
10 Plug
11 Circlip
12 O-ring
13 O-ring
14 Bush
*15 Keyway
16 Screw
17 Screw
* In DN 600 item 15 does not exist (square drive)
59 / 72
8
1
9
2
3
5
4
6
14
7
13
11
10
12
17
Pieces
1
2
1
1
1
1
1
1
1
1
1
1
1
2/4
4
1
D480
