Installation instructions, only for experts

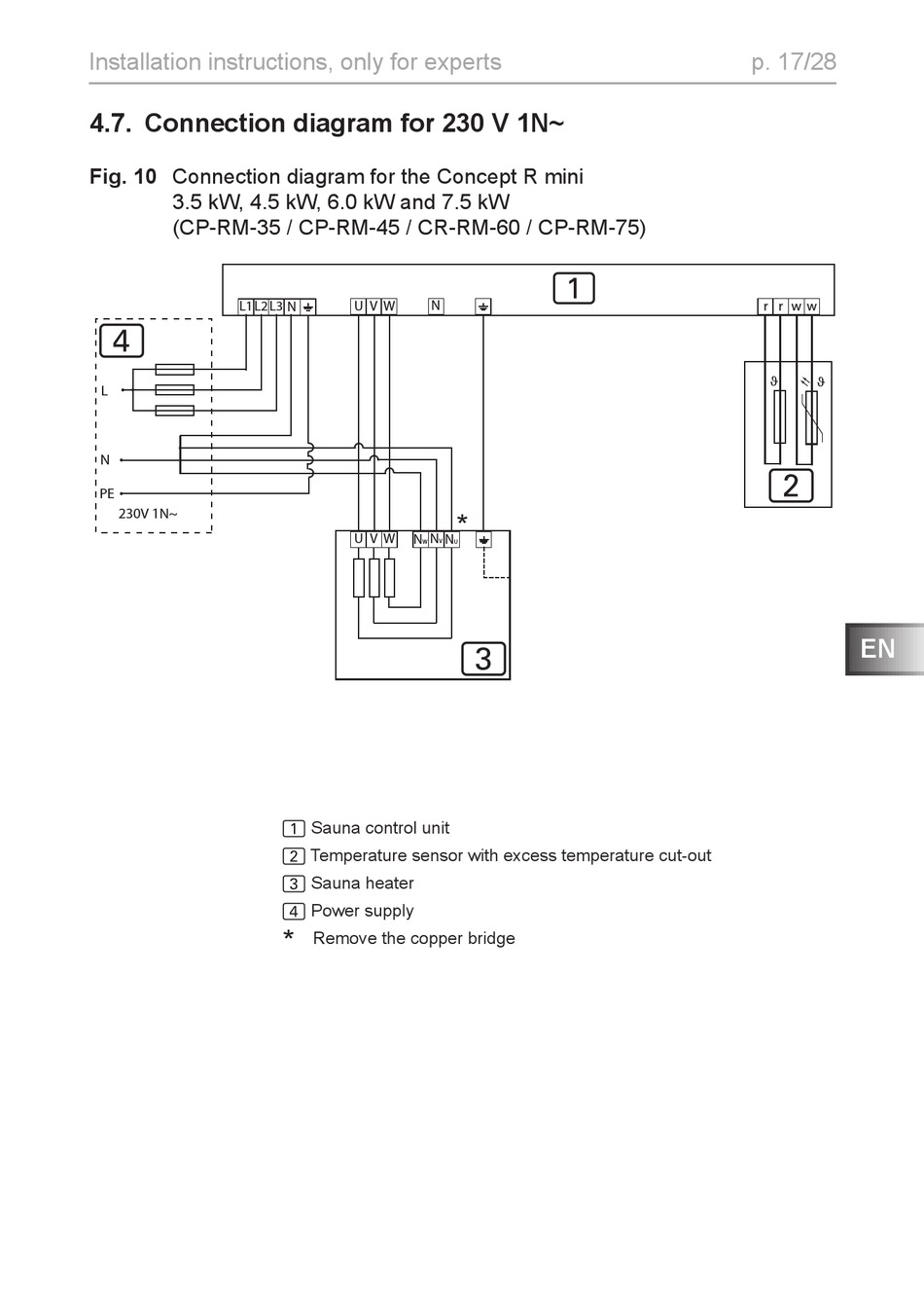

4.7. Connection diagram for 230 V 1N~

Fig. 10 Connection diagram for the Concept R mini
3.5 kW, 4.5 kW, 6.0 kW and 7.5 kW
(CP-RM-35 / CP-RM-45 / CR-RM-60 / CP-RM-75)
L1 L2
4
L
N
PE
230V 1N~
U V W N
L3 N
N
U V W N
V
W
1 Sauna control unit
2 Temperature sensor with excess temperature cut-out
3 Sauna heater
4 Power supply
*
Remove the copper bridge
1
*
N
U
3
p. 17/28
r r w w
ϑ ϑ
2
EN
