Greenlinkbox SLT.22

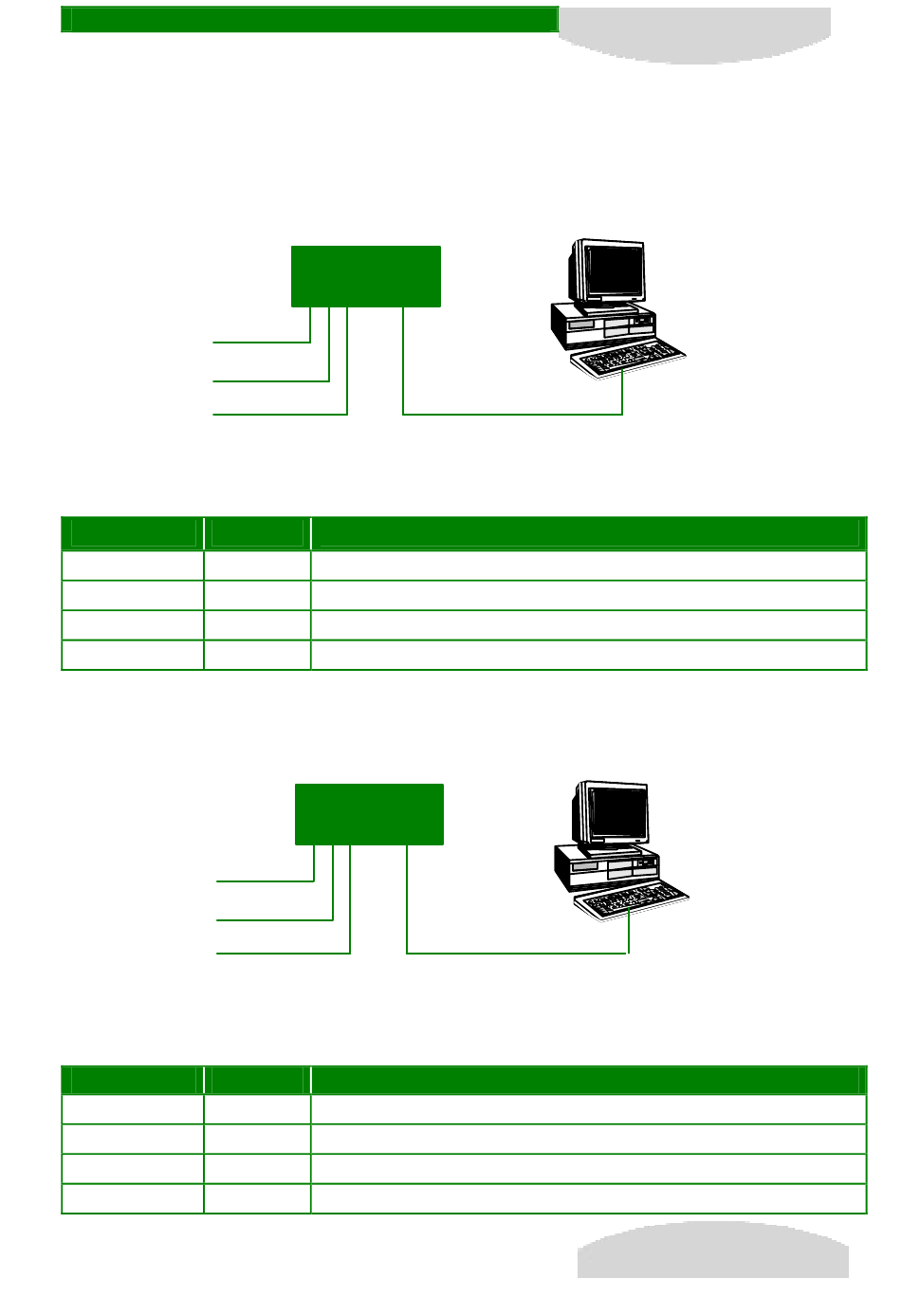

2.8 Installation examples common situations
2.8.1 Example 1, Greenlinkbox SLT.22 via USB to PC
FNet
FLoop
Fig. 16: Example 1, Greenlinkbox SLT.22 via USB to a PC
Dipswitch Status
1 ON/ OFF Terminal resistor depends on position on FNet
2 OFF
3 OFF
4 ON
2.8.2 Example 2, Greenlinkbox SLT.22 via RS-232 to PC
FNet
FLoop
Fig. 17: Example 2, Greenlinkbox SLT.22 via RS-232 to PC
Dipswitch Status
1 ON/ OFF Terminal resistor depends on position on FNet
2 OFF
3 OFF
4 OFF
Greenlinkbox
SLT.22
Description
Communication via USB
Greenlinkbox
SLT.22
RS-232
Description
Communication via RS-232

2.8 Installation examples

USB
