2.7 GreenLinkBox
Greenlinkbox SLT.22
connections LEDs and
selections
2.7.1 Power supply adapter
The power supply adapter can be connected to connection point 1. Switch the
power supply on, after all connections have been made. Follow the
instructions from chapter 7 First start-up.
2.7.2 LED diagnosis
LEDs indicate the Greenlinkbox SLT.22 status in relation to correct
connections and proper functioning. For details, see chapter 8 Functioning and
diagnosis.
2.7.3 FLoop and FNet connection
The Greenlinkbox SLT.22 supports FLoop and FNet communication. FLoop
and FNet can be connected to a divisible connector and attached on both sides
of the connection using screws.

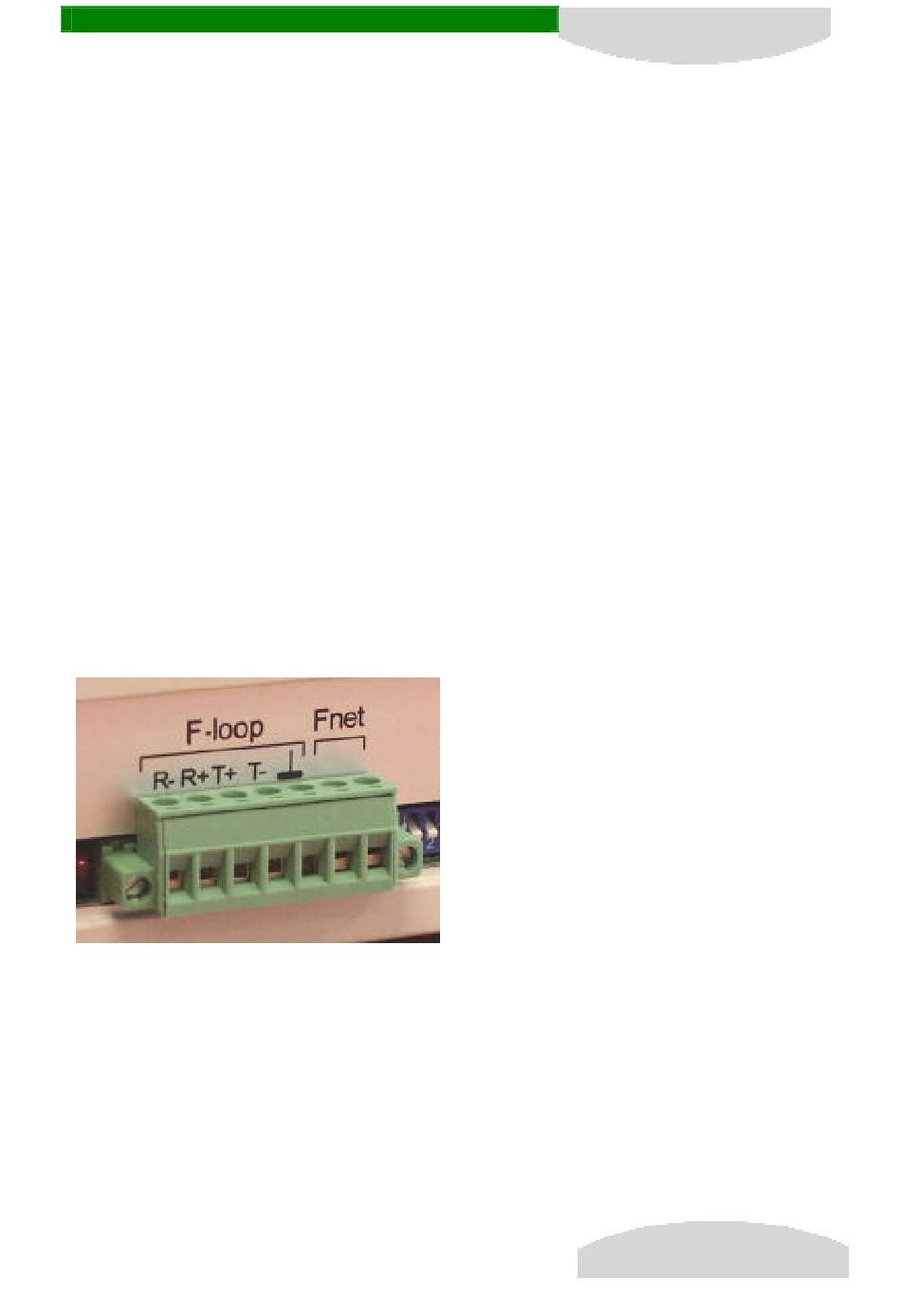

Fig. 14: FLoop and FNet connections
GB-7
