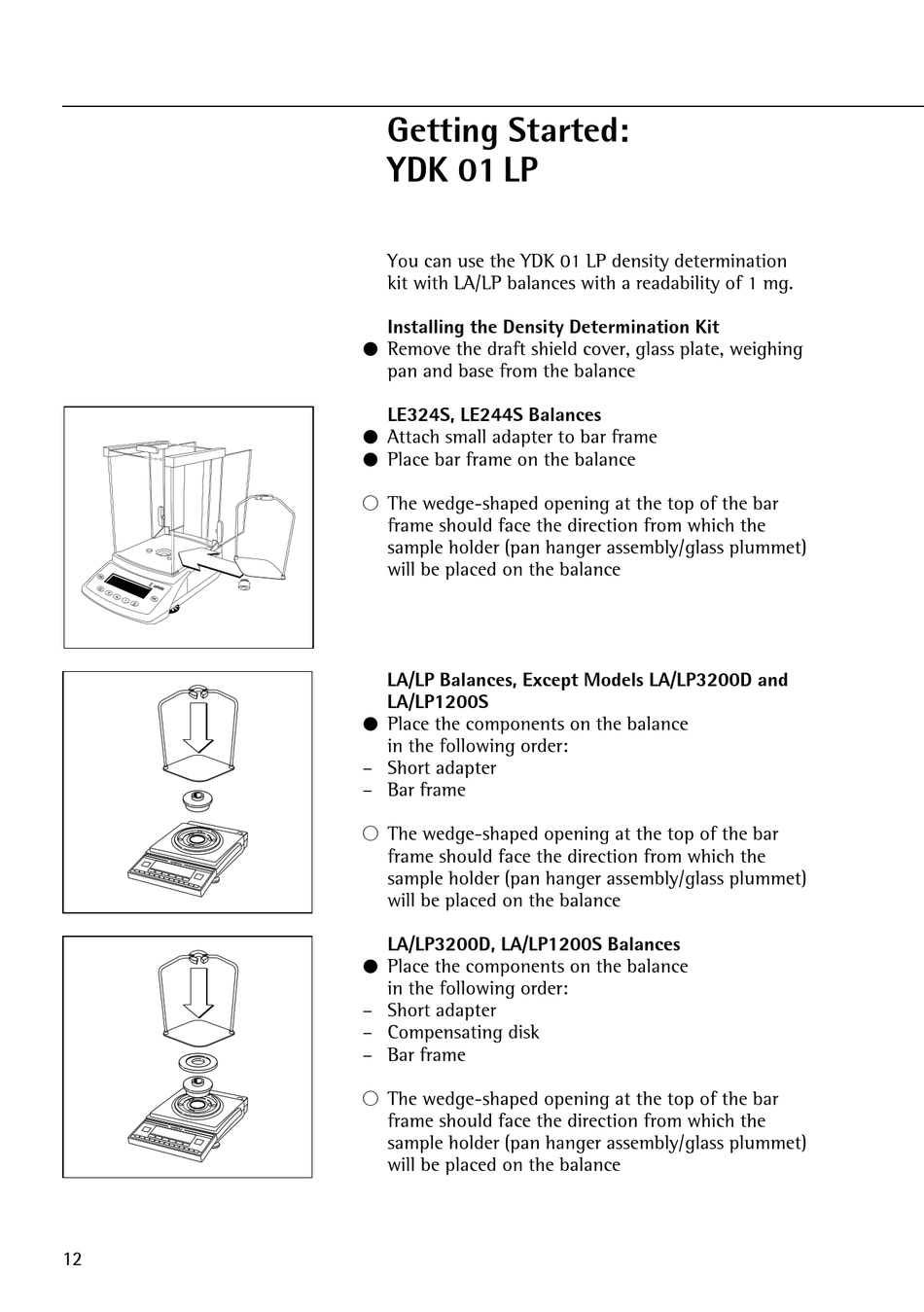

Getting Started:
YDK 01 LP
You can use the YDK 01 LP density determination
kit with LA/LP balances with a readability of 1 mg.
Installing the Density Determination Kit
§ Remove the draft shield cover, glass plate, weighing
pan and base from the balance
LE324S, LE244S Balances
§ Attach small adapter to bar frame
§ Place bar frame on the balance
$ The wedge-shaped opening at the top of the bar
frame should face the direction from which the
sample holder (pan hanger assembly/glass plummet)
will be placed on the balance
LA/LP Balances, Except Models LA/LP3200D and
LA/LP1200S
§ Place the components on the balance
in the following order:
– Short adapter
– Bar frame
$ The wedge-shaped opening at the top of the bar
frame should face the direction from which the
sample holder (pan hanger assembly/glass plummet)
will be placed on the balance
LA/LP3200D, LA/LP1200S Balances
§ Place the components on the balance
in the following order:
– Short adapter
– Compensating disk
– Bar frame
$ The wedge-shaped opening at the top of the bar
frame should face the direction from which the
sample holder (pan hanger assembly/glass plummet)
will be placed on the balance
